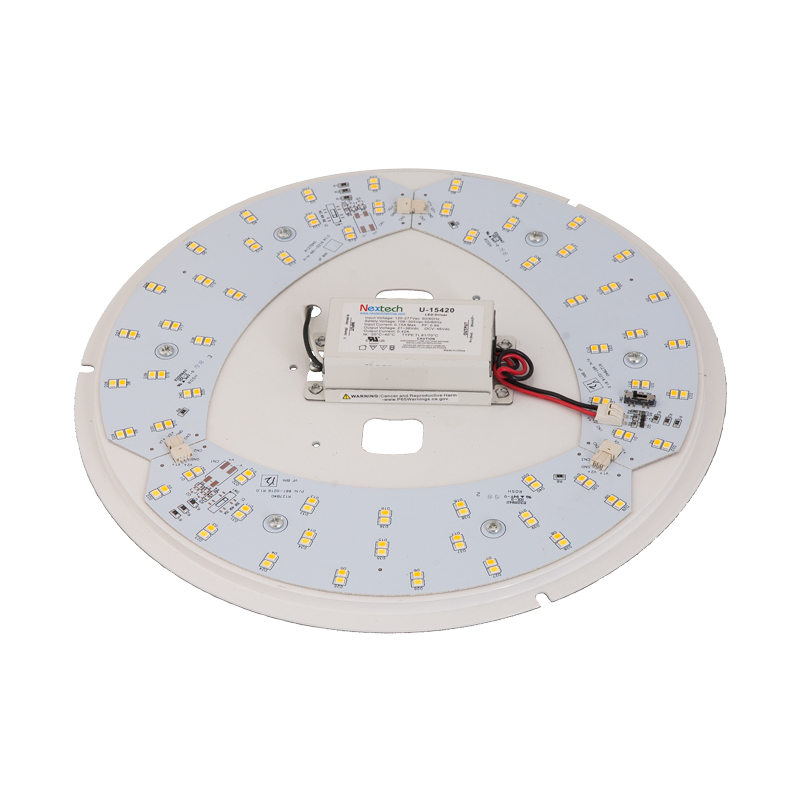

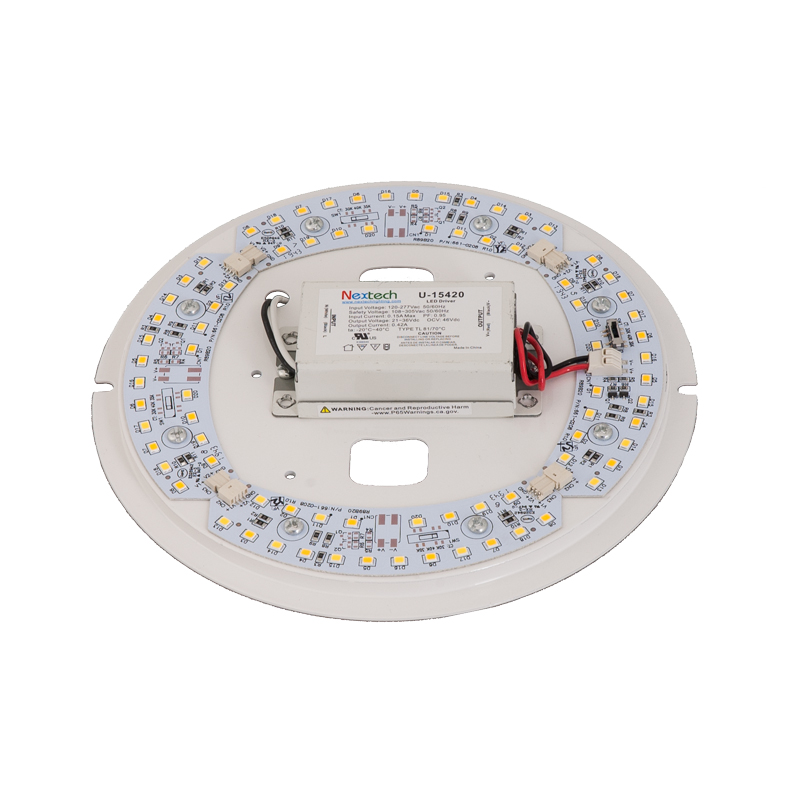

LED Tubes Bulbs & Light Engine / LED DC Light Engine (Round) 2868648
SKU : LOG2868648
Features :
- Suitable for Re-trofit Most of Ceiling Fixtures and Wall Sconces
- Easy Installation
- Wattage : 12W – 36W
- Class 2 Dimming Driver or None Dimming Driver
- Dimming Option (-xx):
- UN 120V – 277V None Dimming
- SD 120V Triac Dimming
- UD 120V -277V, 0-10V Dimming
- Adjustable Multiple Color Temperature – 3000K/3500K/4000K
- 5 Years Limited Warrant
7.9" OD Circular Light Engine
Model : 2868648-12W
- Driver Input Voltage : 120V or 120V ~ 277V
- Wattage : 12W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 1500
- Dimming Option (-xx) : UN, SD
- Dimension (ODx H) : 7.9" x 1.5"
Model : 2868648-15W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 15W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 1800
- Dimming Option (-xx) : UN, SD
- Dimension (ODx H) : 7.9" x 1.5"
Model : 2868648-18W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 18W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 2100
- Dimming Option (-xx) : UN, SD, UD
- Dimension (ODx H) : 7.9" x 1.5"
11.0" OD Circular Light EngineModel : 2868648-14W
- Driver Input Voltage : 120V or 120V ~ 277V
- Wattage : 14W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 1800
- Dimming Option (-xx) : UN, SD
- Dimension (ODx H) : 11.0" x 1.5"
Model : 2868648-17W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 17W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 2100
- Dimming Option (-xx) : UN, SD, UD
- Dimension (ODx H) : 11.0" x 1.5"
Model : 2868648-25W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 25W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 2900
- Dimming Option (-xx) : UN, UD
- Dimension (ODx H) : 11.0" x 1.5"
13.5" OD Circular Light EngineModel : 2868648-24W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 24W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 3100
- Dimming Option (-xx) : UN, UD
- Dimension (ODx H) : 13.5" x 1.5"
Model : 2868648-28W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 28W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 3550
- Dimming Option (-xx) : UN, UD
- Dimension (ODx H) : 13.5" x 1.5"
Model : 2868648-36W
- Driver Input Voltage : 120V ~ 277V
- Wattage : 36W
- CCT : 3000K, 3500K, 4000K
- Lumen (nom) : 4300
- Dimming Option (-xx) : UN, UD
- Dimension (ODx H) : 13.5" x 1.5"
