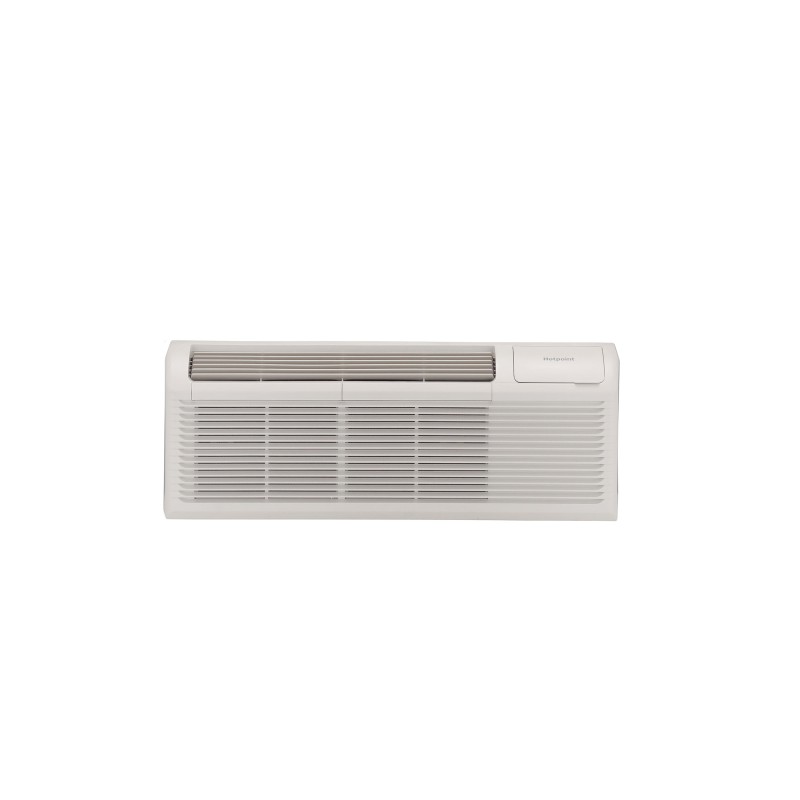

Hotpoint PTAC with Electric Heat 230/208V, 15amp

FEATURES

• Control Type : Electronic
• Product Type : Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type : R32
• Temperature Range : 62 - 80 F

Fan Speed Selections :

• 3 Cooling
• 3 Fan Only
• 3 Heating

Unit Features :

• Auto Power Recovery
• Automatic Indoor Frost Control
• Central Desk Control Compatibility
• Freeze Sentinel
• Power Cord (LCDI) included
• Remote Thermostat Compatibility

Auto Power Recovery : Yes
Chassis Type : Slide-In
Heat - Cool : Yes
Manual Vent Control : Hidden
Outdoor Vent / Exhaust : Yes
Rotary Compressor : Yes

Venting Features :

• Concealed Manual Vent Control
• Vent Air Filter

"SmartFan" Fan Cycle : Yes
Discharge Grille : 2-position
Fan Motor : 2
Heating System : Electric Resistance


CAPACITY

• CFM Indoor Fan High : 334
• Cooling EER (BTUH / Watt) : 11.9
• CFM Indoor Fan Low : 236
• CFM Indoor Fan Medium : 339
• Cooling BTUH (MAX) : 7200.0 Btu
• Cooling BTUH (MIN) : 7000.0 Btu

APPEARANCE
Installation :

• Through-the-Wall
• Color Appearance : White

WEIGHTS & DIMENSIONS

• Overall Depth : 20 9/10 in
• Overall Height : 16 in
• Overall Width : 42 2/5 in
• Approximate Shipping Weight : 112 2/5 lb
• Net Weight : 101 3/5 lb

POWER / RATINGS

• Heating - Electric - Heater Watts : 2535/2080
• Heating - Electric - Heater Amps : 10.8/9.8
• Cooling - Watts : 605/585
• Cooling - Amperes : 2.45/2.6
• Voltage (MAX) : 230.0 V
• Voltage (MIN) : 208.0 V

CLAIMS & CERTIFICATIONS

• 208.0 V

WARRANTY
Labor Warranty :

• Limited 1-year entire appliance
• Limited 5-year sealed refrigerating system

Parts Warranty :

• Limited 1-year entire appliance
• Limited 5-year sealed refrigerating system

Warranty Notes : See written warranty for full details
