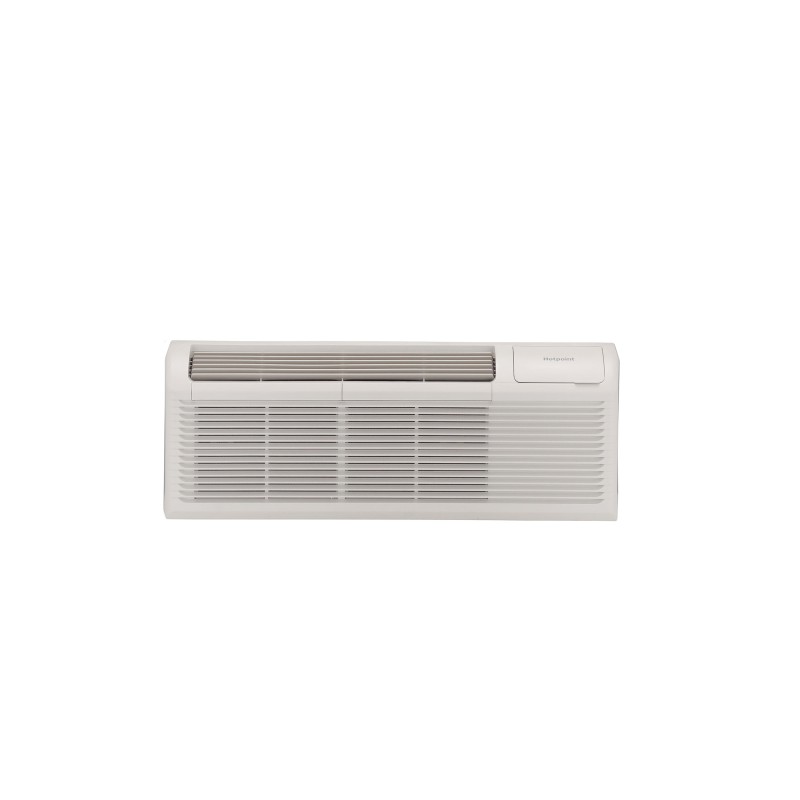

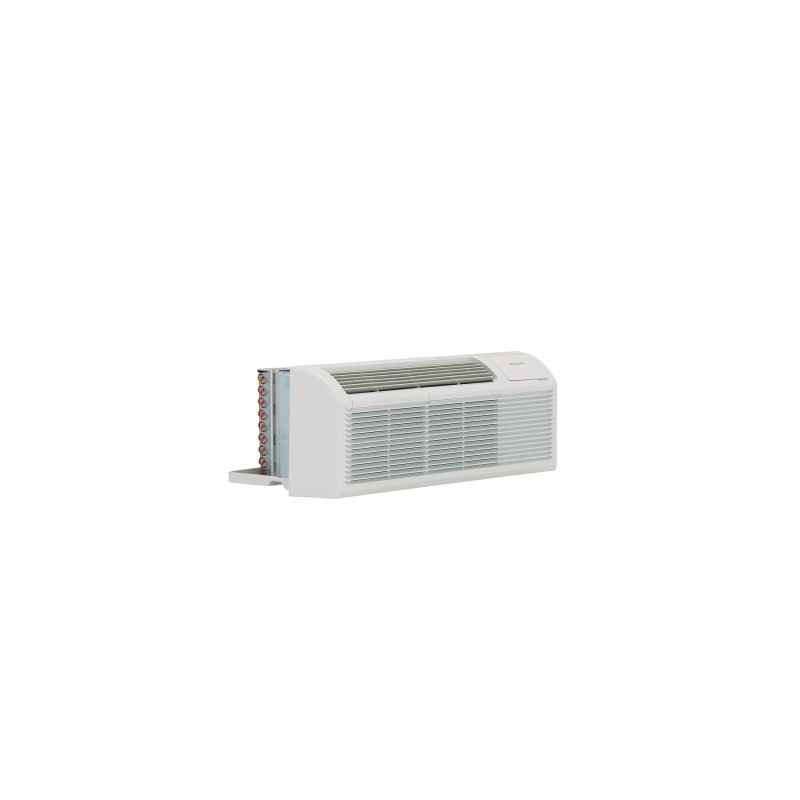

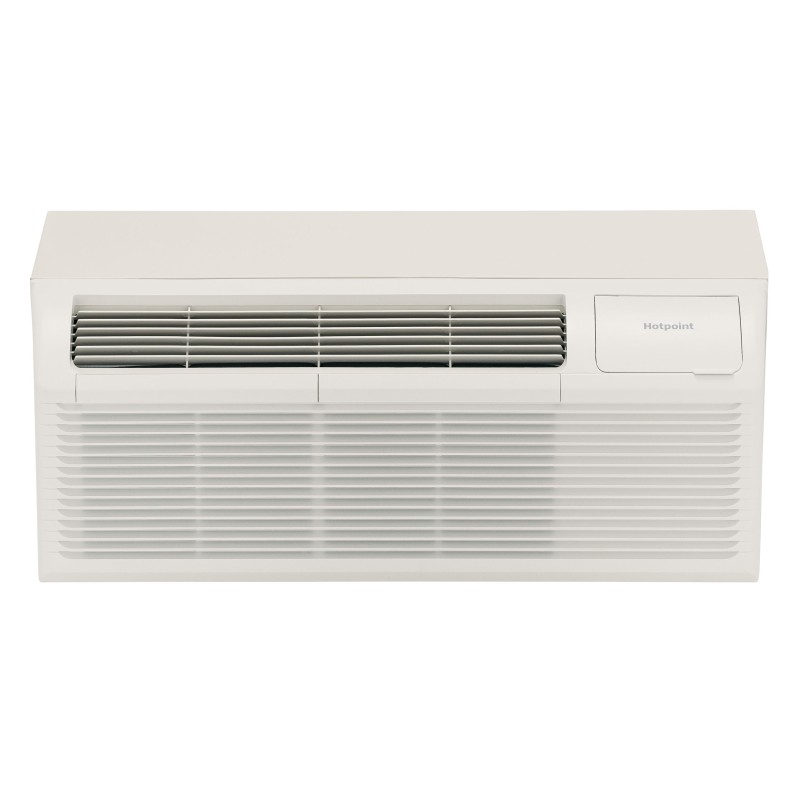

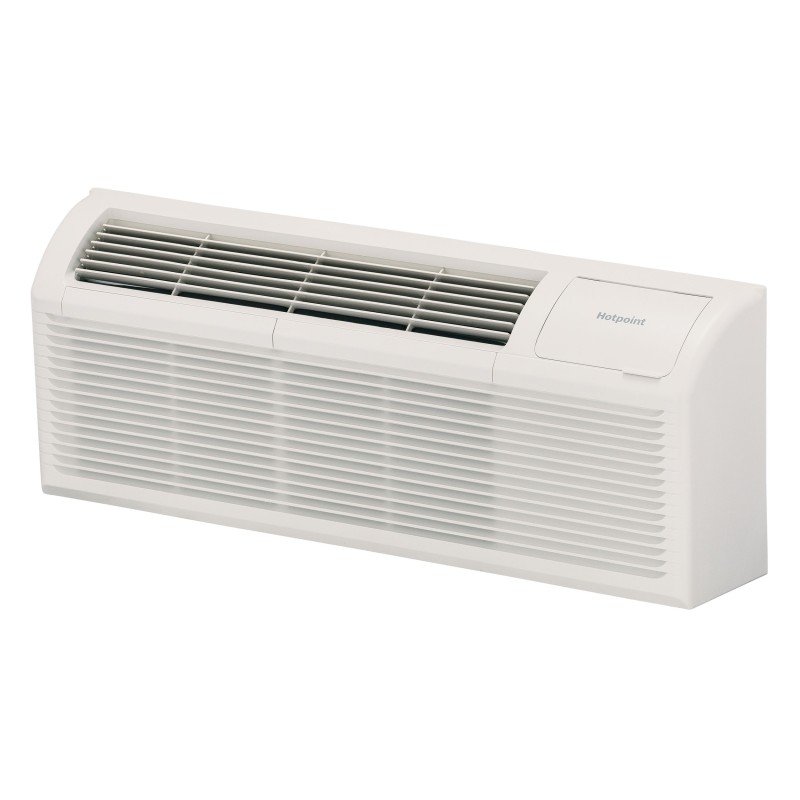

Hotpoint PTAC with Electric Heat 15 amps, 230/208 Volt
SKU : AH11E07D2B
APPROX. DIMENSIONS (HxWxD) : 16 in x 42 in x 21 in
- Backed by an industry leader With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
- 4-temperature limiting options Easily select one of four temperature ranges for peak efficiency and total customer comfort

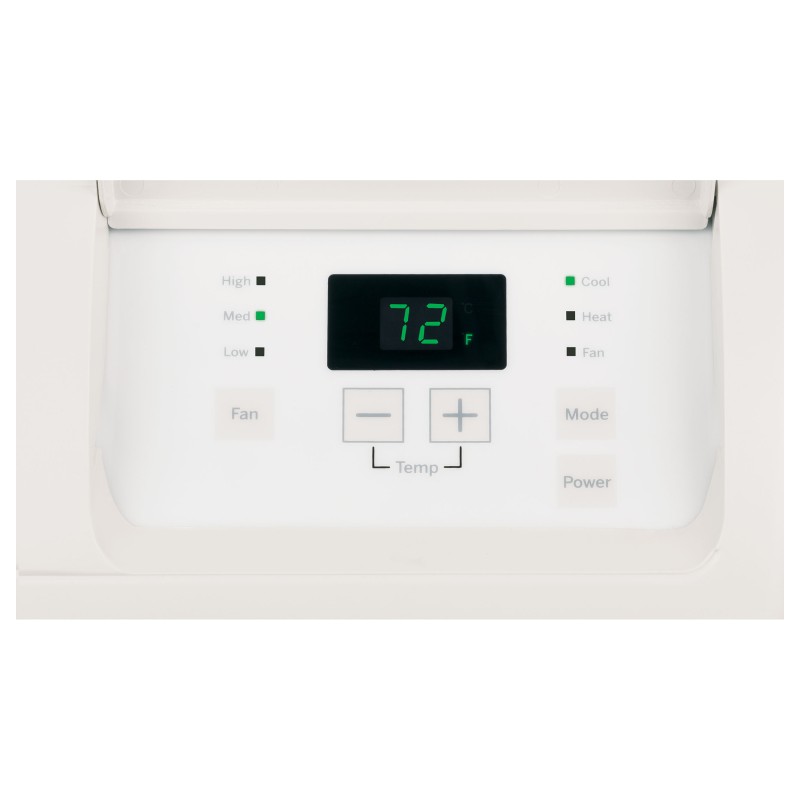

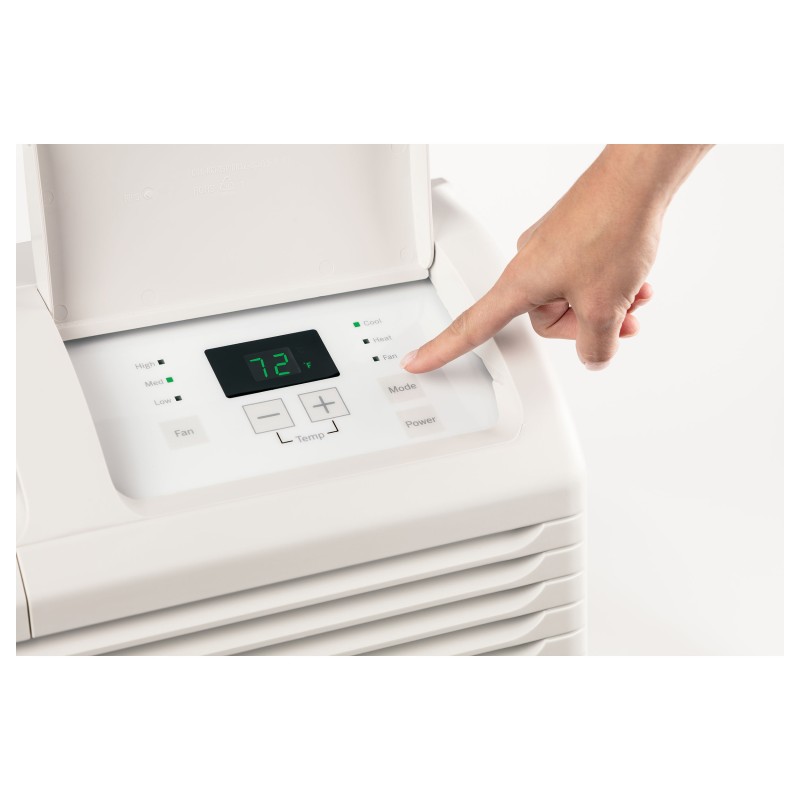

- Intuitive display Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- Power cord (LCDI) included Hotpoint PTACs come with everything needed for a quick and easy installation
- Automatic emergency heat Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
- Freeze and frost protection Automatic freeze and indoor frost control keep units operating in peak condition
- Auto power recovery In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
- Self diagnostics Quickly and easily identify service needs with a nine-point diagnostic code system
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound

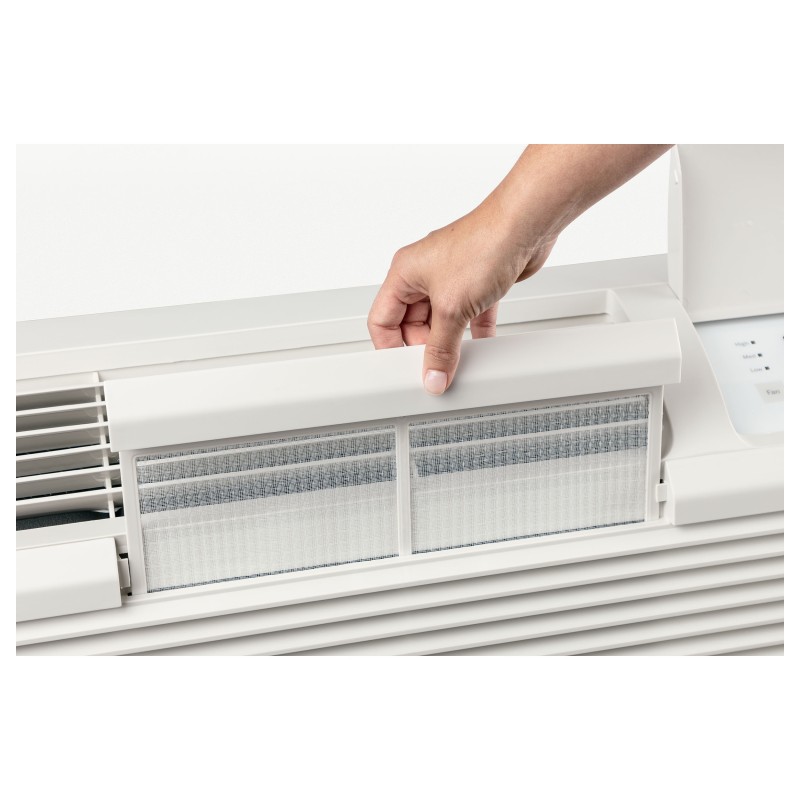

- Removable filters for easy maintenance
FEATURES :
- "SmartFan" Fan Cycle : Yes
- Auto Power Recovery : Yes

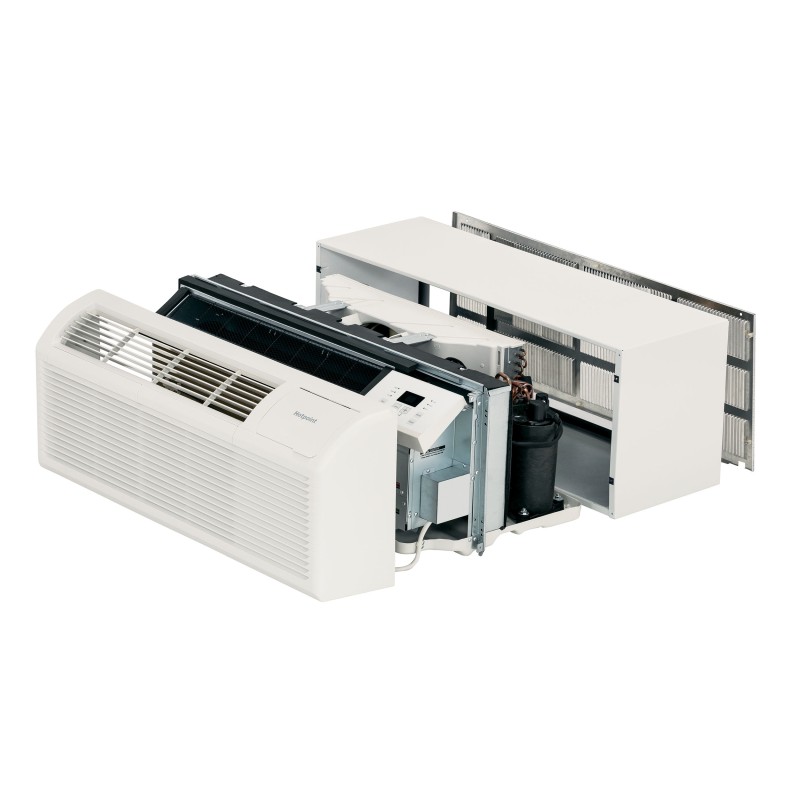

- Chassis Type : Slide-In
- Control Type : Electronic
- Discharge Grille : 2-position
- Fan Motor : 2
Fan Speed Selections :
- 3 Cooling
- 3 Fan Only
- 3 Heating
Manual Vent Control : Hidden
Rotary Compressor : Yes
Unit Features :
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Power Cord (LCDI) included
- Remote Thermostat Compatibility
Venting Features :
- Concealed Manual Vent Control
- Vent Air Filter
Heating System : Electric Resistance
Outdoor Vent / Exhaust : Yes
Product Type : Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type : R410A
Temperature Range : 62 - 86 F
CAPACITY :
- Cooling BTUH (MIN) : 7000.0 Btu
- Cooling BTUH (MAX) : 7200.0 Btu
- Cooling EER (BTUH / Watt) : 11.9
- CFM Indoor Fan High : 334
- CFM Indoor Fan Medium : 280
- CFM Indoor Fan Low : 236
APPEARANCE :
- Color Appearance : White
- Installation : Through-the-Wall
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 112 lb
- Net Weight : 102 lb
- Overall Depth : 21 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes : 2.45/2.6
- Cooling - Watts : 605/585
- Heating - Electric - Heater Watts : 2535/2080
- Heating - Electric - Heater Amps : 10.8/9.8
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS : 230.0 V
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
