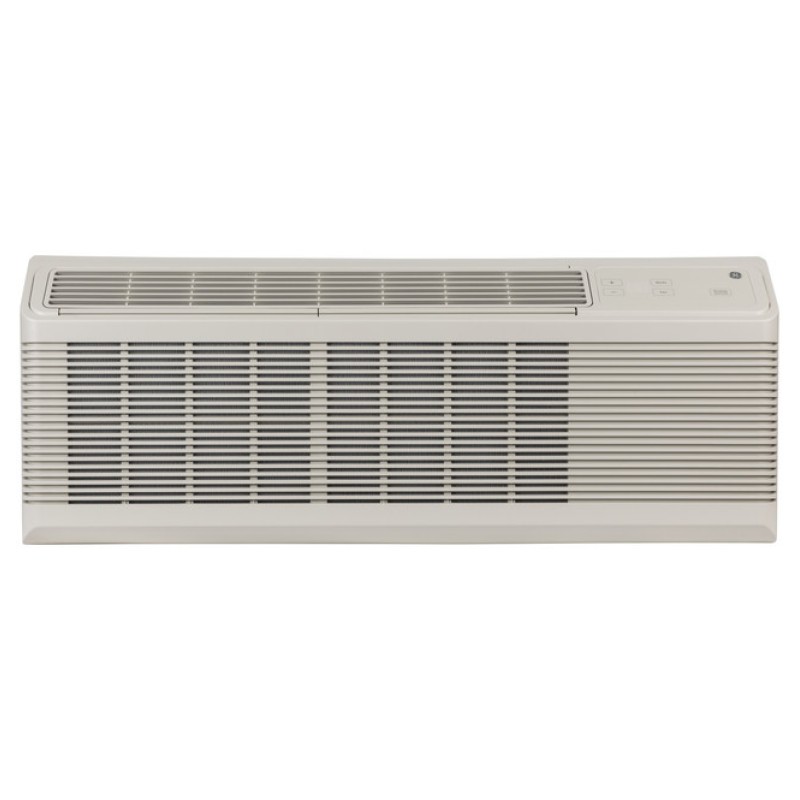

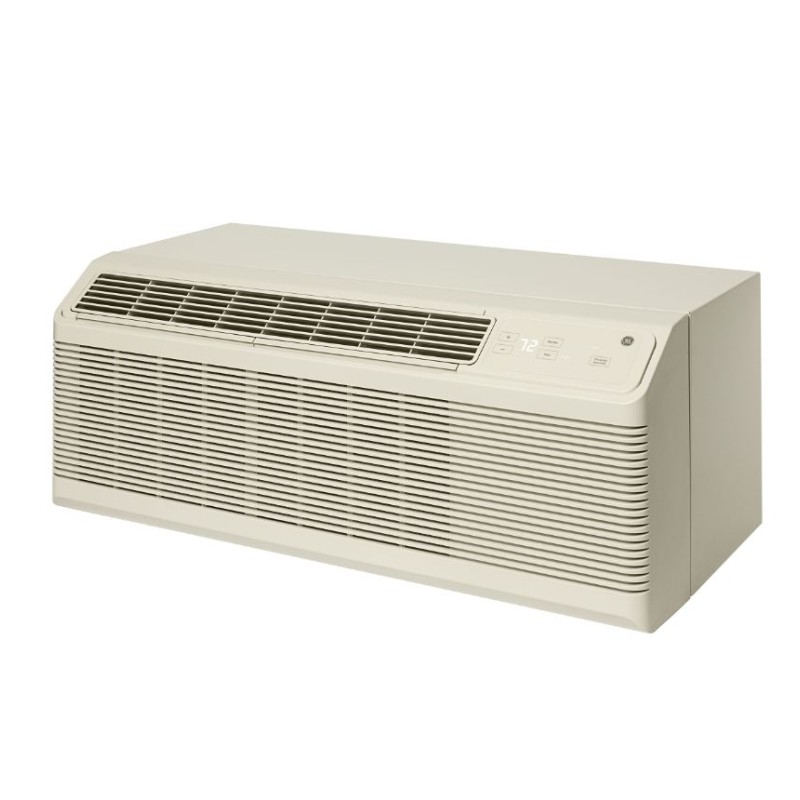

GE Zoneline Heat Pump Unit with Makeup Air, 265 Volt
SKU : AZ65H12EBM
About this Product :Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
Electronic touch controls with LED displaySimplified structure
Easy to maintain and service
- Product built to order, lead times may vary
- Energy efficiency
- When paired with occupancy sensing hardware, ventilation can be halted during vacancy
- Dehumidification
- Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
- Boost heat option
- Provides supplemental resistance heat in heat pump mode
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
Specs & Details :
- Sensible Heat Ratio : 69%
- Chassis Type : Slide-In
- Standard Microcomputer

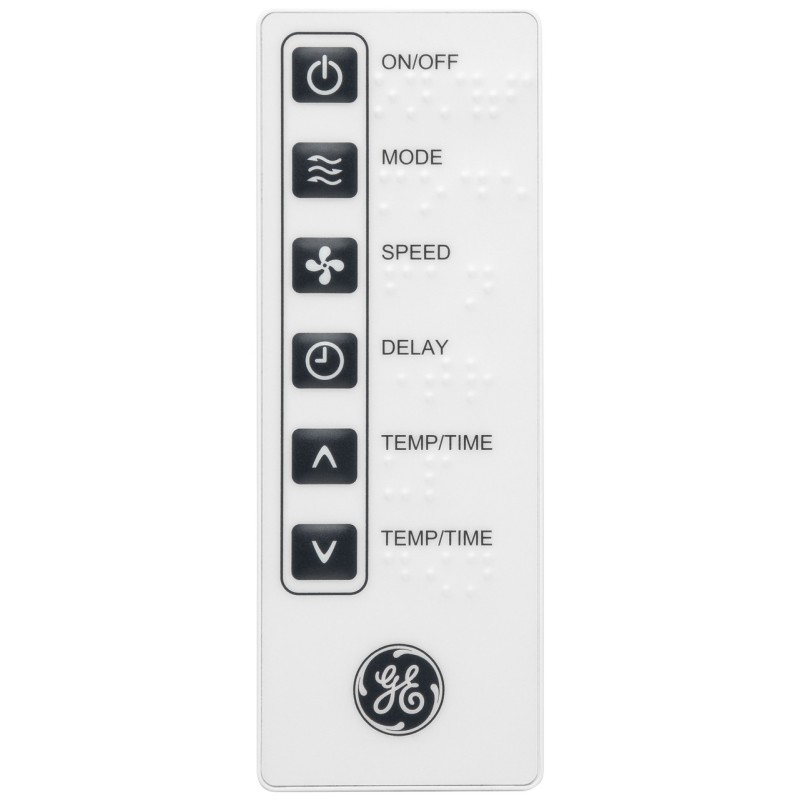

- Tactile touch pad with LED Display
Electronic Micro Computer Control : Yes
Fan Cycle Switch : Yes
Fan Motor : 2
Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Quick Heat Recovery
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MAX) : 11700.0 Btu
- Cooling EER (BTUH / Watt) : 11.4
- CFM Indoor Fan High : 449
- CFM Indoor Fan Low : 350
- Dehumidification (pts./hr.) : 3.7
- Heating - Reverse Cycle - BTUH : 10,300
- Vent CFM (high fan at zero ESP) : 25-50
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 135 lb
- Net Weight : 135 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 4.9
- Cooling - Amperes; L.R. : 23.5
- Cooling - Watts : 1025
- Heating - Reverse Cycle - Amps : 4.5
- Heating - Reverse Cycle - COP : 3.5
- Heating - Reverse Cycle - Watts : 860
- Power Factor : 96
- Voltage (MAX) : 265.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
