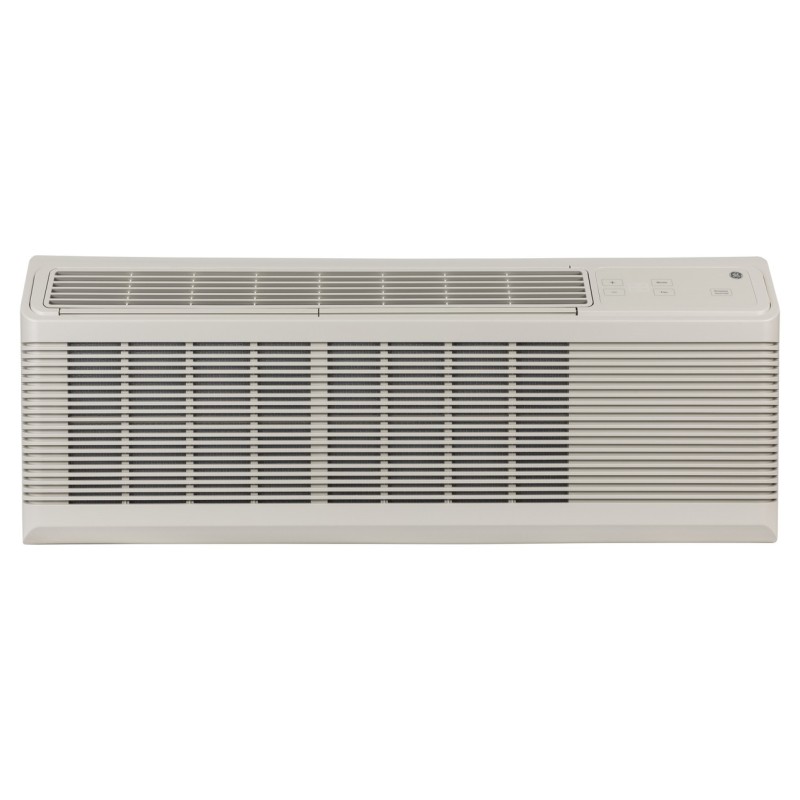

GE Zoneline Heat Pump Unit with Makeup Air, 230/208 Volt
SKU : AZ65H12DBM
About this Product :
Makeup airDelivers 25-50 CFM of continuous makeup air whenever the room is occupiedElectronic touch controls with LED display
Simplified structure :
- Easy to maintain and service
- Product built to order, lead times may vary
- Energy efficiency
- When paired with occupancy sensing hardware, ventilation can be halted during vacancy
- Dehumidification
- Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
- Boost heat option
- Provides supplemental resistance heat in heat pump mode
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
Specs & Details :
- Sensible Heat Ratio : 69%
- Chassis Type : Slide-In
- Control Type :
- Standard Microcomputer

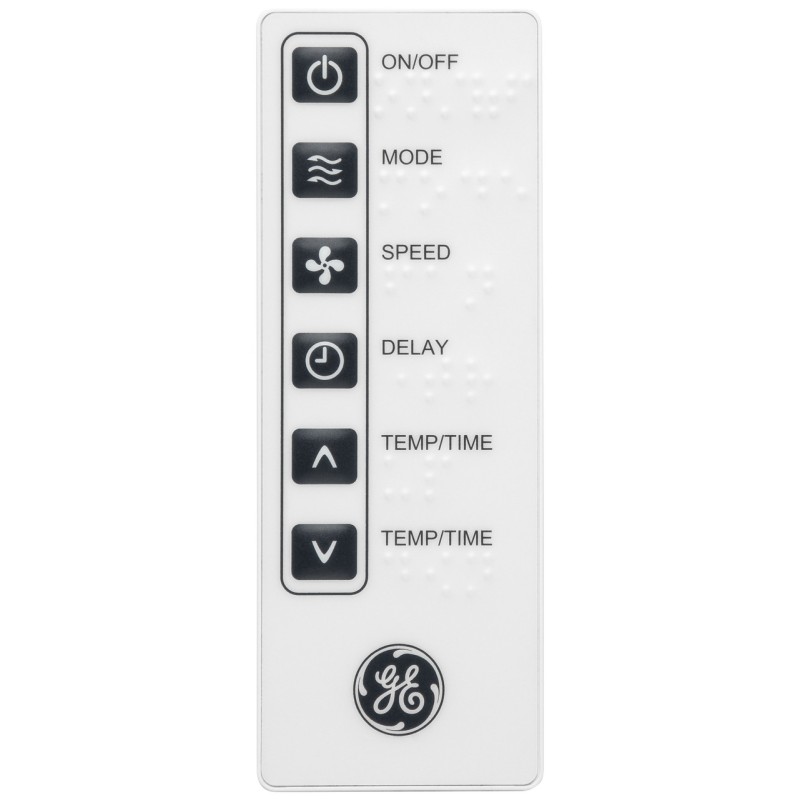

- Tactile touch pad with LED Display
- Discharge Grille : 2-position
- Electronic Micro Computer
- Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
- Fan Speed Selections
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Filter Type :
- Rigid Frame
- Slide-Out
- Louver Style : Reversible
- Rotary Compressor : Yes
- Temperature Limiting : Electronic 7-Step
- Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Quick Heat Recovery
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
- Temperature Range : 60 - 85 F
CAPACITY :
- Cooling BTUH (MIN) : 11400.0 Btu
- Cooling BTUH (MAX) : 11500.0 Btu
- Cooling EER (BTUH / Watt) : 11.2/11.2
- CFM Indoor Fan High : 449
- CFM Indoor Fan Low : 300
- Dehumidification (pts./hr.) : 3.4
- Heating - Reverse Cycle - BTUH : 10200/10000
- Vent CFM (high fan at zero ESP) : 25-50
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 135 lb
- Net Weight : 135 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 5.8/6.2
- Cooling - Amperes; L.R. : 29.5
- Cooling - Watts : 1025/1015
- Heating - Reverse Cycle - Amps : 5.0/5.2
- Heating - Reverse Cycle - COP : 3.5/3.5
- Heating - Reverse Cycle - Watts : 850/835
- Power Factor : 97
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
Labor Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
