GE Zoneline Heat Pump Unit with Corrosion Protection, 265 Volt
SKU : AZ65H09EAC
About this Product :Energy efficiency : 12.8 EERQuiet operationBaked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Electronic touch controls with LED displaySimplified structureEasy to maintain and service
- Cooling capacity : 9,500 BTU
- Dehumidification : 2.5 pints/hour
- Reverse heat cycle : 8,100 BTU
- Heat pump efficiency : 3.6 COP
- Indoor fan CFM (high/low) : 409/300
- Sensible Heat Ratio : 68%
- Chassis Type : Slide-In
- Standard Microcomputer

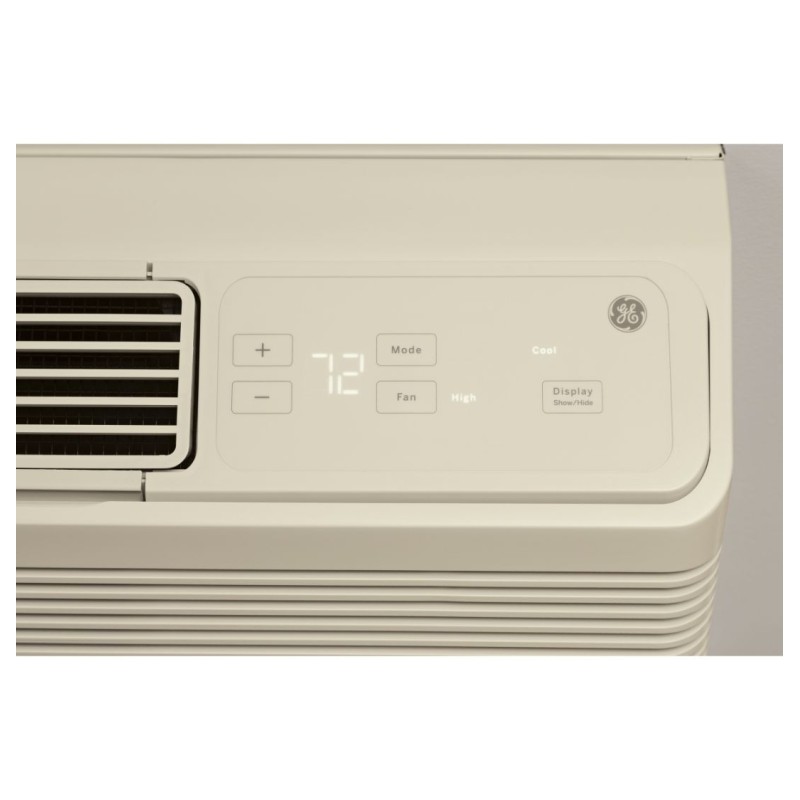

- Tactile touch pad with LED Display
Discharge Grille : 2-position
Electronic Micro Computer Control : Yes
Fan Cycle Switch : Yes
Fan Motor : 2
Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating

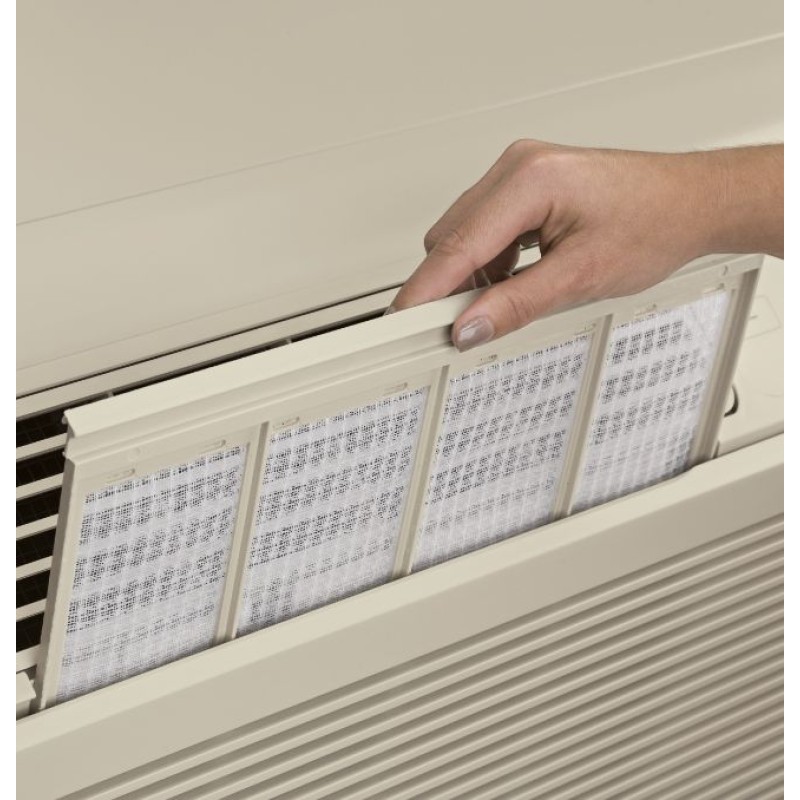

Filter Type :
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions
- Vent Air Filter
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Quick Heat Recovery
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 9500.0 Btu
- Cooling EER (BTUH / Watt) : 11.7
- CFM Indoor Fan High : 420
- CFM Indoor Fan Low : 300
- Dehumidification (pts./hr.) : 2.5
- Heating - Reverse Cycle - BTUH : 8,100
- Vent CFM (high fan at zero ESP) : 40
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 3.3
- Cooling - Amperes; L.R. : 16.5
- Cooling - Watts : 810
- Heating - Reverse Cycle - Amps : 2.8
- Heating - Reverse Cycle - COP : 3.6
- Heating - Reverse Cycle - Watts : 655
- Power Factor : 94
- Voltage (MAX) : 265.0 V
CLAIMS & CERTIFICATIONS : California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
