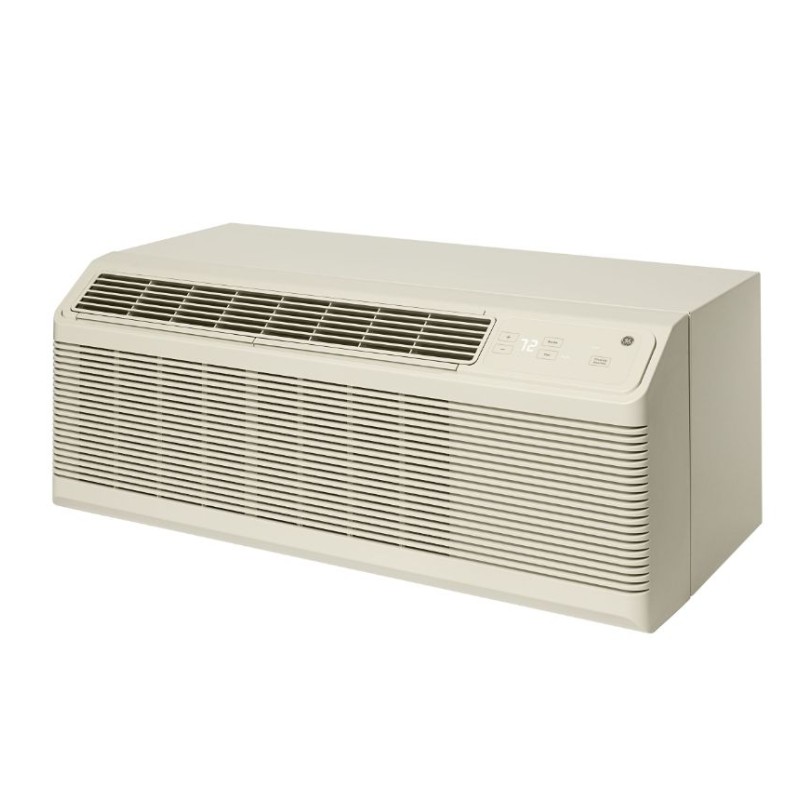

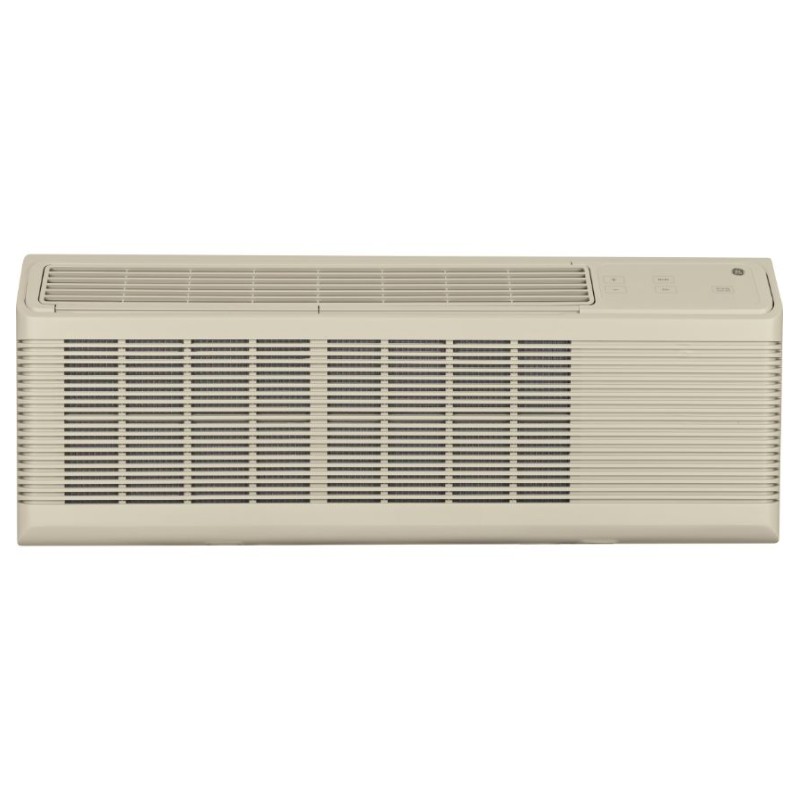

GE Zoneline Heat Pump Unit, 230/208 Volt
SKU : AZ65H09DAB
About this Product :Energy efficiency : 12.2/12.2 EERQuiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfortElectronic touch controls with LED displaySimplified structure
Easy to maintain and service
- Cooling capacity : 9,700/9,600 BTU
- Dehumidification : 2.6 pints/hour
- Reverse heat cycle : 8,100/8,000 BTU
- Heat pump efficiency : 3.7/3.7 COP
- Indoor fan CFM (high/low) : 409/300
Specs & Details :
- Sensible Heat Ratio : 68%
- Chassis Type : Slide-In
Control Type :
- Standard Microcomputer

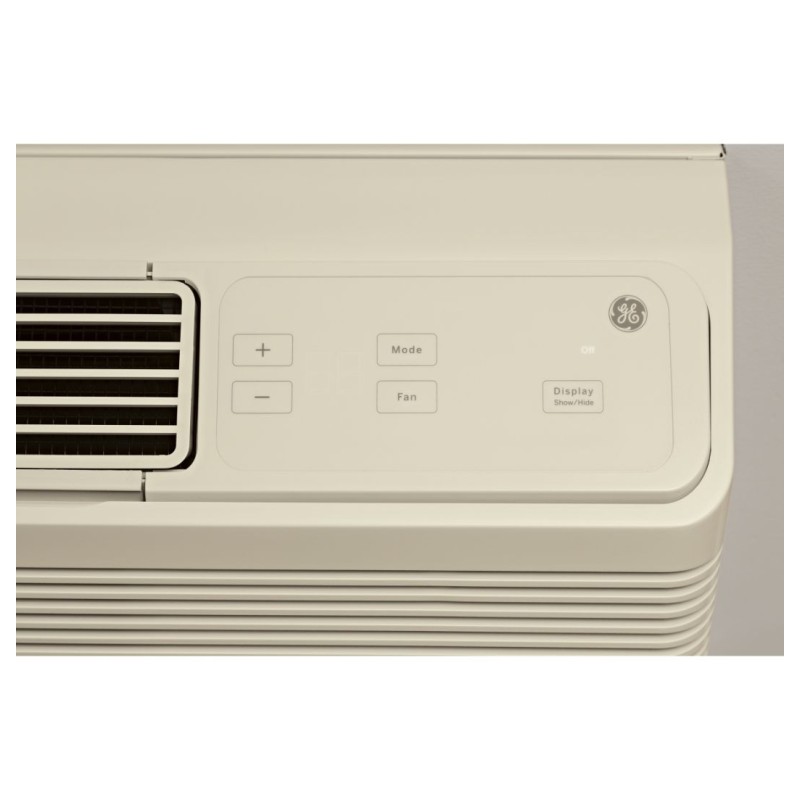

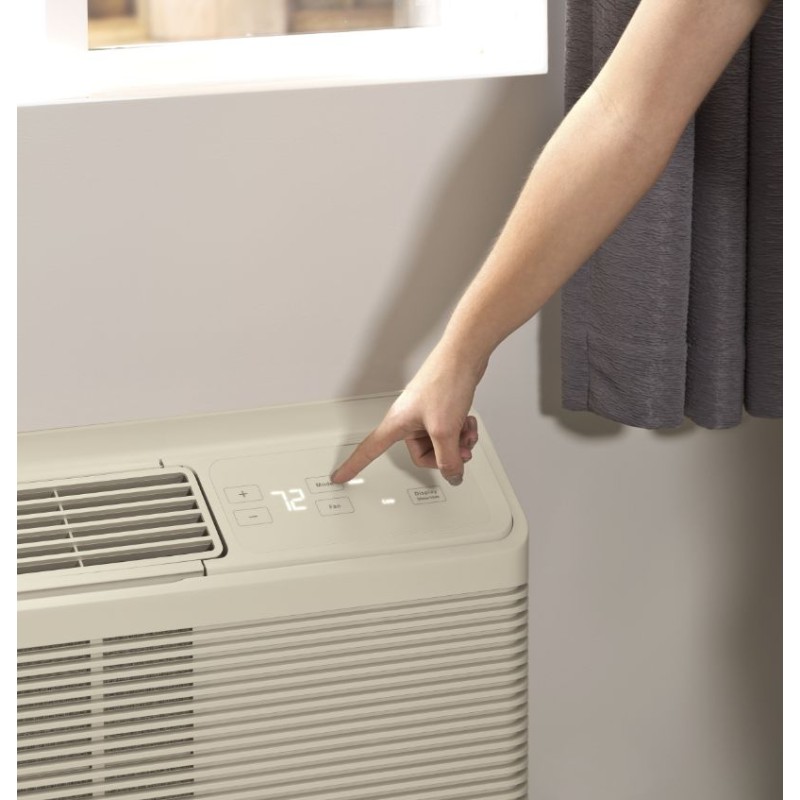

- Tactile touch pad with LED Display
Electronic Micro Computer Control : Yes
Fan Cycle Switch : Yes
Fan Motor : 2
Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions

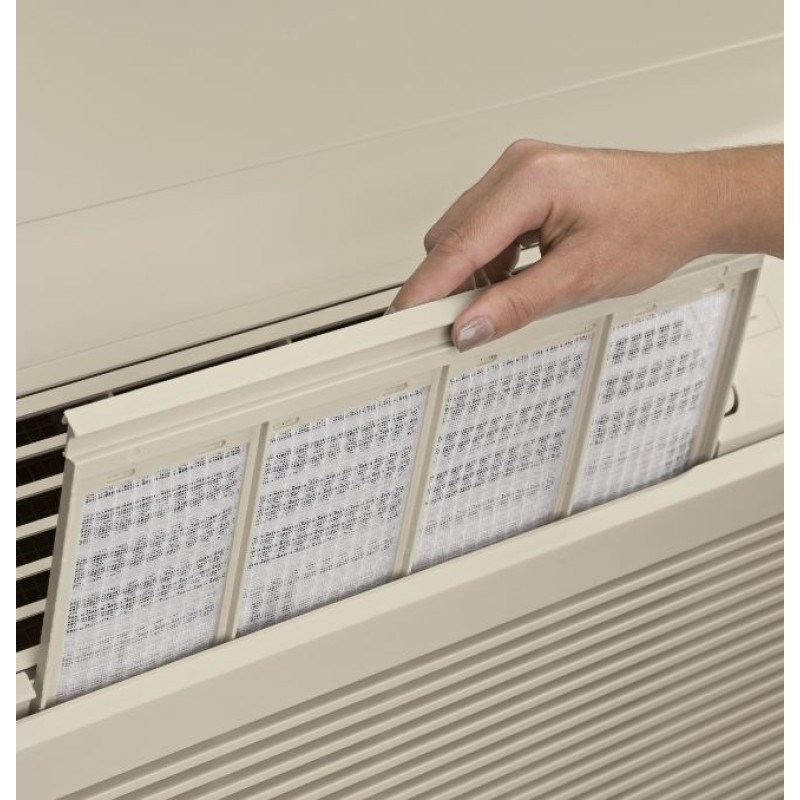

- Vent Air Filter
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Quick Heat Recovery
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 9600.0 Btu
- Cooling BTUH (MAX) : 9700.0 Btu
- Cooling EER (BTUH / Watt) : 12.2/12.2
- CFM Indoor Fan High : 420
- CFM Indoor Fan Low : 300
- Dehumidification (pts./hr.) : 2.6
- Heating - Reverse Cycle - BTUH : 8100/8000
- Vent CFM (high fan at zero ESP) : 40
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 3.6/3.8
- Cooling - Amperes; L.R. : 21.0
- Cooling - Watts : 795/785
- Heating - Reverse Cycle - Amps : 3.0/3.2
- Heating - Reverse Cycle - COP : 3.7/3.7
- Heating - Reverse Cycle - Watts : 645/630
- Power Factor : 98
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
