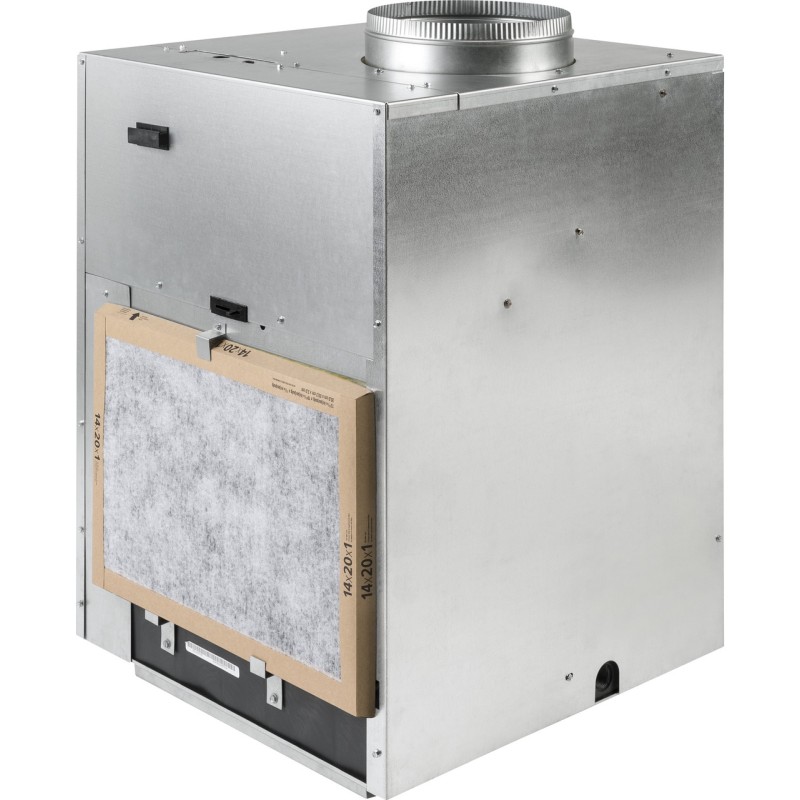

GE Zoneline Heat Pump Single Package Vertical Air Conditioner 15 Amp 265 Volt AZ91H12E2E
SKU : AZ91H12E2E
About This Product
- Energy efficiency : Enhanced energy efficiency with an EER of 11.0
- Cooling capacity : 11,500 BTU

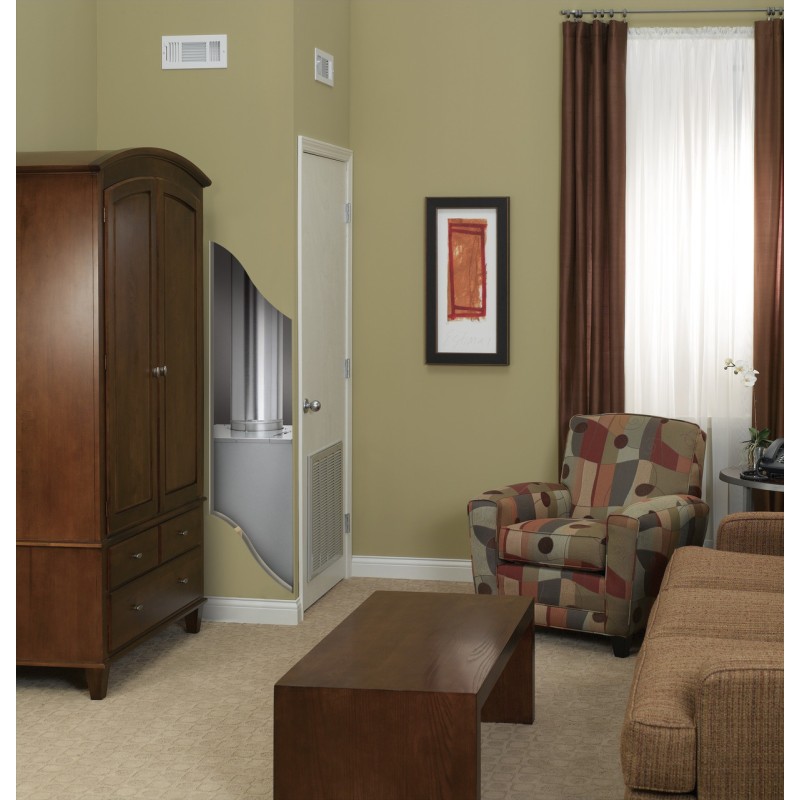

- Vertical space-saving design : Optimizes usable floor space with hidden closet design
- Reliable & quiet : Every component is engineered to provide exceptional performance
- Robust plenum gasket seals keep dirt outside and reduces chassis vibration
- Corrosion treatment on outside coils

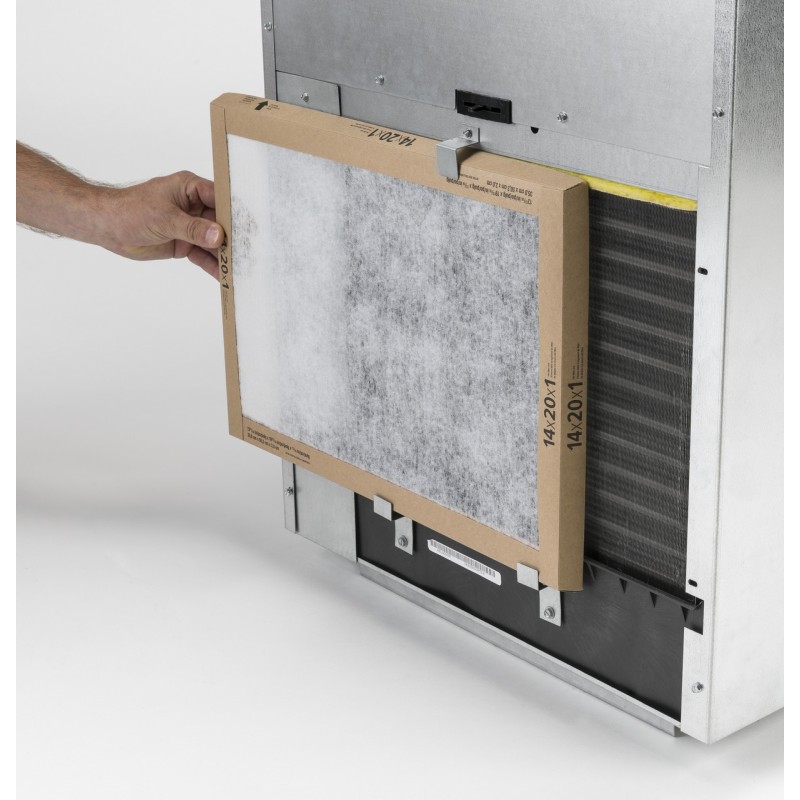

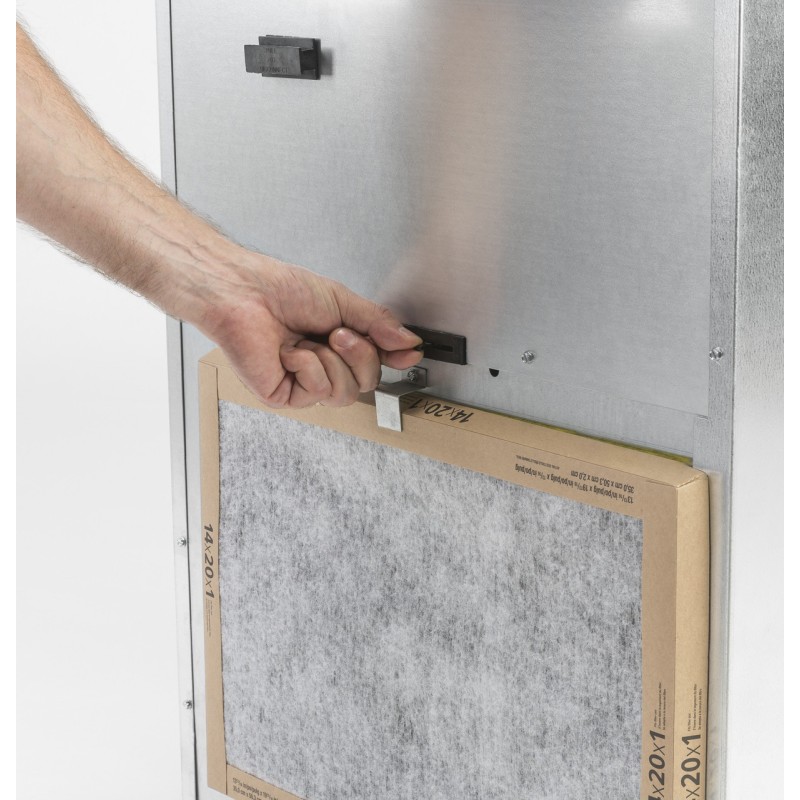

- Standard filter size
- Internal diagnostic program
- Auxiliary fan ready
- Room air sampling feature maintains a balanced temperature throughout the room
- Remote wall thermostat capable
Specs & Details

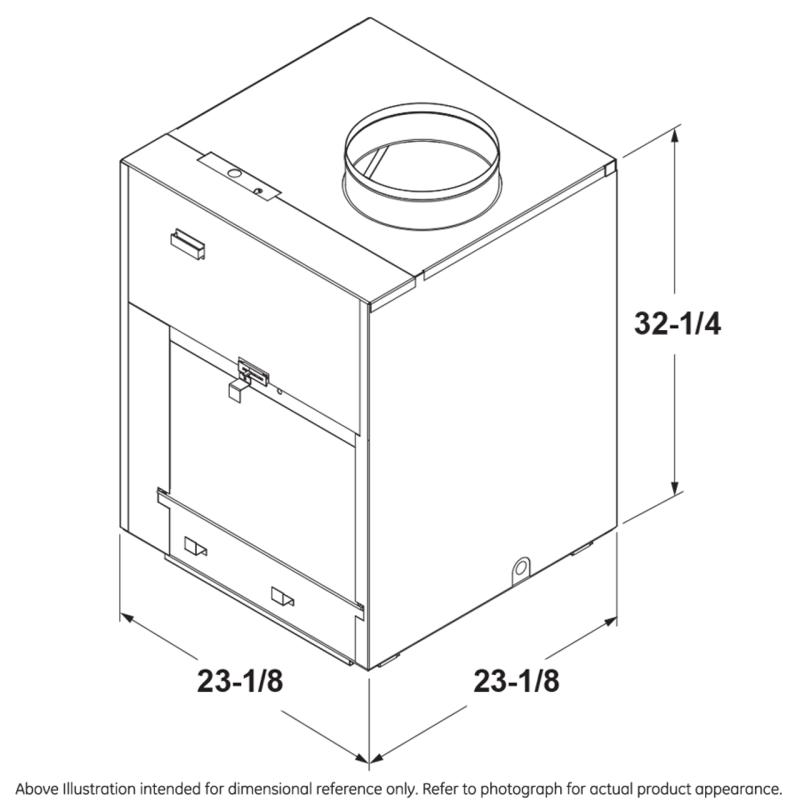

- Dimensions: 32 H x 23 1/8 W x 23 1/8 D
ACCESSORIES
- External Drain Kit : RAVDP20
CAPACITY
- CFM Indoor Fan High : 490
- CFM Indoor Fan Low : 430
- Cooling BTUH (MIN) : 11,500
- Cooling EER (BTUH / Watt) : 11.0
- Dehumidification (pts./hr.) : 2.5
- Heating - Reverse Cycle - BTUH : 10800
- Vent CFM (high fan at zero ESP) : 60
FEATURES
- Central Desk Control Compatibility : Yes
- Corrosion Treated : Yes
- Fan Speed Selections : 3 Cooling
- Freeze Sentinel : Yes
- Heat Pump : Yes
- Heating - Reverse Cycle - COP : 3.3
- Heating System : Heat Pump

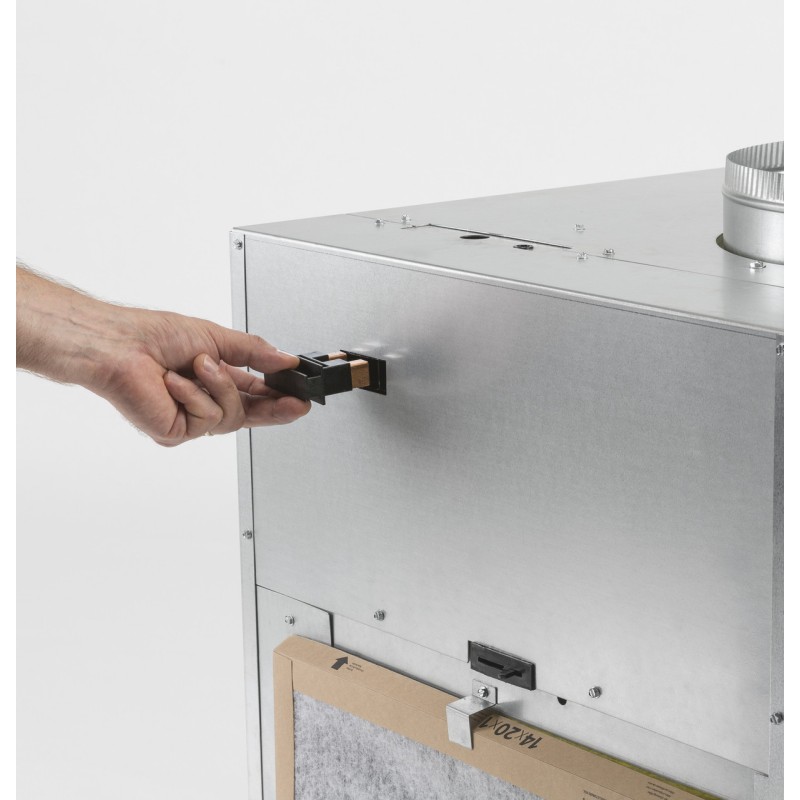

- Manual Vent Control : Yes
- Product Type : Vertical Air Conditioners
- Refrigerant Type : R410A
- Remote Thermostat : RAK148
- Rotary Compressor : Yes
- Sensible Heat Ratio : 79%
Zoneline Features :
- Electronic Error Diagnostics
- Quick Heat Recovery
- Solid State Thermostat
- Automatic Indoor Frost Control
- Freeze Sentinel
- Auto Power Recovery
- Remote Control Disconnect Kit
- Weather Protected Electrical Components
- Heat Pump with Resistance Heat Backup
- Automatic Emergency Heat
POWER / RATINGS
- Cooling - Amperes : 4.0
- Cooling - Amperes; F.L. - Cooling : 4.0
- Cooling - Watts : 1046
- Heating - Electric - Heater Amps : 10.9
- Heating - Electric - Heater Watts : 2500
- Heating - Reverse Cycle - Amps : 3.7
- Heating - Reverse Cycle - Watts : 959
- Voltage (MAX) : 265 V
WARRANTY
Labor Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
WEIGHTS & DIMENSIONS
- Approximate Shipping Weight : 135 lb
- Net Weight : 124 lb
- Overall Depth : 23 1/8 in
- Overall Height : 32 in
- Overall Width : 23 1/8 in
