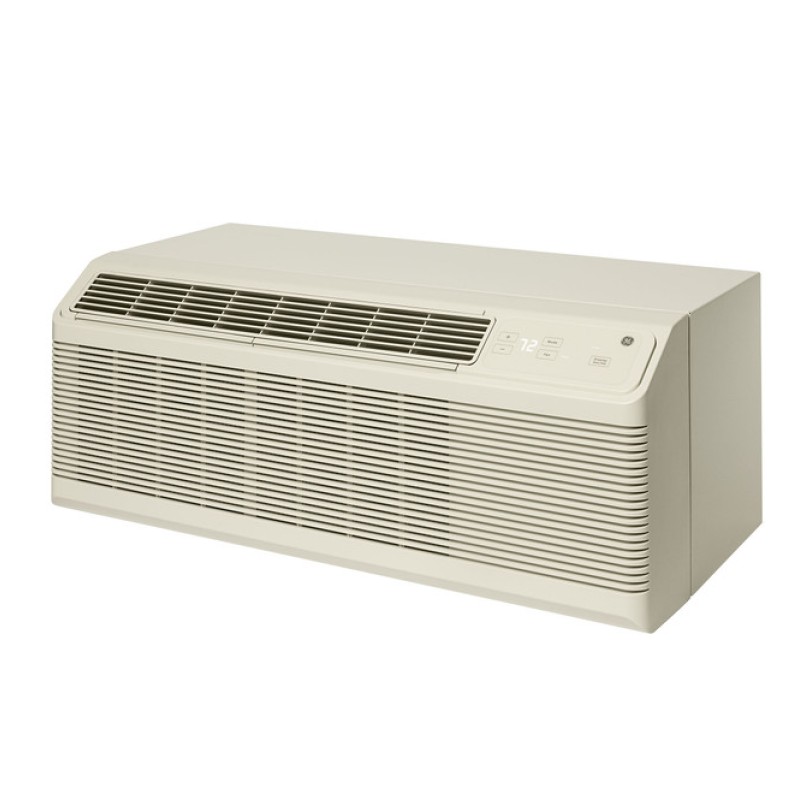

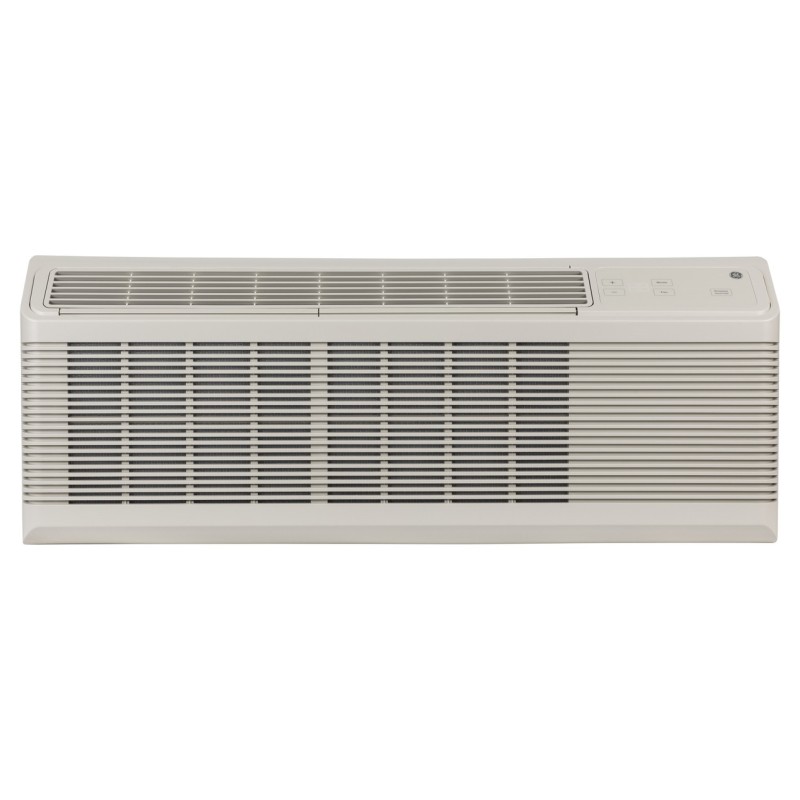

GE Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt
SKU : AZ45E12DBM
About this Product :Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

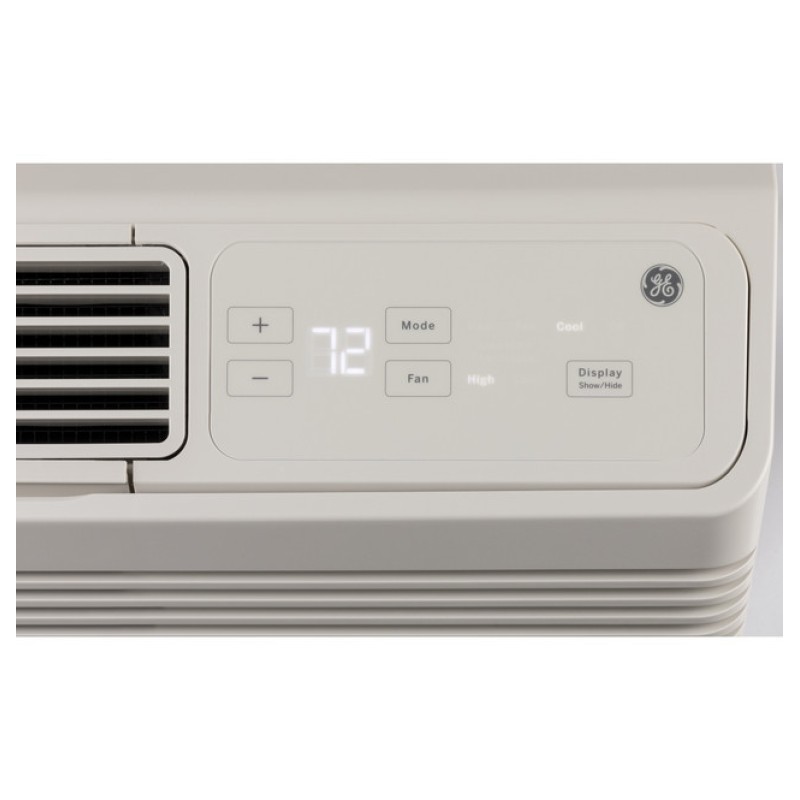

Electronic touch controls with LED display
Simplified structure
- Easy to maintain and service
- Product built to order, lead times may vary
- Energy efficiency
- When paired with occupancy sensing hardware, ventilation can be halted during vacancy
- Dehumidification
- Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
- Electronic temperature limiting
- Prevents expensive over-cooling or over-heating of the room
Specs & Details :
- Sensible Heat Ratio : 66%
- Chassis Type : Slide-In
- Control Type : Coverless Backlit White LED Touch Controls
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Universal Heaters
Temperature Range : 60 - 85 F
CAPACITY :
- Cooling BTUH (MIN) : 11600.0 Btu
- Cooling BTUH (MAX) : 11700.0 Btu
- Cooling EER (BTUH / Watt) : 11.7/11.7
- CFM Indoor Fan High : 449
- CFM Indoor Fan Low : 270
- Dehumidification (pts./hr.) : 3.9
- Vent CFM (high fan at zero ESP) : 25-50
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 135 lb
- Net Weight : 135 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 5.7/6.0
- Cooling - Amperes; L.R. : 29.5
- Cooling - Watts : 1000/990
- Power Factor : 98
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
