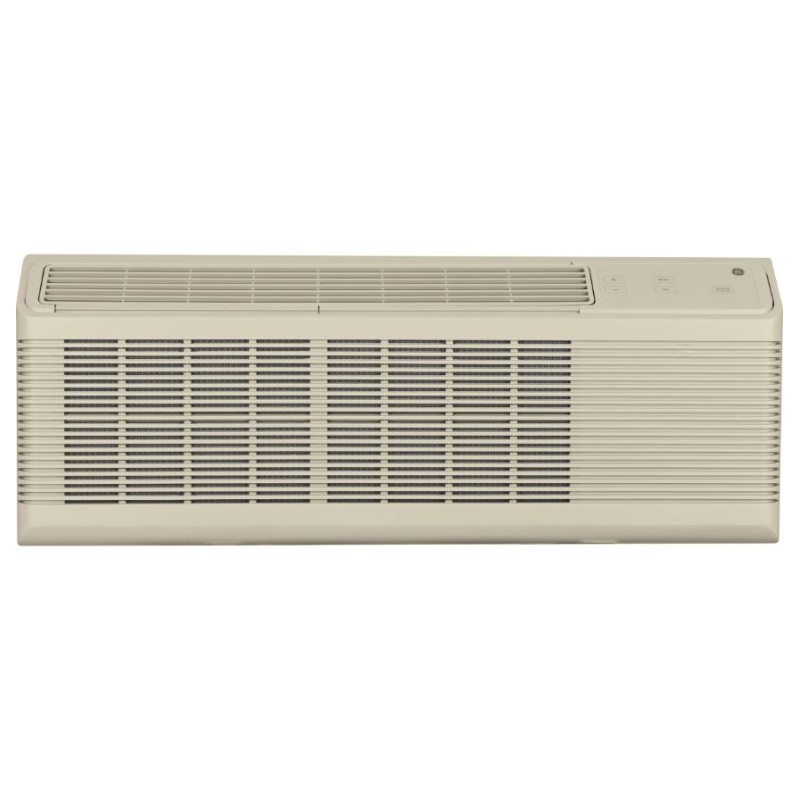

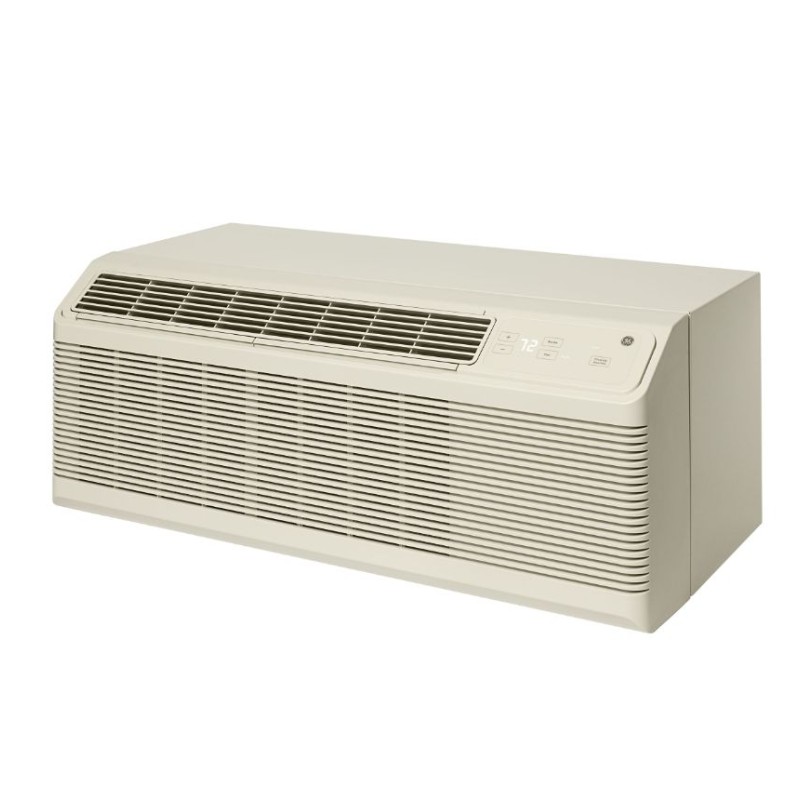

GE Zoneline Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
SKU : AZ45E07DAC
About this Product :Energy efficiency : 13.4/13.4 EERQuiet operation

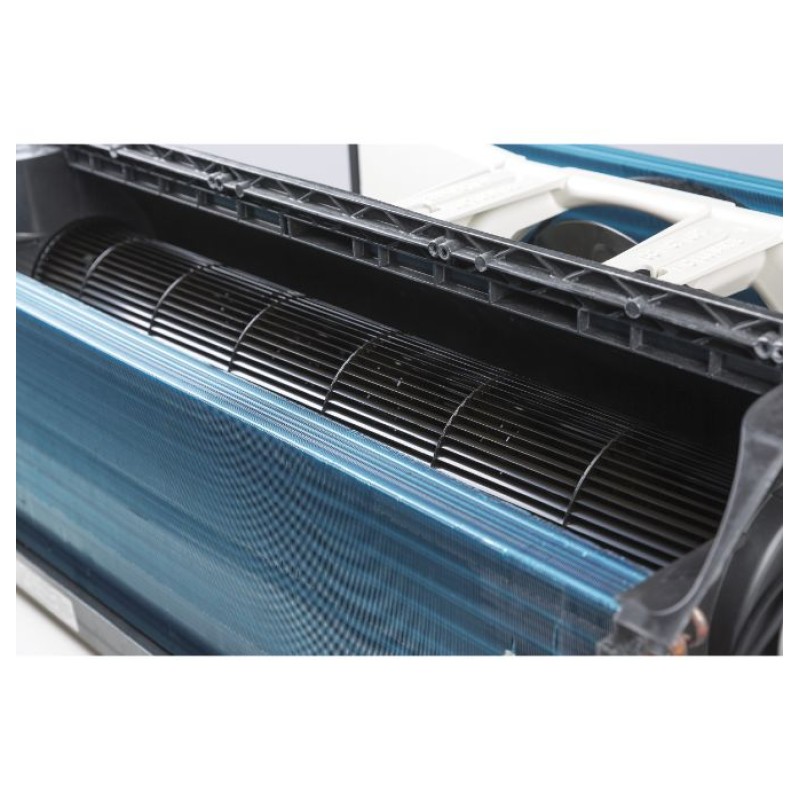

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

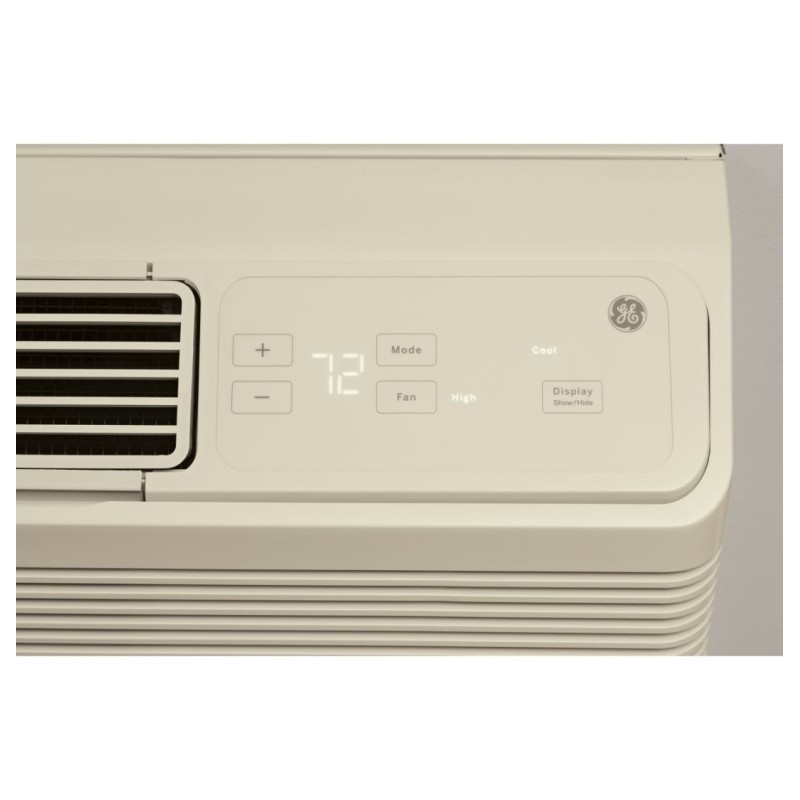

Electronic touch controls with LED displaySimplified structure
Easy to maintain and service
- Cooling capacity : 7,200/7,000 BTU
- Dehumidification : 1.6 pints/hour
- Indoor fan CFM (high/low) : 409/250
- Fresh air vent CFM (fully open high fan) : 33
Extends life of the unit in sea coast areas/corrosive environments
Specs & Details :
- Sensible Heat Ratio : 74%
- Chassis Type : Slide-In
- Control Type : Coverless Backlit White LED Touch Controls
- Corrosion Treated : Yes
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating

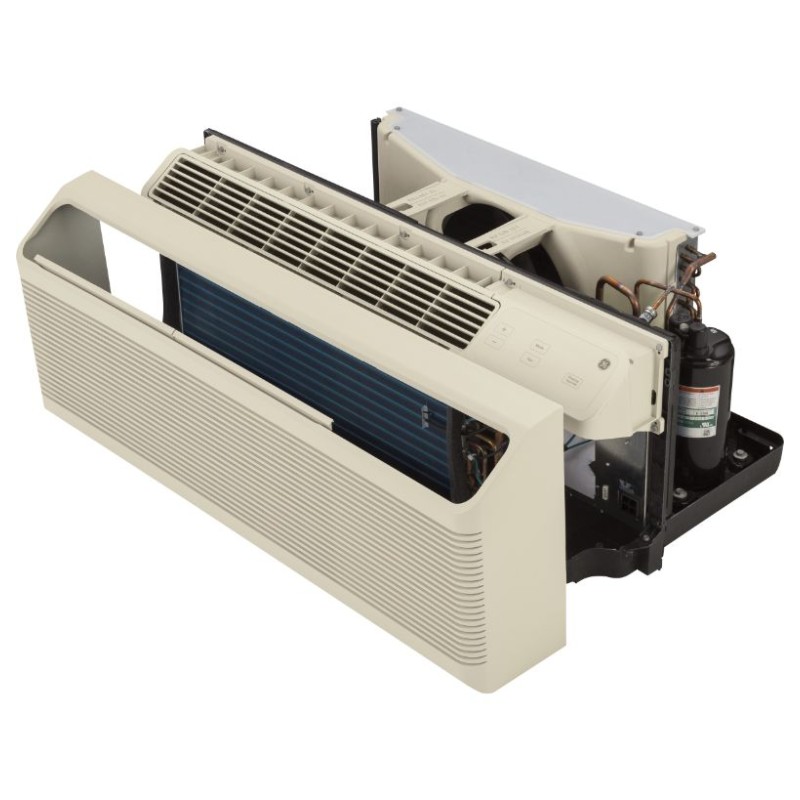

- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions
- Vent Air Filter
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Universal Heaters

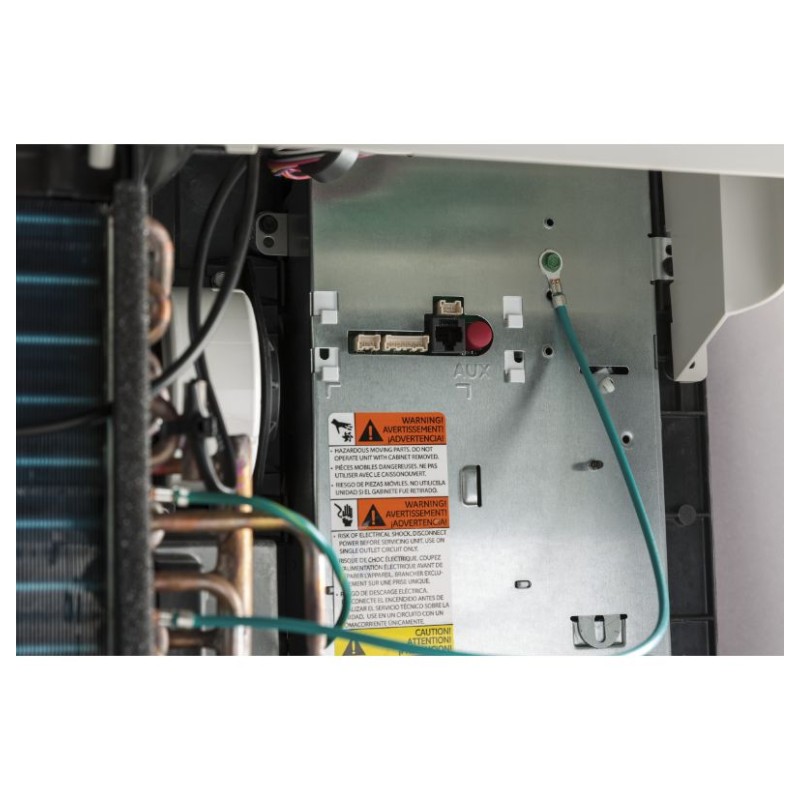

- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 7000.0 Btu
- Cooling BTUH (MAX) : 7200.0 Btu
- Cooling EER (BTUH / Watt) : 13.4/13.4
- CFM Indoor Fan High : 348
- CFM Indoor Fan Low : 233
- Dehumidification (pts./hr.) : 1.6
- Vent CFM (high fan at zero ESP) : 33
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 2.5/2.6
- Cooling - Amperes; L.R. : 13.5
- Cooling - Watts : 535/520
- Power Factor : 96
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- NRCAN
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
