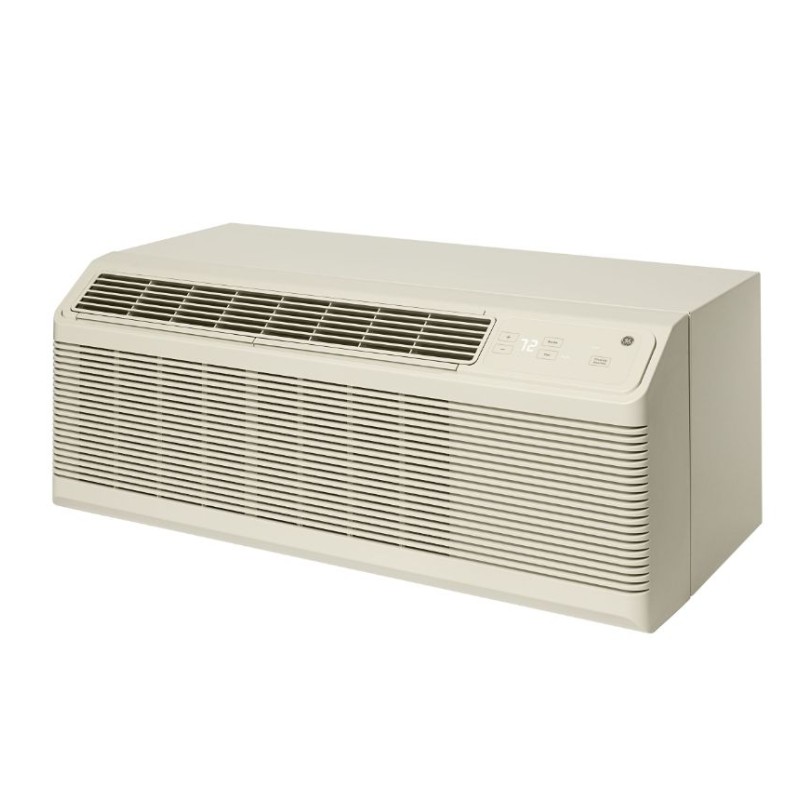

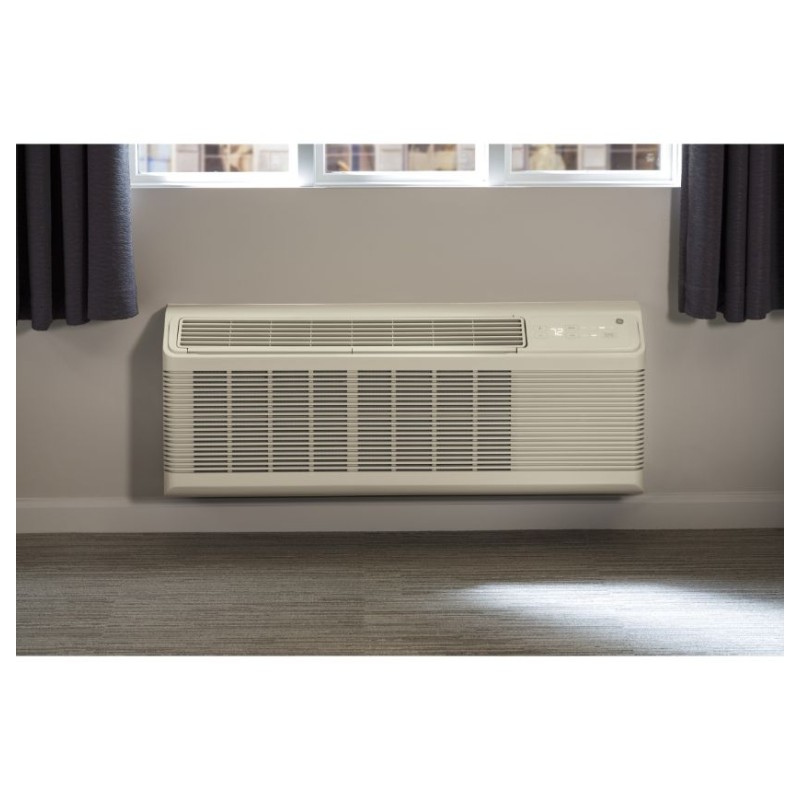

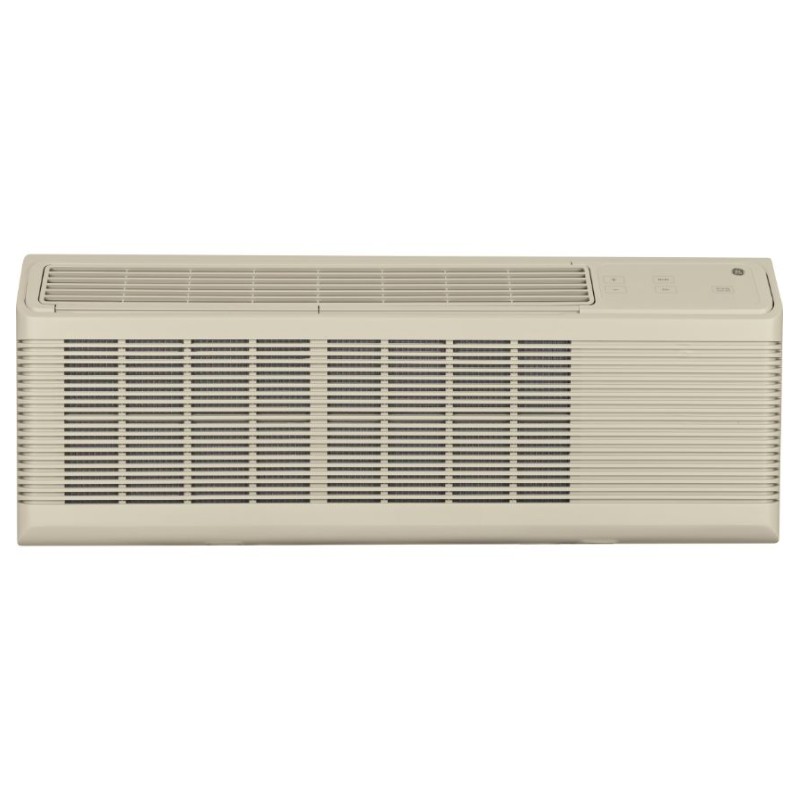

GE Zoneline Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
SKU : AZ45E09DAC
About this Product :
Energy efficiency : 11.8/11.8 EER
Quiet operation : Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

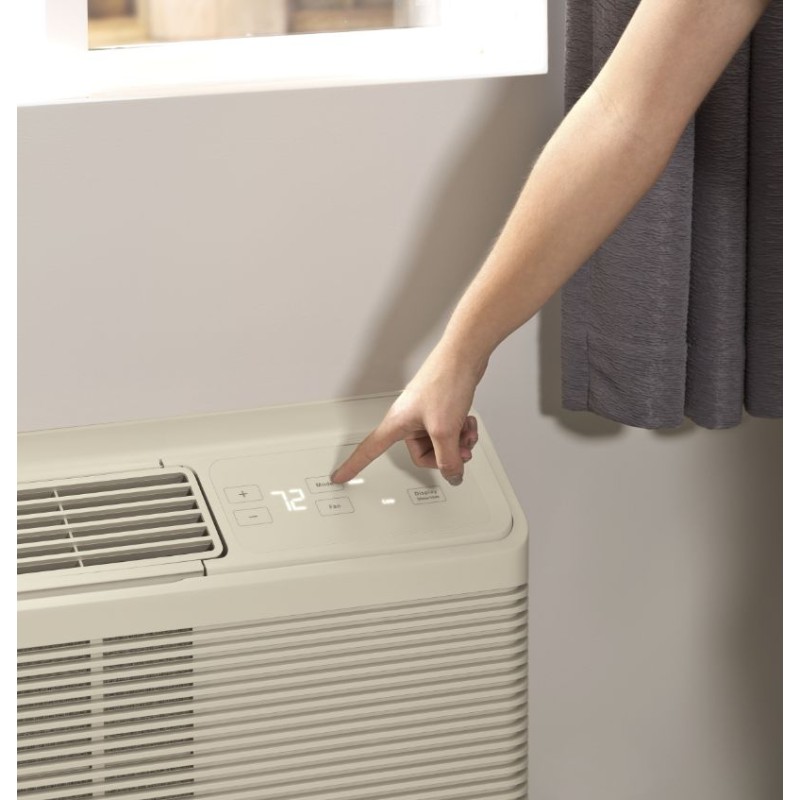

Electronic touch controls with LED display
Simplified structure :
- Easy to maintain and service
- Cooling capacity
- 9,400/9,300 BTU
- Dehumidification
- 2.7 pints/hour
- Indoor fan CFM (high/low)
- 409/280
- Fresh air vent CFM (fully open high fan)
- 38

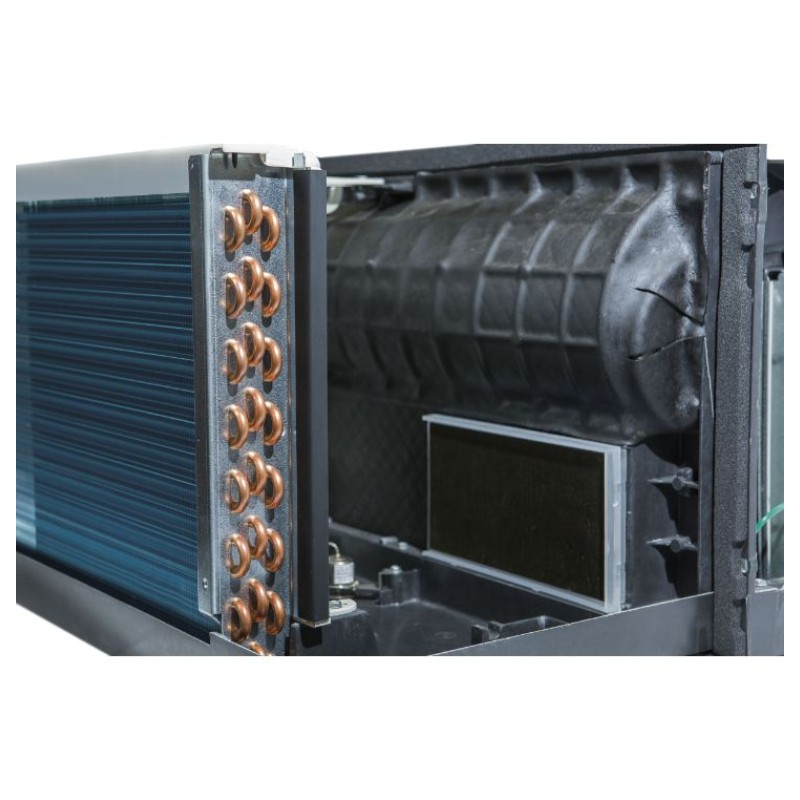

- Corrosion resistant
- Extends life of the unit in sea coast areas/corrosive environments
Specs & Details :
- Sensible Heat Ratio : 64%

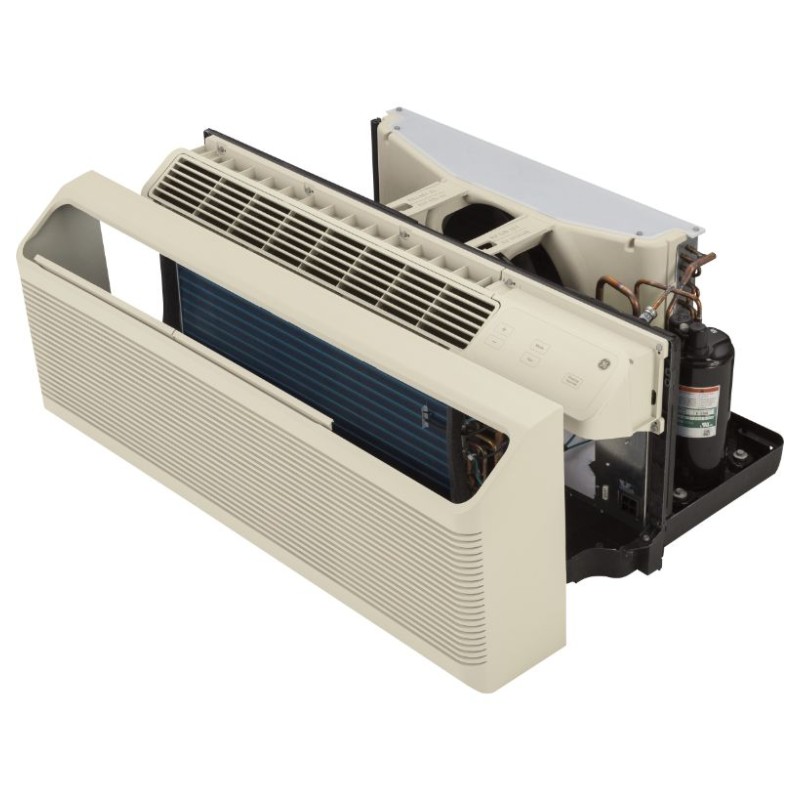

- Chassis Type : Slide-In

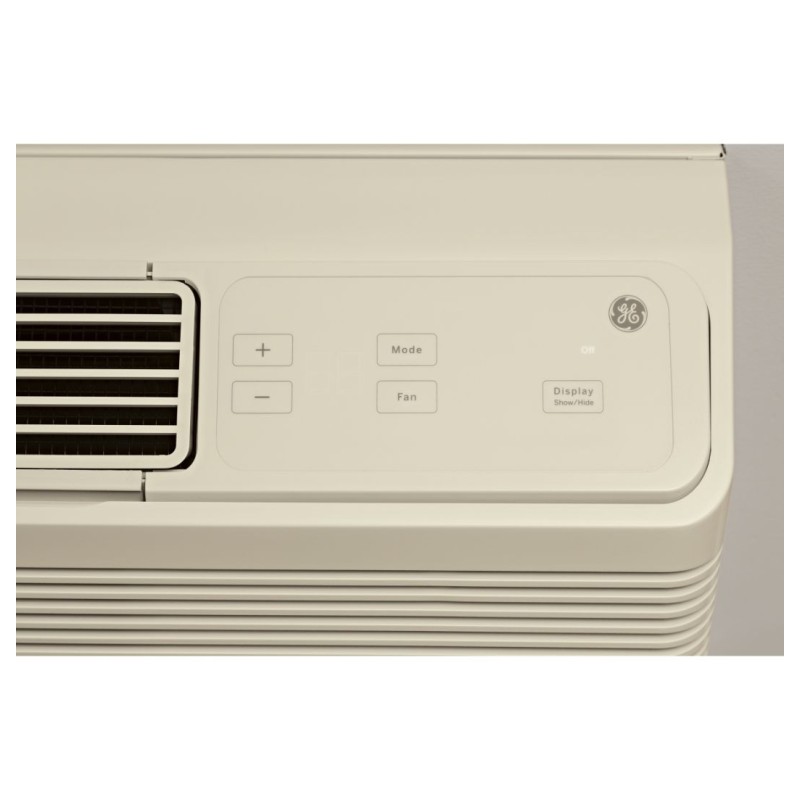

- Control Type : Coverless Backlit White LED Touch Controls
- Corrosion Treated : Yes
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating

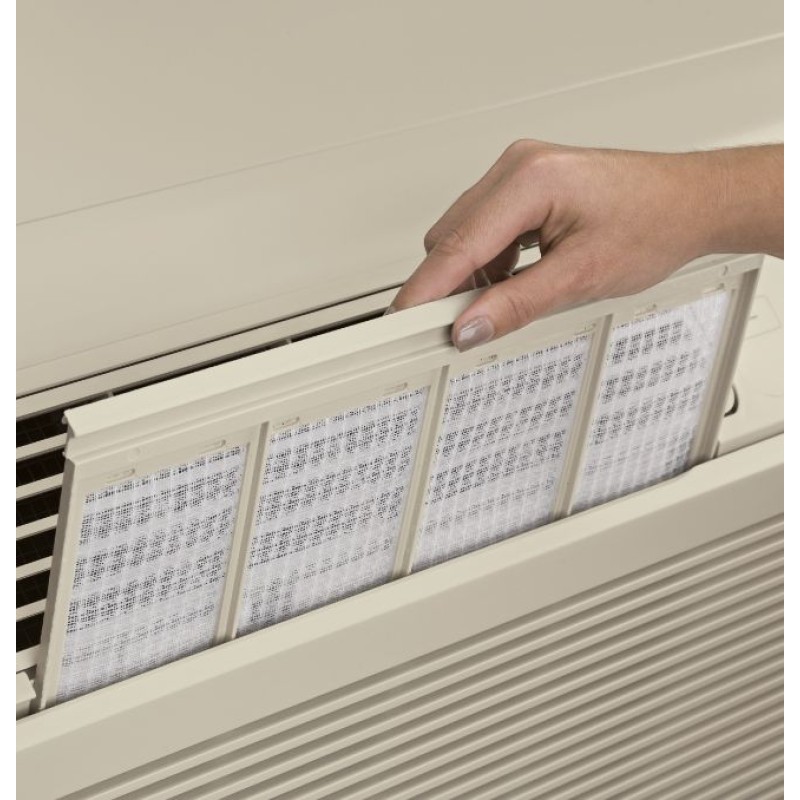

Filter Type :
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions
- Vent Air Filter
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow

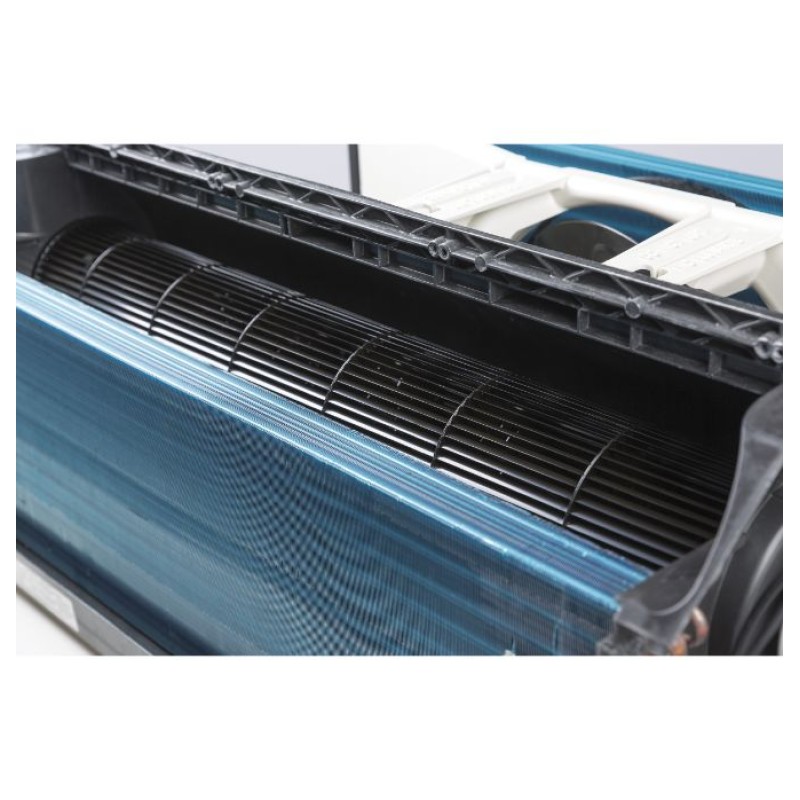

- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Universal Heaters
- Weather Protected Electrical Components
Temperature Range : 60 - 85 F
CAPACITY :
- Cooling BTUH (MIN) : 9300.0 Btu
- Cooling BTUH (MAX) : 9400.0 Btu
- Cooling EER (BTUH / Watt) : 11.8/11.8
- CFM Indoor Fan High : 343
- CFM Indoor Fan Low : 260
- Dehumidification (pts./hr.) : 2.7
- Vent CFM (high fan at zero ESP) : 38
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS
- Cooling - Amperes; F.L. - Cooling : 3.5/3.9
- Cooling - Amperes; L.R. : 21.0
- Cooling - Watts : 795/790
- Power Factor : 98
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- NRCAN
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
Labor Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
Warranty Notes : See written warranty for full details
