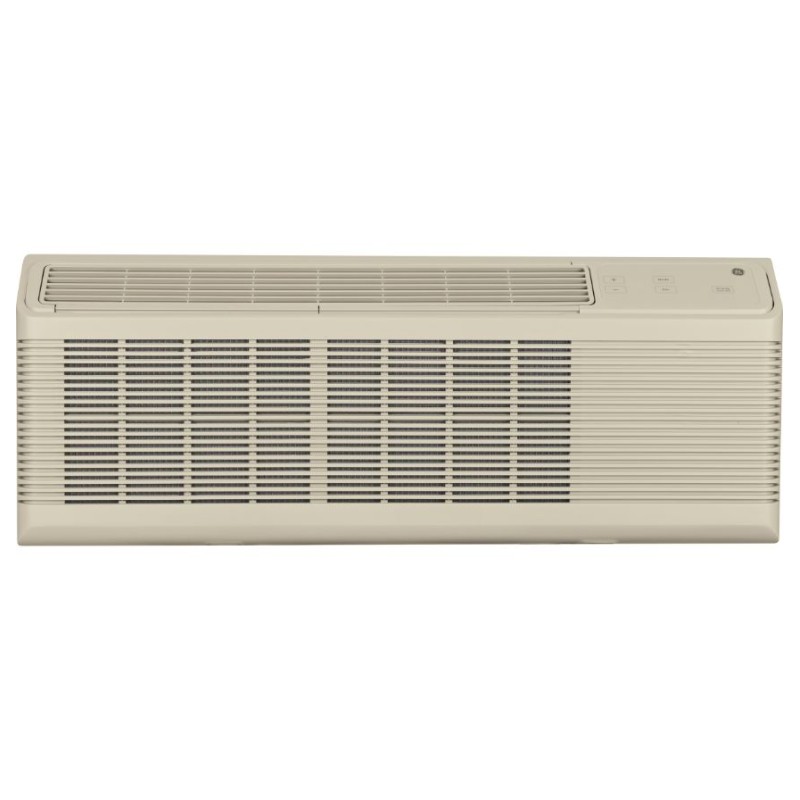

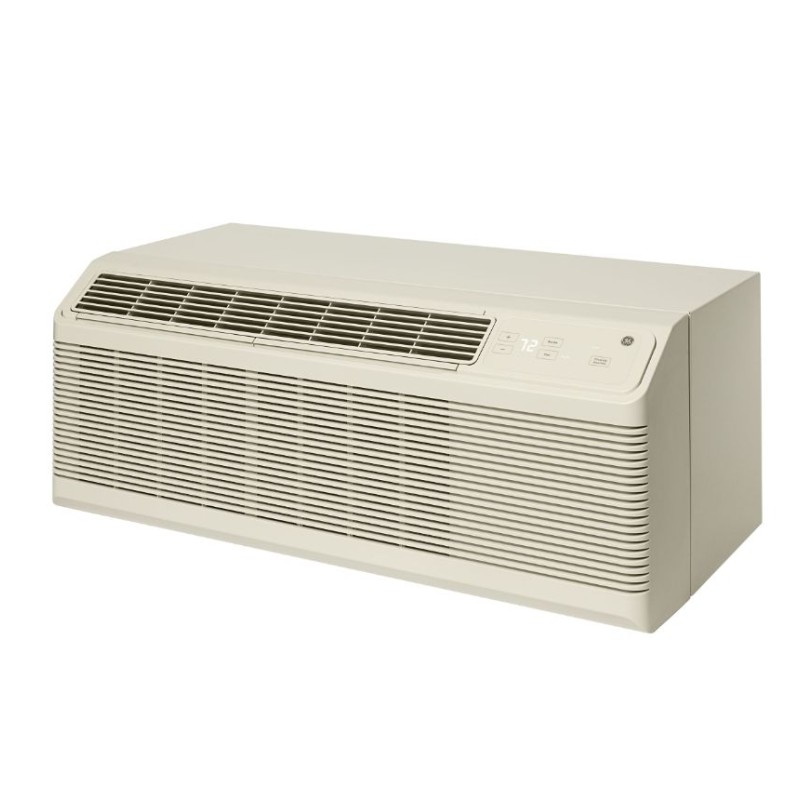

GE Zoneline Cooling and Electric Heat Unit, 230/208 Volt
SKU : AZ45E15DAB
About this Product :Energy efficiency :
10.5/10.5 EERQuiet operation :
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

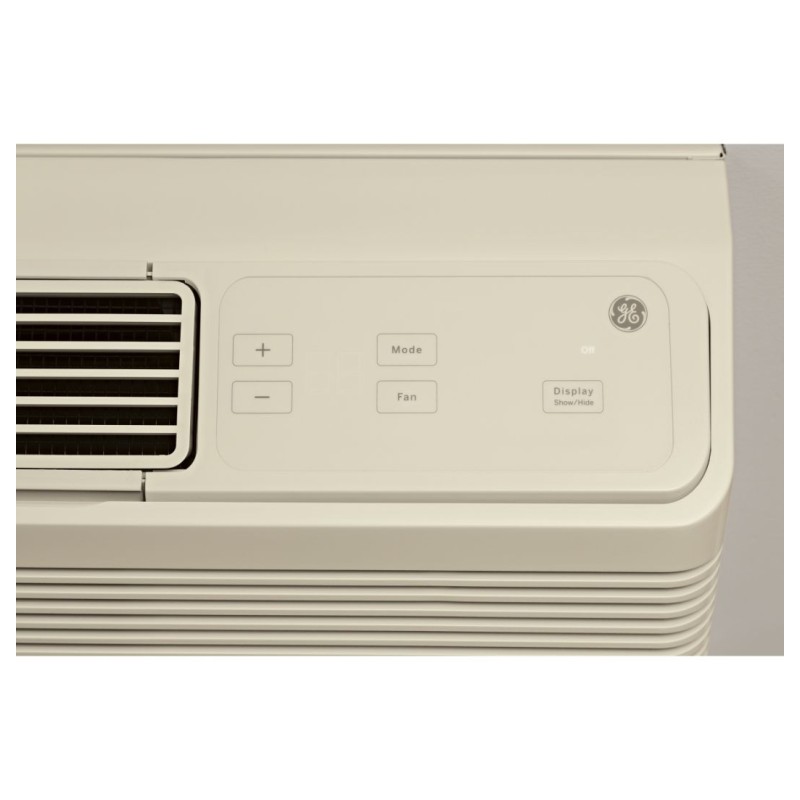

Electronic touch controls with LED display
Simplified structure :
Easy to maintain and service
- Cooling capacity
- 14,900/14,800 BTU
- Dehumidification
- 4.6 pints/hour
- Indoor fan CFM (high/low)
- 449/300
- Fresh air vent CFM (fully open high fan)
- 47
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
Specs & Details :
- Sensible Heat Ratio : 63%
- Chassis Type : Slide-In
- Control Type : Coverless Backlit White LED Touch Controls
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions

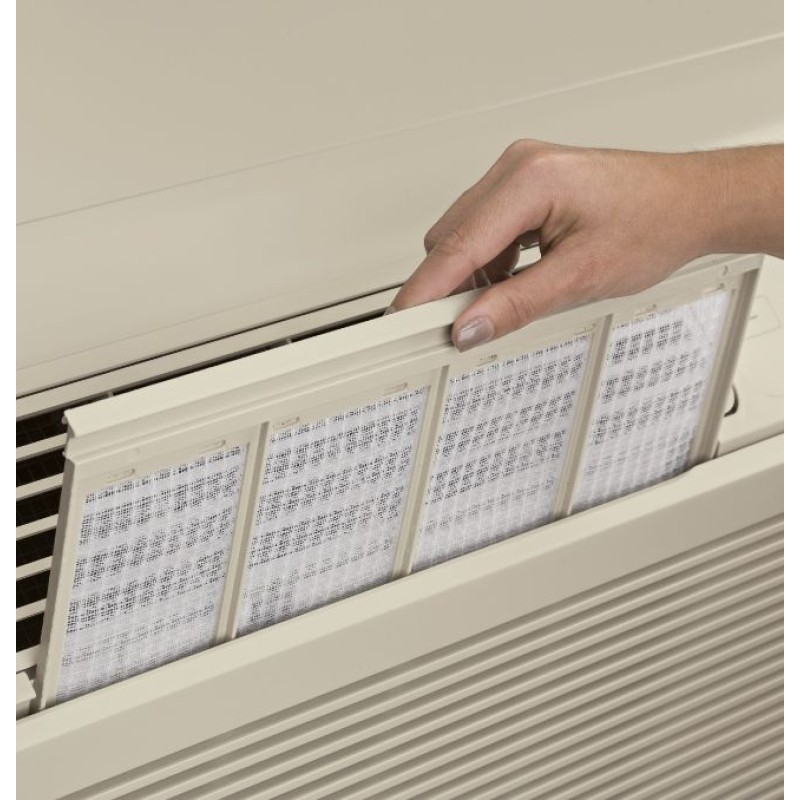

- Vent Air Filter
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Sentinel (85F)
- LCDI Power Cord
- Proportional - Integral ID Airflow

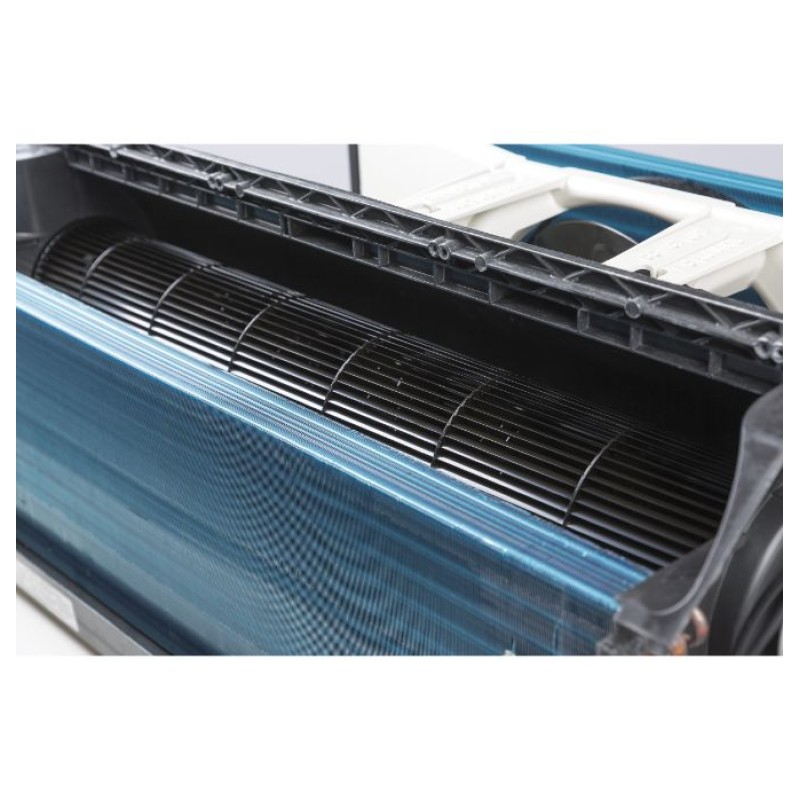

- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 14800.0 Btu
- Cooling BTUH (MAX) : 14900.0 Btu
- Cooling EER (BTUH / Watt) : 10.5/10.5
- CFM Indoor Fan High : 435
- CFM Indoor Fan Low : 330
- Dehumidification (pts./hr.) : 4.6
- Vent CFM (high fan at zero ESP) : 47
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 6.4/6.8
- Cooling - Amperes; L.R. : 31.5
- Cooling - Watts : 1415/1405
- Power Factor : 97
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- NRCAN
- California Prop 65
WARRANTY : Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
