Area LED LightingEROS Series LED Area Fixture, Low Profile, External Heat Sink designed to provide the best thermal dissipation.Optical System Designed for School Campuses, Storage Areas, Parking Lots, Recreational Parks. EROS light fixture has a wide Light Distribution.
Warranty : 10 year/100,000 hour Limited Warranty.
Features:
  • Energy Savings : Over 66% compared to HID light sources.
  • Improved Lumen Maintenance.
  • Utilizes High efficient Lumiled LED’s.
  • Operating Temperatures: -30°C ~ 60°C.
  • Driver : 120-277V (MV) or 480V (HV) (Optional).
  • IP65 / IP67 Rated.
  • 0-10 Dimming Driver, Occupancy Sensors, Photo Cell or Wireless Controls (Optional)

Construction:
  • Corrosion-Resistant Aluminum Housing
  • 3 Mil Powder Coat Finish.
  • CL-Optical System (Standard)
  • Silicone Gasket to provide Weather-Tight Protection (IP66).

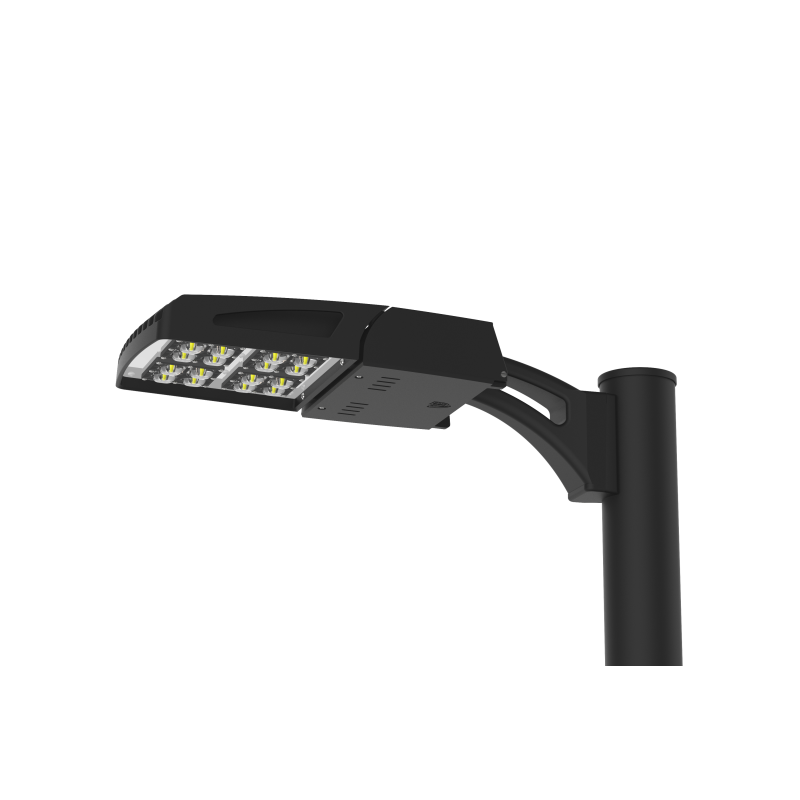

  • Mounting: Sweep Arm Over of a 4” or 5” Round or Square Pole
(Other Options: Slip Fitter or Swivel Bracket)Cat # : EROS
  • Modules : 1 Module (1M)
  • Wattage : 20W (20CLED)
  • Light Dist. : Type 2 (T2)
  • Color Temp. : 3000K (30K)
  • Voltage : 120-277V (mv)
  • Color : BLACK (BLK)

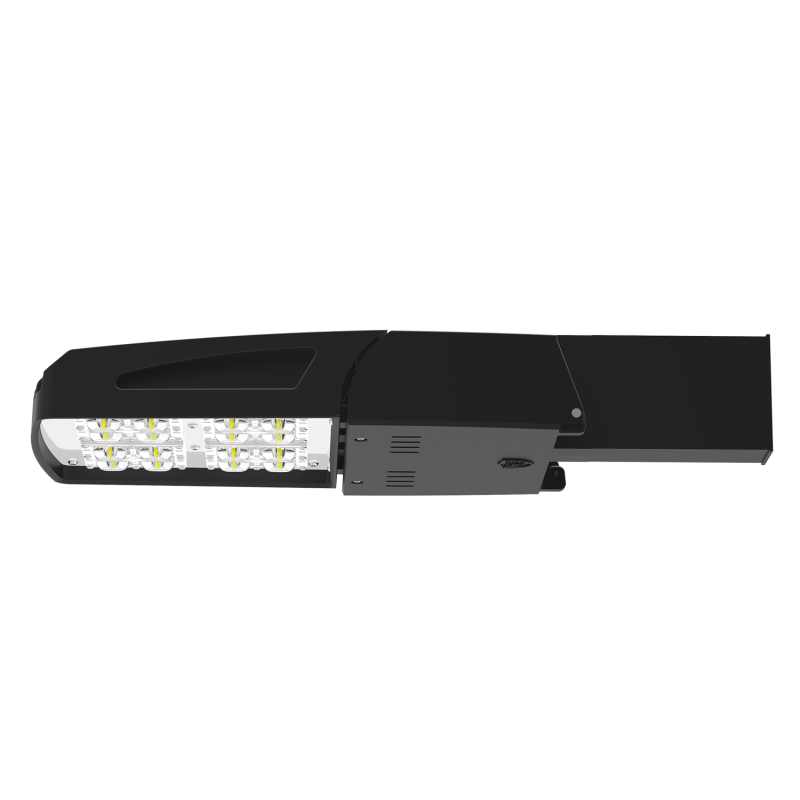

  • Mounting : 6” Extruded Arm (EA6)
  • Options : Motion Sensor (OCC)

Cat # : (ERS)
  • Modules : --------
  • Wattage : 30W (30CLED)
  • Light Dist. : Type 3 (T3)
  • Color Temp. : 4000K (40K)
  • Voltage : 480V (480)
  • Color : WHITE (WH)
  • Mounting : Sweep Arm (SA)
  • Options : Button Photo Cell (PC)

  • Modules : 2 Modules (2M)
  • Wattage : 50W (50CLED)
  • Light Dist. : Type 4 (T4)
  • Color Temp. : 5000K (50K)
  • Color : BRONZE (BRZ)
  • Mounting : Slip Fitter (SF)
  • Options : Wireless Control (WC)

  • Modules : --------
  • Wattage : --------
  • Light Dist. : Type 5 (T5)
  • Color : SILVER (SIL)
  • Mounting : Swivel Bracket (SB)
  • Options : 7Pin Photo Cell (7PIN)

  • Modules : 3 Modules (3M)
  • Wattage : 80W (60CLED)
  • Color : GRAPHITE (GPH)

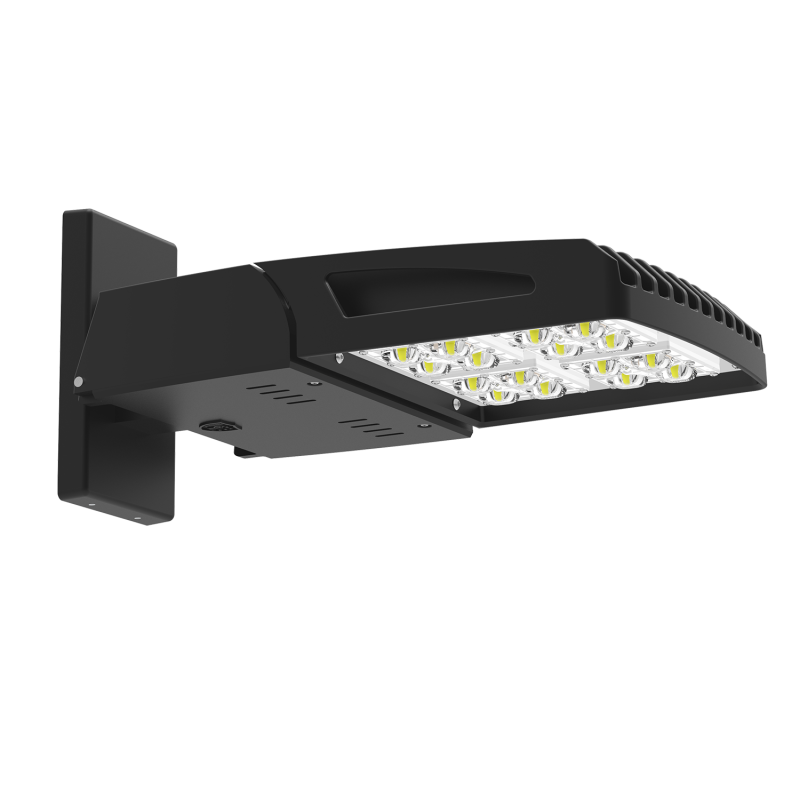

  • Mounting : Wall Mount (WM)

  • Modules : --------
  • Wattage : 100W (100CLED)
  • Color : MARINE GRADE (MG)

  • Modules : 4 Modules (4M)
  • Wattage : --------

Wattage : 120W (120CLED)Wattage : 150W (150CLED)Wattage : 180W (180CLED)Wattage : 200W (200CLED)
Dimensions :

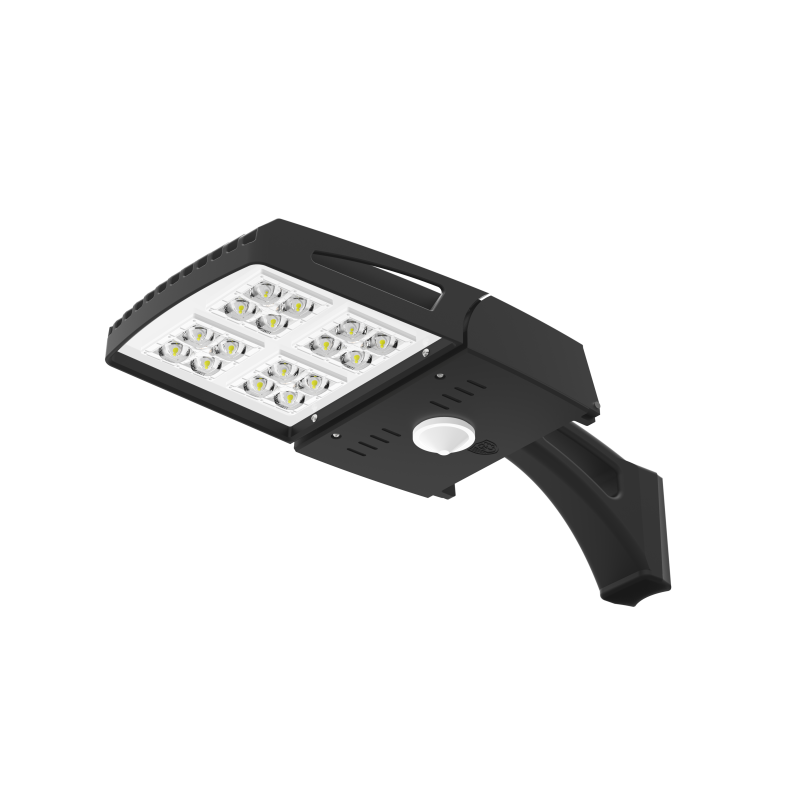

Cat# : ERS-SA
  • A : 25” 7/8
  • B : 3” 1/4
  • EPA : 0.49

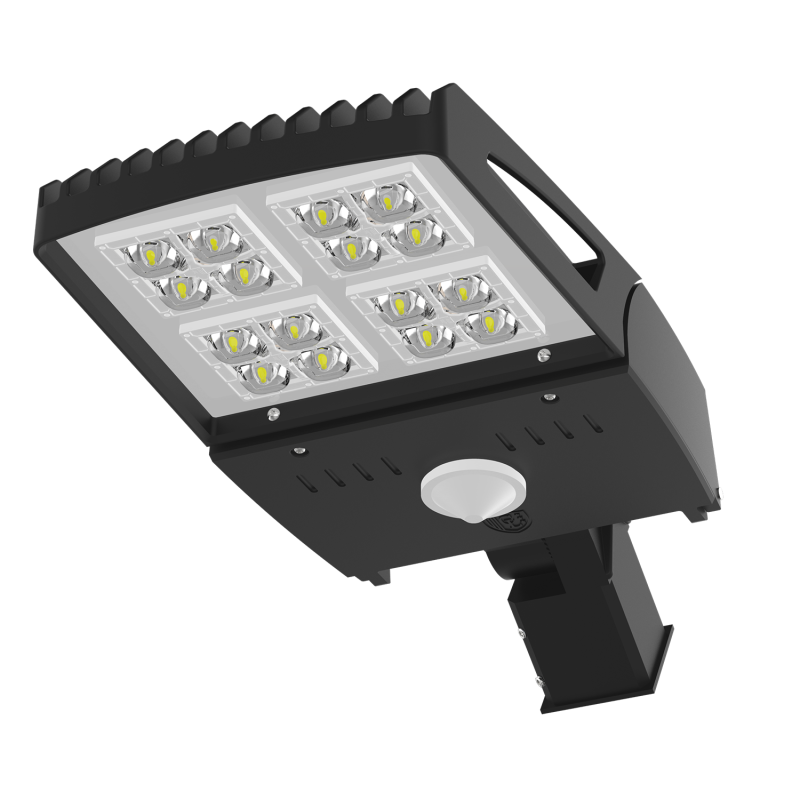

Cat# : ERS-SF
  • A : 24” 5/8
  • B : 3” 1/4
  • EPA : 0.45

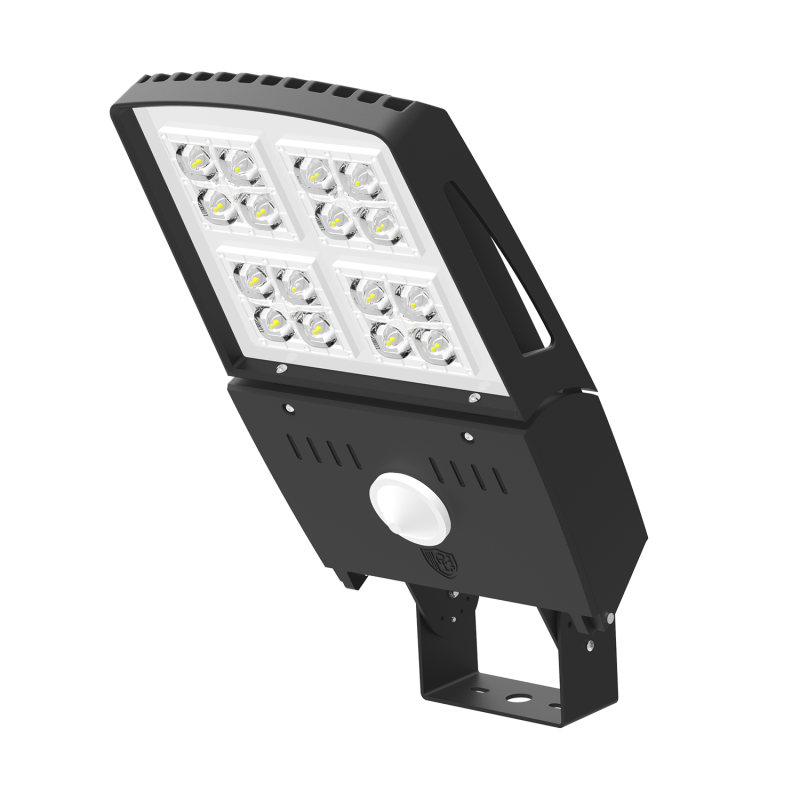

Cat# : ERS-SB
  • A : 22” 7/8
  • B : 3” 1/4
  • EPA : 0.4

Cat # : ERS-1M-20CLED
  • Input Power : 25W
  • Lumen Output : 3120
  • LPW : 156
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 50W HPS

Cat # : ERS-1M-40CLED
  • Input Power : 45W
  • Lumen Output : 5475
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 150W HPS

Cat # : ERS-1M-50CLED
  • Input Power : 55W
  • Lumen Output : 6548
  • LPW : 130
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 150W HPS

Cat # : ERS-2M-80CLED
  • Input Power : 85W
  • Lumen Output : 10950
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 250W MH

Cat # : ERS-2M-100CLED
  • Input Power : 105W
  • Lumen Output : 12,997
  • LPW : 129
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 400W PSMH

Cat # : ERS-3M-120CLED
  • Input Power : 125W
  • Lumen Output : 16426
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 400W HPS

Cat # : ERS-3M-150CLED
  • Input Power : 155W
  • Lumen Output : 19526
  • LPW : 130
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 40WHPS

Cat # : ERS-4M-180CLED
  • Input Power : 185W
  • Lumen Output : 23974
  • LPW : 133
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 750W MH

Cat # : ERS-4M-200CLED
  • Input Power : 205W
  • Lumen Output : 25995
  • LPW : 129
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 750W PS
