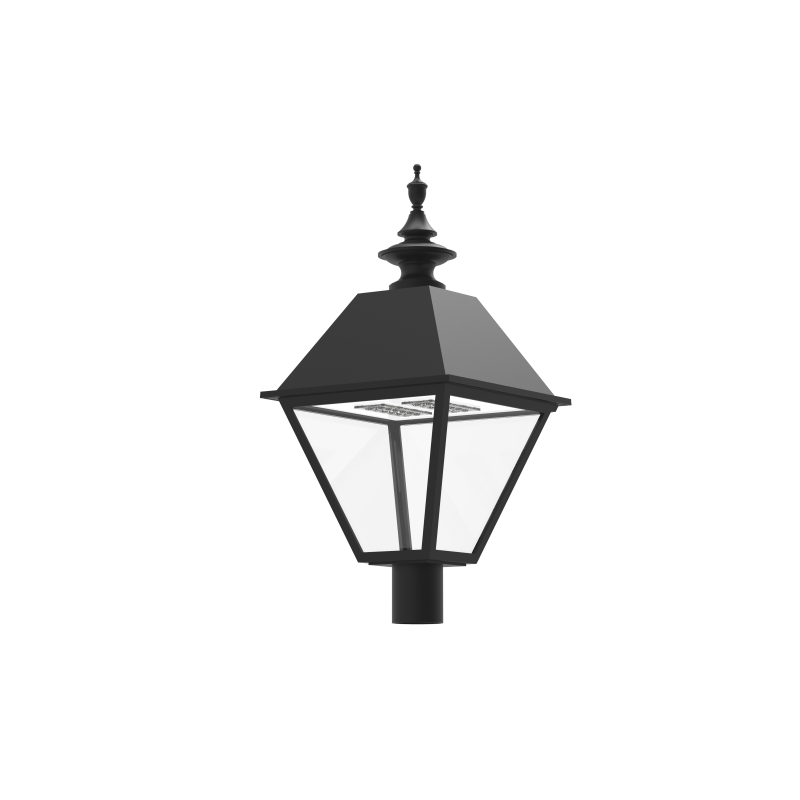

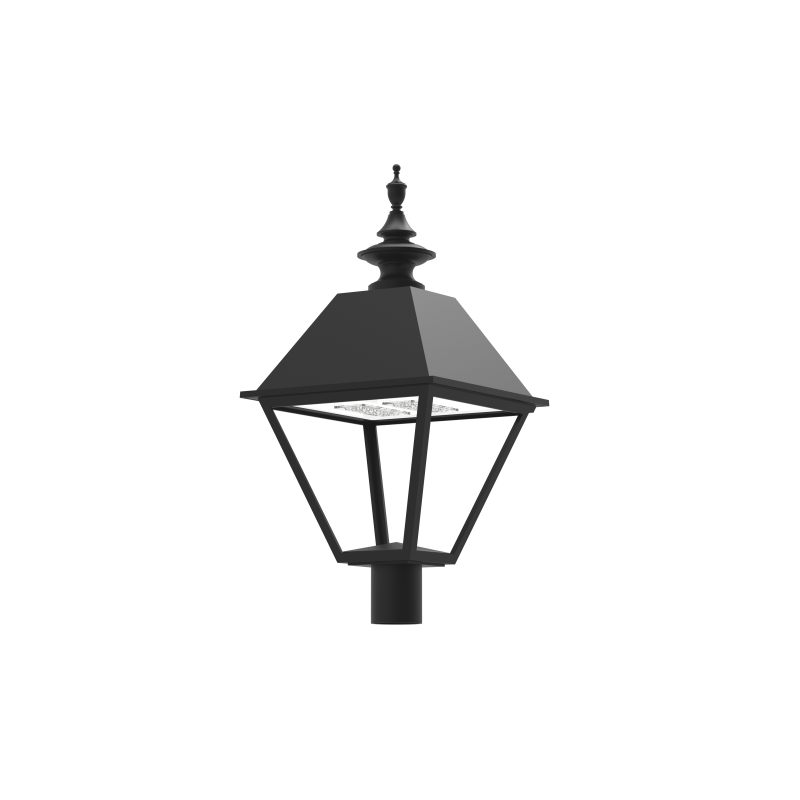

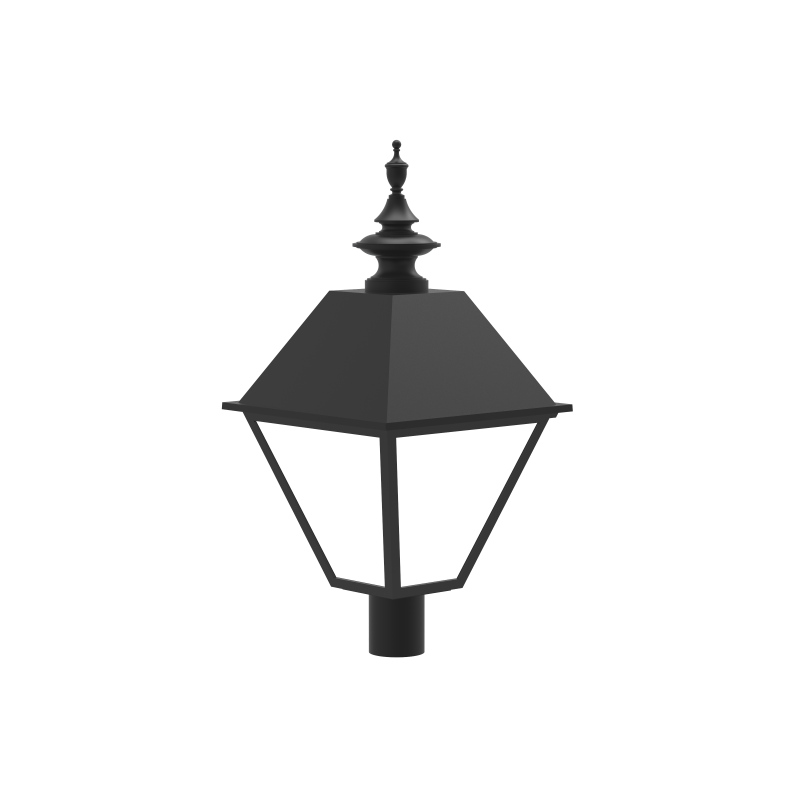

CLP-X50

Architectural Traditional Design with Modern Technology, Neighborhood Friendly, Dark Sky LED Luminaire. CLP-X50 is suitable for: Townships, Parks, Walkways, Housing Communities, and Driveways.

-10 year/100,000 hour limited warranty.

Features :

• Housing is heavy-duty Cast Aluminum.
• 3 mil. Powder Coat Finish
• Optic: Type 3 and Type 5.
• Silicone Gasket to prevent leakage and provide IP-65 Protection.
• Mounting: Mount on over 3” O.D (Standard).

CLP-X50 up to 100W (15,561lms)

Cat# : CLP-X50

Wattage :

• 20W (20CLED)
• 40W (40CLED)
• 50W (50LED)
• 60W (60LED)
• 70W (70LED)
• 100W (100LED)

Light Dist. :

• Type 3 (T3)
• Type 5 (T5)

COLOR Temp. :

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

VOLTAGE :

• 120-277V (mv)
• 480V (HV)

Mounting (Over) :

• 3" Fitter (3R)
• Pendant Mount Stem Come with 1/2 coupling
• 1" (pm1)
• 2" (pm2)
• 3" (pm3)
• 4" (pm4)

Finish :

• BLACK (BLK)
• WHITE (WH)
• BRONZE (BRZ)
• GRAY (GRY)
• GRAPHITE (GPH)
• MARINE GRADE (MG)

OPTIONS :

• Clear Acrylic Lens (CAL)
• Frosted Acrylic Lens (FAL)
• Clear Glass Lens (CGL)
• Button Photo Cell (PC)
• Motion Sensor (OCC)
• Wireless Control (WC)

Dimensions

Cat# : CLP-X50

• A : 36" 1/2
• B : 17" 5/8
• EPA : 1.99

Cat# : CLP-X50-20CLED

• Input Power : 25W
• Lumen Output : 3,650
• LPW : 182
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 100w MH

Cat# : CLP-X50-40CLED

• Input Power : 45W
• Lumen Output : 6,492
• LPW : 162
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 150w HPS

Cat# : CLP-X50-50CLED

• Input Power : 55W
• Lumen Output : 7,780
• LPW : 155
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w MH

Cat# : CLP-X50-60CLED

• Input Power : 65W
• Lumen Output : 8,539
• LPW : 142
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w PSMH

Cat# : CLP-X50-70CLED

• Input Power : 75W
• Lumen Output : 9,986
• LPW : 142
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w HPS

Cat# : CLP-X50-100CLED

• Input Power : 105W
• Lumen Output : 15,561
• LPW : 155
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 300w MH
