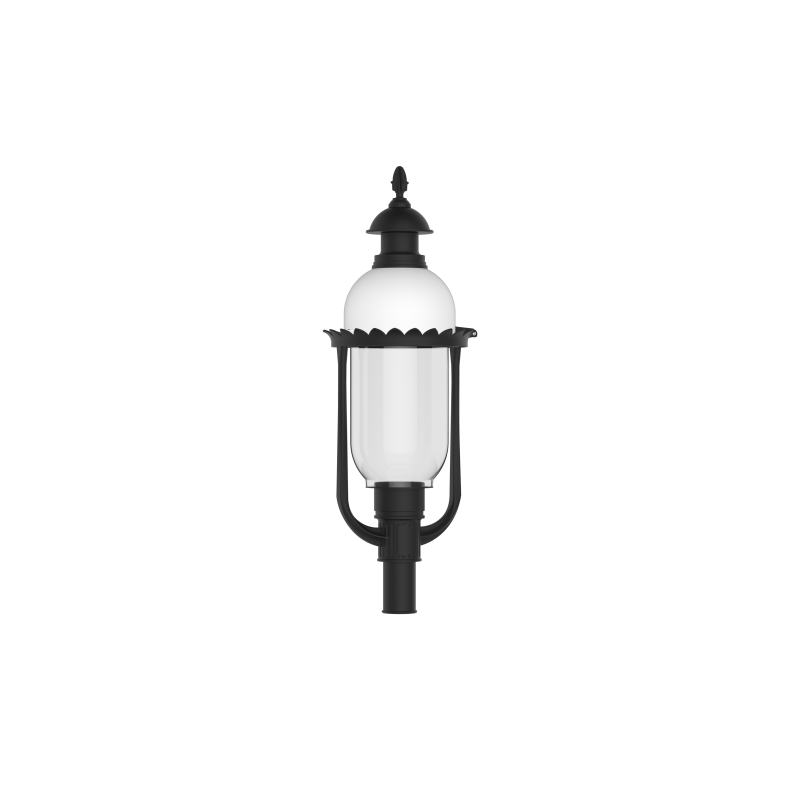

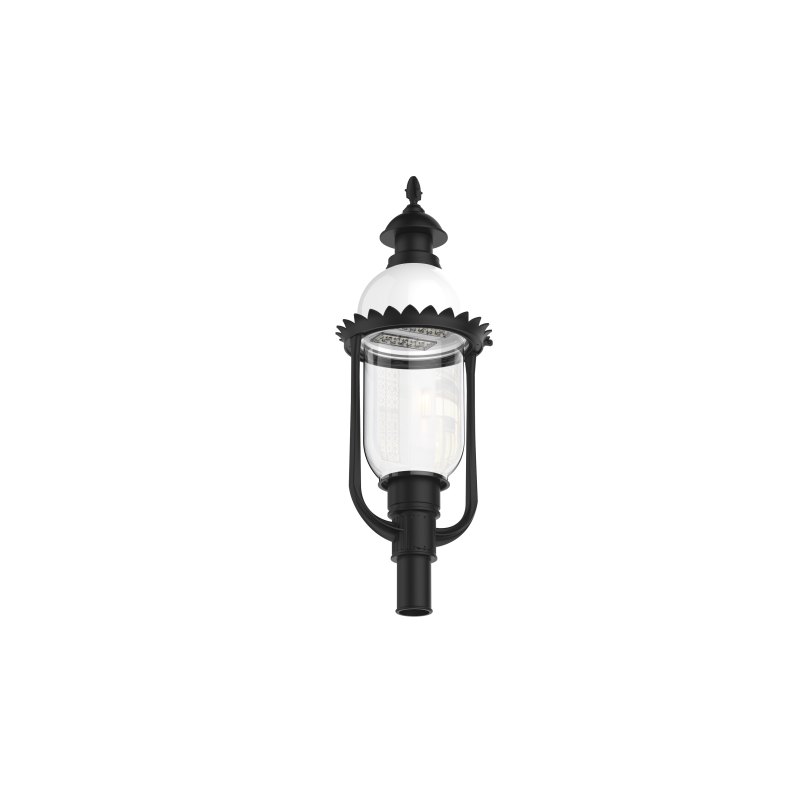

CLP-X47

Architectural LED Lighting
CLP-X47, has a sophisticated and unique design. It is ideal for illuminating spaces such as: parking areas, entrances, walkways, parks, etc. While suitable for wet locations, this light fixture also offers a wide light distribution.

-10 year/100,000 hour limited warranty.

Features :

• Housing is heavy-duty Cast Aluminum.
• 3 mil. Powder Coat Finish
• Optics Type 2,3,4 and Type 5 Clear Optic.
• Silicone Gasket to prevent leakage and provide IP-66 Protection.

CLP-X47   up to 60W (6492lms)
CLP-X47   up to 120W (16,984lms)
CLP-X47   up to 200W (43,620lms)

Cat# : CLP-X47


Wattage :

• 20W (20CLED)
• 40W (40CLED)
• 50W (50LED)
• 60W (60LED)
• 70W (70LED)

Light Dist. :

• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)
• Type 5 (T5)

COLOR Temp. :

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

VOLTAGE :

• 120-277V (mv)
• 377V (347)
• 480V (480)

Mounting (Over) : 3" Fitter (3R)

Finish :

• BLACK (BLK)
• WHITE (WH)
• BRONZE (BRZ)
• GRAY (GRY)
• GRAPHITE (GPH)
• MARINE GRADE (MG)

OPTIONS :

• Button Photo Cell (PC)
• Motion Sensor (OCC)
• Wireless Control (WC)
• Frosted Acrylic Lens (FAL)

Dimensions

Cat# : CLP-X47

• A : 49" 1/2
• B : 17"
• EPA : 2.9

Cat# : CLP-X47-20CLED

• Input Power : 25W
• Lumen Output : 3,650
• LPW : 182
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 100w MH

Cat# : CLP-X47-40CLED

• Input Power : 45W
• Lumen Output : 6,492
• LPW : 162
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 150w HPS

Cat# : CLP-X47-50CLED

• Input Power : 55W
• Lumen Output : 7,780
• LPW : 155
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w MH

Cat# : CLP-X47-60CLED

• Input Power : 65W
• Lumen Output : 8,539
• LPW : 142
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w PSMH

Cat# : CLP-X47-70CLED

• Input Power : 75W
• Lumen Output : 9,986
• LPW : 142
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• Input Frequency : 50/60HZ
• HID Equivalent : 250w HPS
