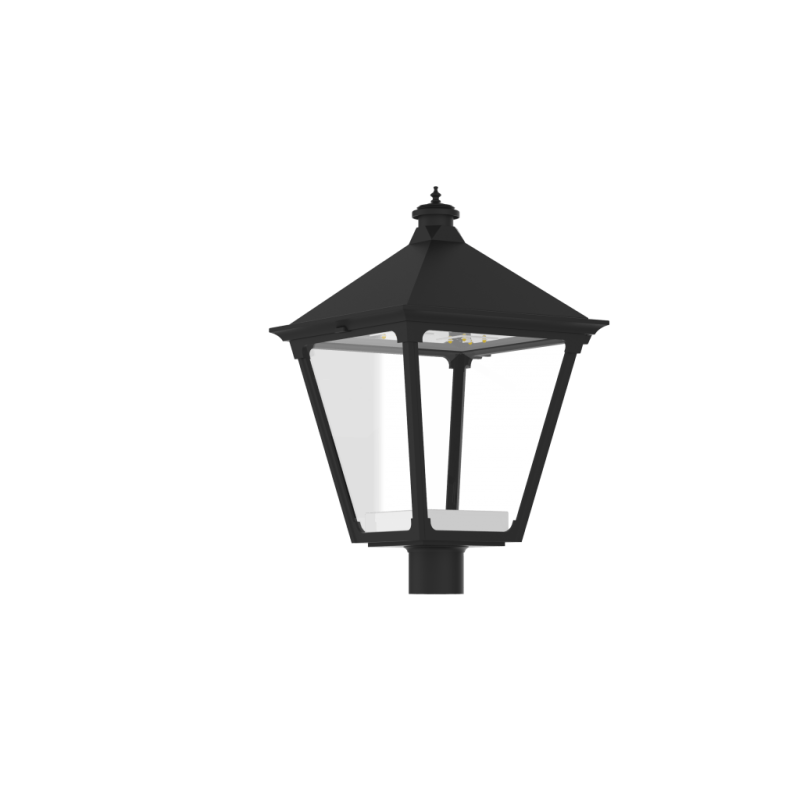

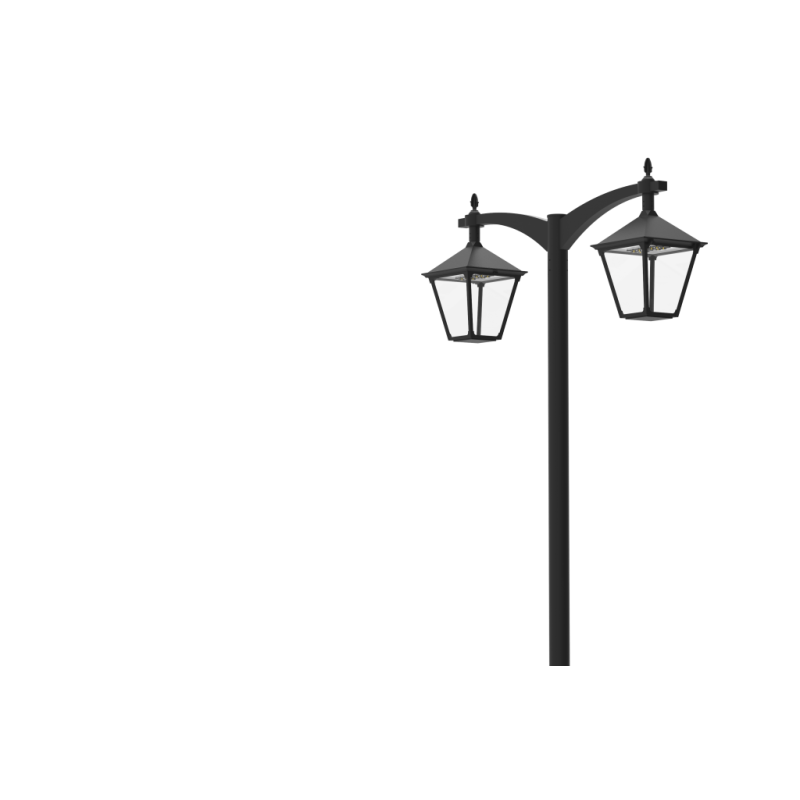

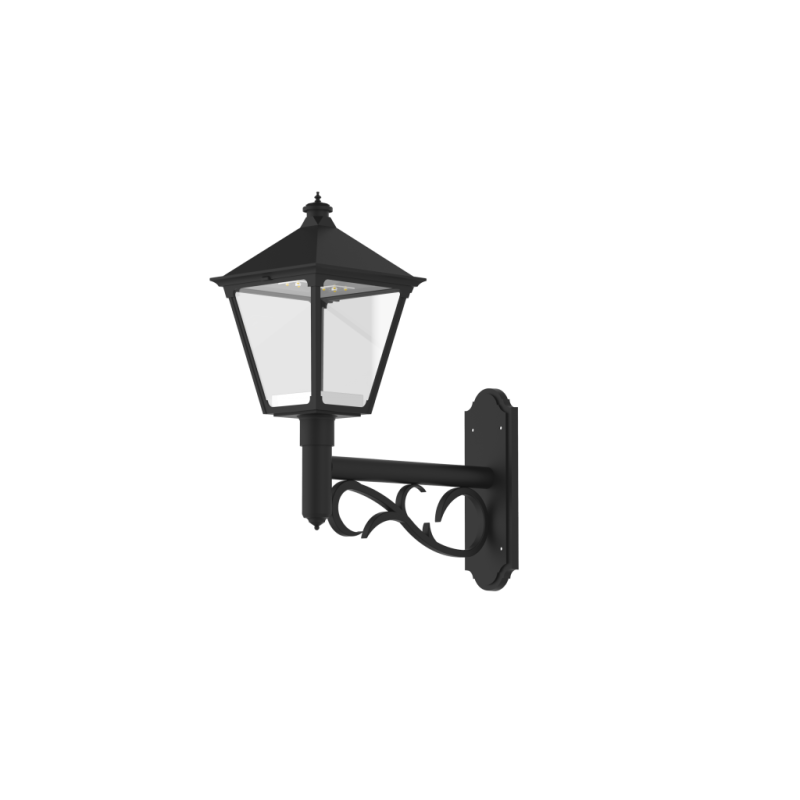

CLP-TC

Architectural LED Lighting
CLP-TC has an elegant design that adds style and class to any location. A few locations that this fixture is suitable for are: townships, parks, walkways, housing communities, and driveways. Internally, The CLP-TC is durable, reliable and designed to tolerate wet locations.

-10 year/100,000 hour limited warranty.

• Housing is heavy-duty Cast Aluminum.
• 3 mil. Powder Coat Finish
• Optics Type 2,3,4 and Type 5 Clear Optic.
• Silicone Gasket to prevent leakage and provide IP-66 Protection.

CLP-TC up to 100W (14,110lms)

Cat# : CLP-TC

Wattage :

• 40W (40CLED)
• 50W (50CLED)
• 60W (60CLED)
• 100W (100CLED)

Light Dist. :

• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)
• Type 5 (T5)

COLOR Temp. :

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

VOLTAGE :

• 120-277V (mv)
• 480V (HV)

COLOR :

• BLACK (BLK)
• WHITE (WH)
• BRONZE (BRZ)
• GRAPHITE (GPH)
• MARINE GRADE (MG)
• CUSTOM (CST)

OPTIONS :

• Button Photo Cell (PC)
• Wattage Adjuster (WA)
• House Side Shield (HSS)
• Opal Acrylic Lens (OAL)
• No Lens (NL)

Dimensions :

Cat# : CLP-TC

• A : 26"
• B : 15" 1/2
• EPA : 1.48

Cat# : CLP-TC-40CLED

• Input Power : 40W
• Lumen Output : 6,492
• LP/W : 162
• Color Temp (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Input Voltage : 120-277V
• Input Frequency : 50/60HZ

Cat# : CLP-TC-50CLED

• Input Power : 50W
• Lumen Output : 7,055
• LP/W : 141
• Color Temp (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Input Voltage : 120-277V
• Input Frequency : 50/60HZ

Cat# : CLP-TC-60CLED

• Input Power : 60W
• Lumen Output : 8,466
• LP/W : 141
• Color Temp (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Input Voltage : 120-277V
• Input Frequency : 50/60HZ

Cat# : CLP-TC-100CLED

• Input Power : 100W
• Lumen Output : 14,110
• LP/W : 141
• Color Temp (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Input Voltage : 120-277V
• Input Frequency : 50/60HZ
