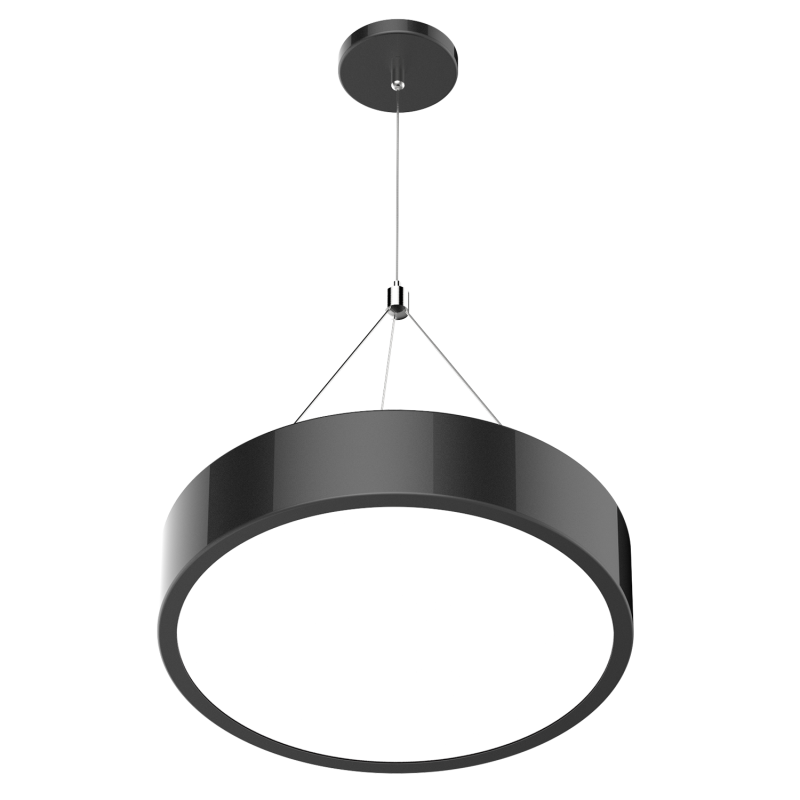

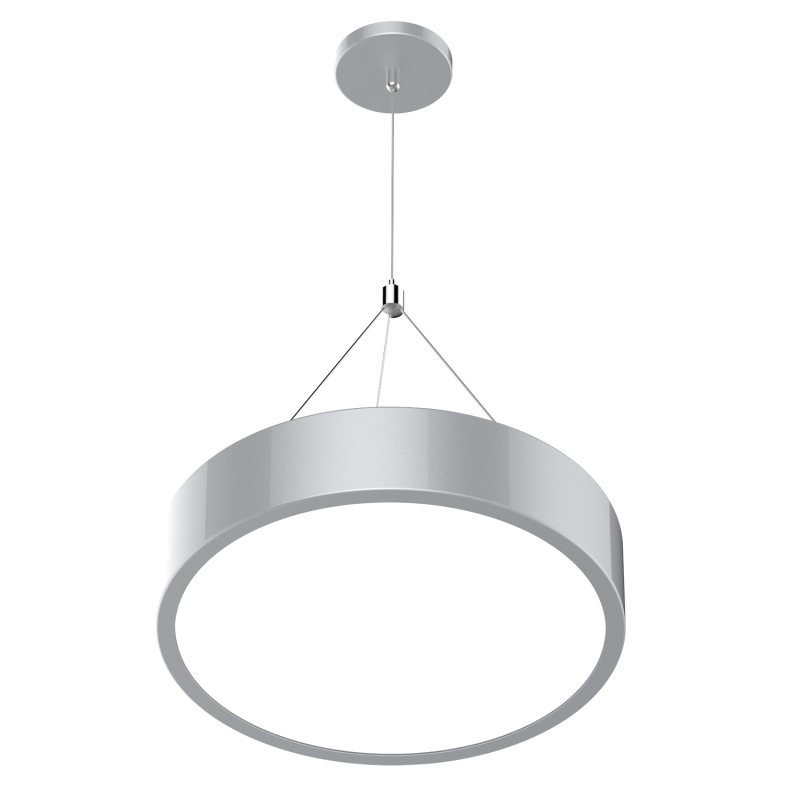

CLH-3052 Series
SKU : CLH-3052 Series
Interior Architectural LED :CLH-3052 is available in three different sizes and in multiple finishes to choose from to suit desired requirements. It also includes an acrylic lens. This ceiling mount fixture is commonly installed in interior facil-ities such as Offices, Restaurants, Indoor Shopping Areas, and Resi-dential Homes.-10 Year Limited Warranty.Features
- Driver 120/277, 0-10v Dimming Driver.
- Available in 30K/80CRI Standard, 40K, 50k or 90CRI (Optional)
- UL listed for damp and wet locations
- Options: EMR.
- Housing Heavy Gauge Aluminum.
- Opal Acrylic Lens (Standard)
- 3 mil Powder Coating
- Wattage : 50W (50CLED)
- Color Temp. : 3000K (30K)
- CRI : 80CRI (80CRI)
- Voltage : 120-277V (MV)
- Lens : Opal Acrylic Lens (AOL)
- Finish : Flat Black (FBLK)
- Mounting : Celing Mount (CM)
- Options : Emergency Battery (EMR)
- Wattage : 150W (150CLED)
- Color Temp. : 4000K(40K), 5000K(50K)
- CRI : 90CRI(90CRI)
- Lens : Frosted Acrylic Lens
- Finish : Silver (SLR)
- Options : Pendant Mount Aircraft Cable Lenght
- Wattage : 200W (200CLED)
- Finish : Custom (CST) (FAL)
- Mounting : 1FT(1AC)
2FT(2AC)
3FT(3AC)
4FT(4AC)
Custom(CST)
Cat# : CLH-3052-S
- A : 4”
- B : 18”
- A : 4”
- B : 24”
- A : 5”
- B : 48”
Cat # : CLH-3052S-50CLED
- Input Power : 55W
- Lumen Output : 3,800
- Color Temp. (CCT) : 3000K
- CRI : 80+
- Life (L70)Rated : >200,000
- Input Voltage : 120-277V
- Input Power : 155W
- Lumen Output : 12,600
- Color Temp. (CCT) : 3000K
- CRI : 80+
- Life (L70)Rated : >200,000
- Input Voltage : 120-277V
- Input Power : 205W
- Lumen Output : 28,000
- Color Temp. (CCT) : 3000K
- CRI : 80+
- Life (L70)Rated : >200,000
- Input Voltage : 120-277V
