CLA-D323

Architectural LED
The CLA-D323 two sizes available, Perfect for Residential Ex-teriors, Walkways, Perimeters, Recreational Parks, and Any Other location that is looking to refurbish their appearance. The CLA-D323 has a wide light distribution and dark sky compliant.

-10 Year 100,000 hour Limited Warranty


FEATURES :

• Energy Savings: Over 66%
• Improved lumen maintenance
• Utilizes high efficient Lumiled LED’s
• Operating temperatures: -30°C ~ 60°C
• Driver: 120-277v, 50/60Hz,
• 10k Surgeprotector Standard
• 0-10 Dimming driver, Micro-wave sensors, Photo Cell or Wire-less controls(optional)

CONSTRUCTION :

• Housing is Heavy-Duty cast aluminum
• 3 Mills Powder Coat Finish.
• Frosted Acrylic Lens (Standard)
• Silicone gasket to prevent leakage and provide weather-tight protection.

Cat #

• CLA-D323 Small (CLA-D323S)
• CLA-D323 Large CLA-D323L)

Wattage

• 5W (5CLED)
• 10W (10CLED)
• 20W (20CLED)
• 30W (30CLED)
• 35W (35CLED)
• 40W (40CLED)

Color Temp.

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

Voltage

• 120-277V(MV)

Finish

• Matte Black (MBLK)
• Glossy Black (GBLK)
• Texture Black (TBLK)
• Texture White (TWHT)
• Silver (SLR)
• Bronze (BRZ)
• Graphite (GPH)
• Copper Vein (CPV)
• Silver Vein(SLV)
• Oil Rubbed Bronze (ORB)

Mounting

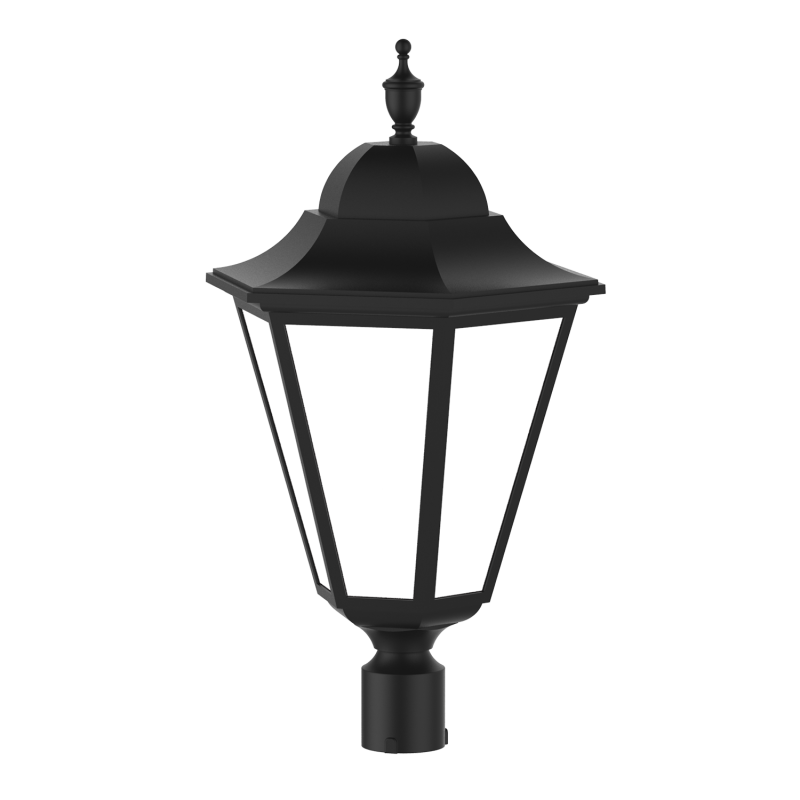

• Post Top 3”OD (PM3)
• 2Cluster Post Top 3”OD (2CPM3)

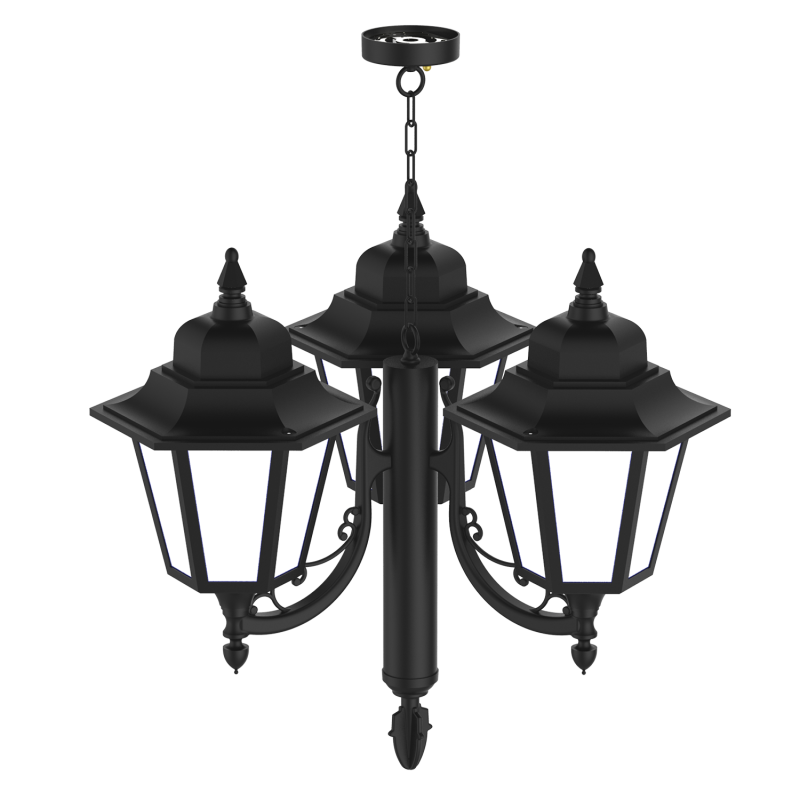

• 3Cluster Post Top 3”OD (3CPM3)

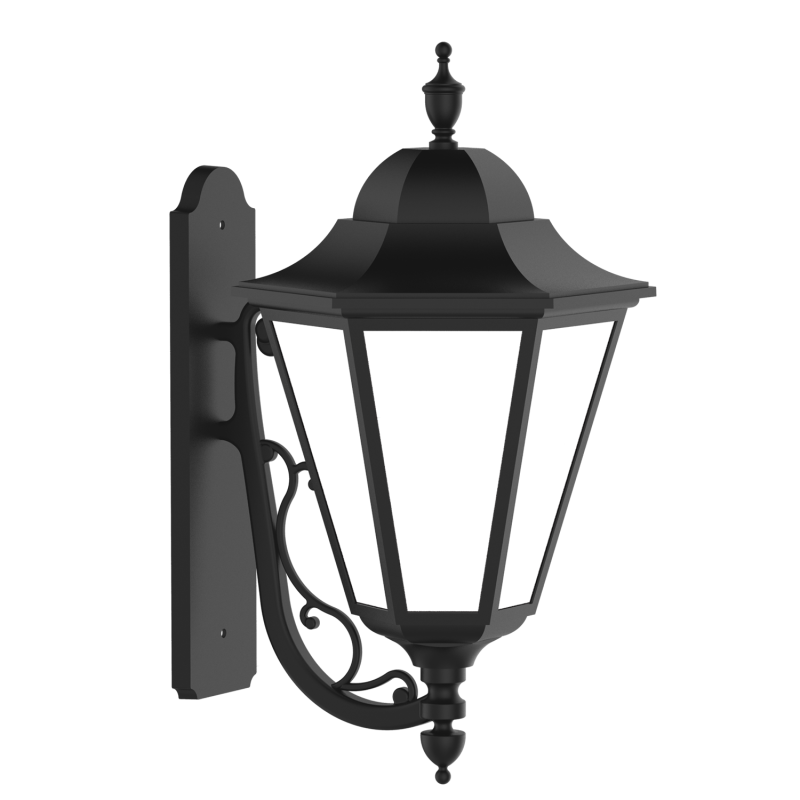

• Wall Mount (WM)

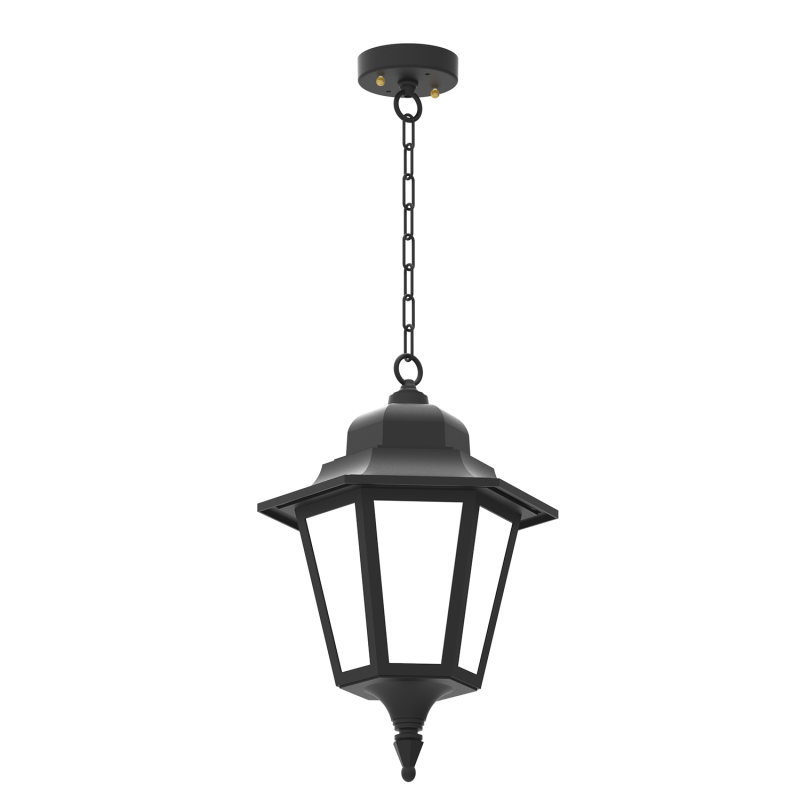

• Pendant Mount Chain (PMC)/ 1/2 Stem (PM)
• 1ft (PMC1)/(PM1)
• 2Ft (PMC2)/(PM2)
• 3Ft (PMC3)/(PM3)

Options

• Button Photocell (PC)
• Opal Acrylic  Lens (OAL)
• Micro Wave Sensor (MWS)


Cat# : CLA-D323S

• A : 8’’ 1/2
• B : 12” 1/8
• C : 18” 7/8

Cat# : CLA-D323L

• A : 11” 1/8
• B : 16” 1/2
• C : 29” 5/8

Cat# : CLA-D323S-5CLED

• Input Power : 10W
• Lumen Output : 918
• LPW : 183
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CLA-D323S-10CLED

• Input Power : 15W
• Lumen Output : 1,914
• LPW : 191
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CLA-D323S-20CLED

• Input Power : 25W
• Lumen Output : 2,935
• LPW : 183
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CLA-D323L-30CLED

• Input Power : 35W
• Lumen Output : 4,842
• LPW : 146
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CLA-D323L-35CLED

• Input Power : 40W
• Lumen Output : 5,320
• LPW : 161
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CLA-D323L-40CLED

• Input Power : 45W
• Lumen Output : 6,252
• LPW : 152
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
