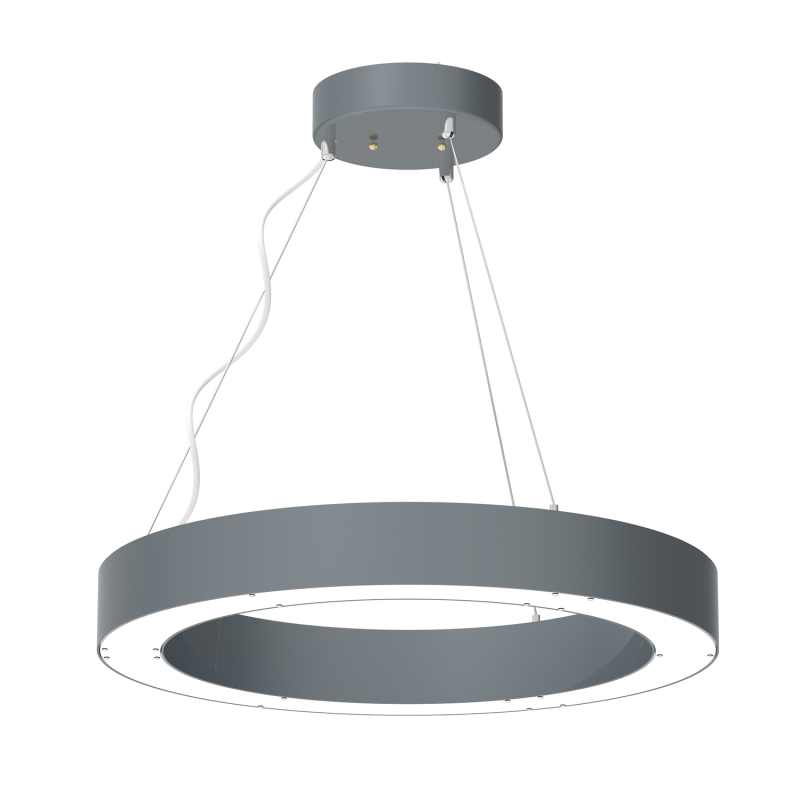

CL-RNG Series

Interior Architectural LED The CLH-RNG Architectural Luminaire, slim Profiles with Ro-bust Construction. Lighting Solution for modern Offices, Public Areas, Libraries and other Indoor Spaces. CL-RGN is Available in 2’, 3’ and 4’ OD.CL-RNG includes a White Cord along with Stainless Steel Aircraft Cables.

-10 Year Limited Warranty.

FEATURES :

• Driver 120/277, 0-10v Dimming Driver.
• Available in 30K/80CRI Standard, 40K, 50K or 90CRI are Optional
• Lumileds Flex LED strip
• Suitable for damp locations
• White cord (included)
• Stainless Steel Adjustable Aircraft Cables

CONSTRUCTION :

• Material: Aluminum Housing
• 3 Mils Powder Coating
• Frosted Acrylic Lens (standard)

Cat #

• CL-RING 24”(CL-RNG1)
• CL-RING 36” (CL-RNG2)
• CL-RING 48”(CL-RNG3)

Dimensions :

Cat# : CL-RNG1

• A : 24”
• B : 3”
• C : 1”1/2

Cat# : CL-RNG2

• A : 36”
• B : 3”
• C : 3”

Cat# : CL-RNG3

• A : 48”
• B : 3”
• C : 3”

Cat# : CL-RNG1-10CLED

• Input Power : 12W
• Lumen Output : 1,592
• LPW : 132
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-RNG1-20CLED

• Input Power : 25W
• Lumen Output : 3,203
• LPW : 128
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-RNG2-30CLED

• Input Power : 35W
• Lumen Output : 4,807
• LPW : 137
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-RNG2-40CLED

• Input Power : 45W
• Lumen Output : 6,411
• LPW : 142
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-RNG3-50CLED

• Input Power : 55W
• Lumen Output : 8,494
• LPW : 154
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-RNG3-60CLED

• Input Power : 65W
• Lumen Output : 9,560
• LPW : 147
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
