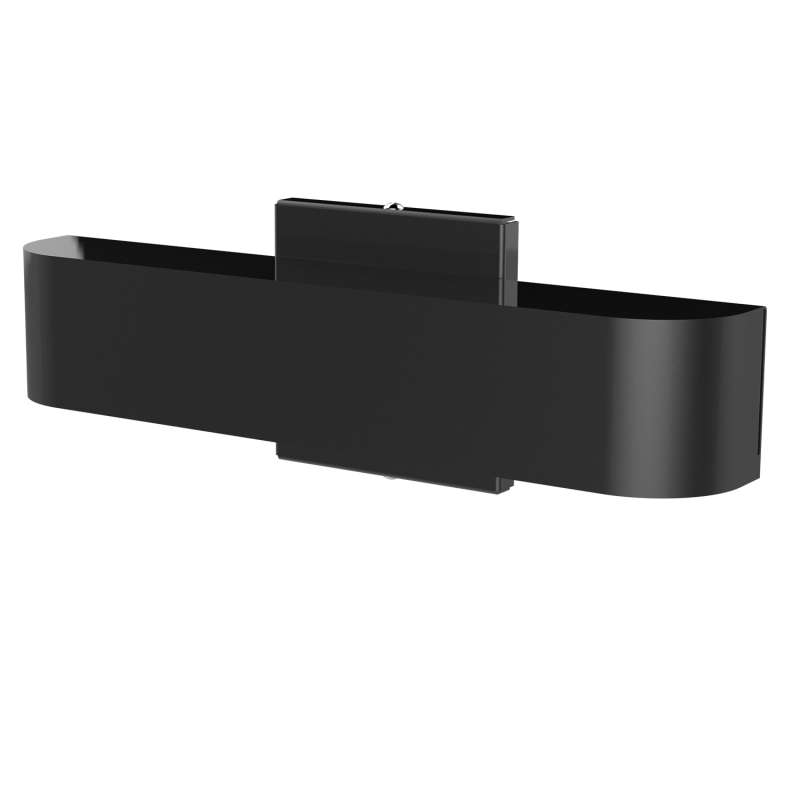

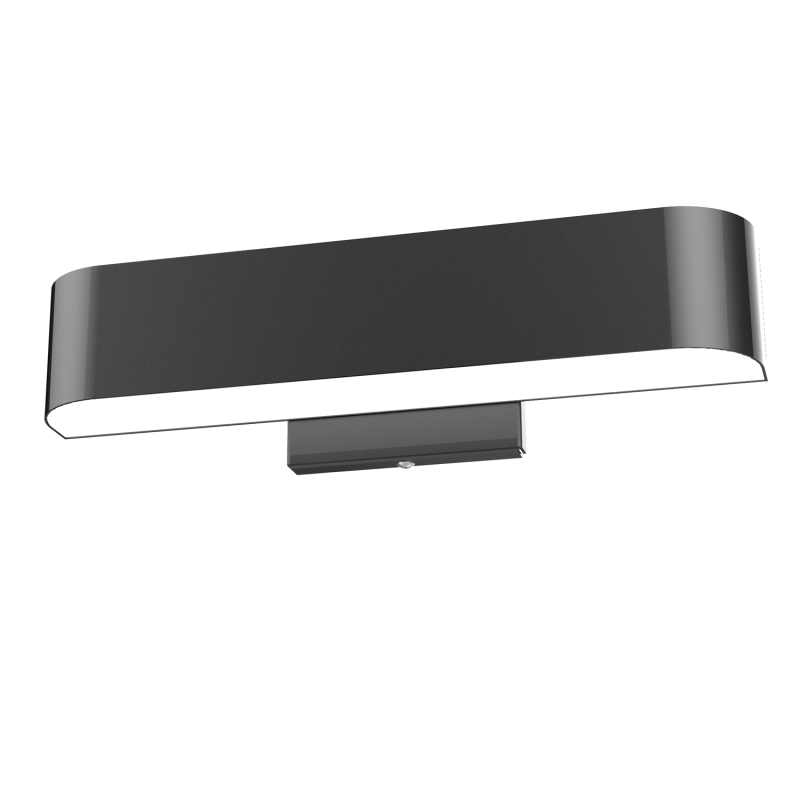

CL-3061

Vanity Vanity Light, Adds a touch of modern and elegance to your interiors. Available in multiple finishes to choose from to suit desired requirements. CL-3061 Vanity is commonly Installed in Bathrooms, Powder Rooms, Hallways. CL-3061 is 100% manufac-tured in the USA.

- Ten year/100,000 hour limited warranty.

Features :

• Utilizes high efficient Lumiled LED’s
• Operating temperatures: -30°C ~ 60°C
• Driver: Constant current, 120-277v, 50/60Hz.
• Suitable for wet locations
• 0-10 Dimming Driver, Micro Wave Sensor (Optional)

Construction :

• Housing is heavy-Gauge Aluminum
• 3 Mil Powder Coat Finish.
• Frosted Acrylic Lens (Standard)
• Silicone Gasket to prevent leakage and provide weather-tight protection.
• Mounting: Over 4˝ “J” Box.

Cat  : # CL-3061

Wattage  :

• 10W (10CLED)
• 15W (15CLED)
• 20W (20CLED)

Light Dist.  : Symmetric (SYM)

Color Temp.  :

• 3000K
• (30K)
• 4000K
• (40K)
• 5000K
• (50K)

Voltage  : 120-277V (MV)

Finish  :

• Black (BLK)
• White (WHT)
• Silver (SLR)

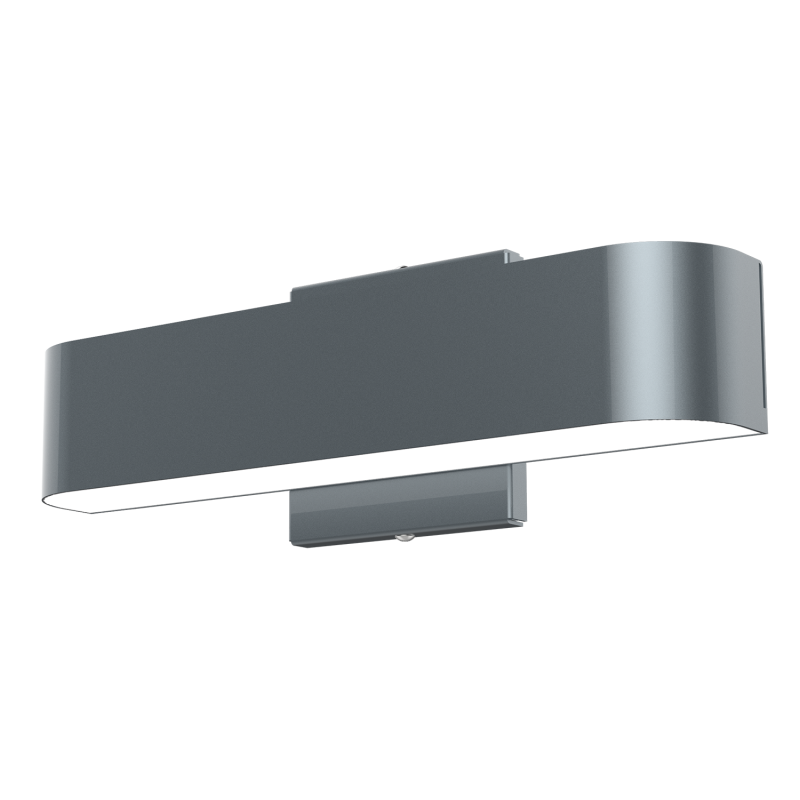

• Bronze (BRZ)
• Graphite (GPH)
• Custom (CST)

Options  :

• Micro Mave Sensor (MWS)
• Opal Acrylic Lens (OAL)

Dimensions  :

• A : 18
• B : 3” 1/2
• C : 3” 1/2

 Cat : # CL-3061-10CLED

• Input Power : 15W
• Lumen Output : 1,914
• LPW : 191
• Color Temp. (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 50W HPS

Cat : # CL-3061-15CLED

• Input Power : 20W
• Lumen Output : 2,481
• LPW : 165
• Color Temp. (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 70W HPS

Cat : # CL-3061-20CLED

• Input Power : 25W
• Lumen Output : 2,935
• LPW : 146
• Color Temp. (CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 100W HPS
