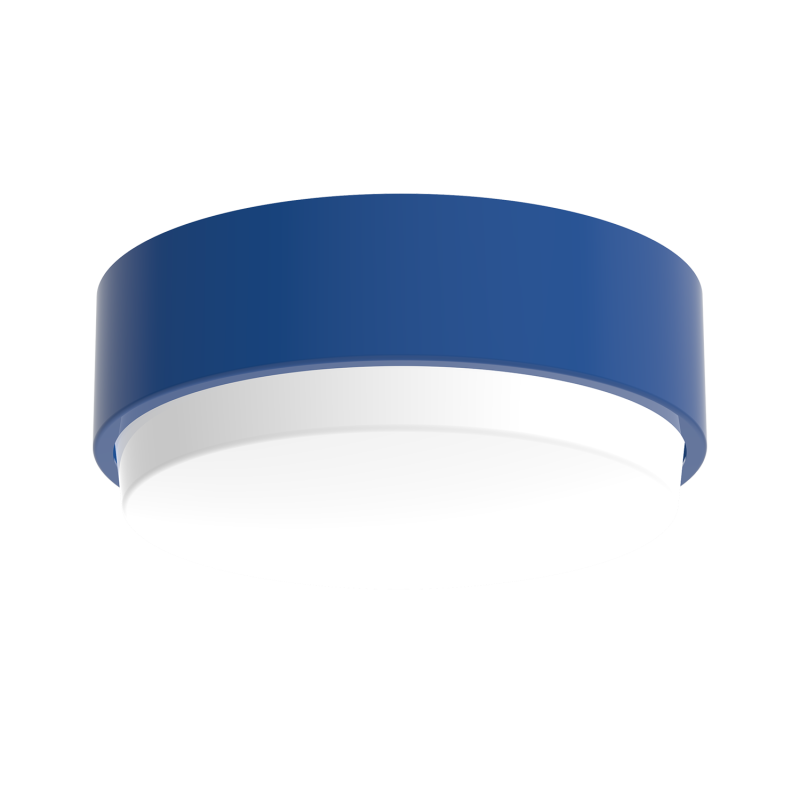

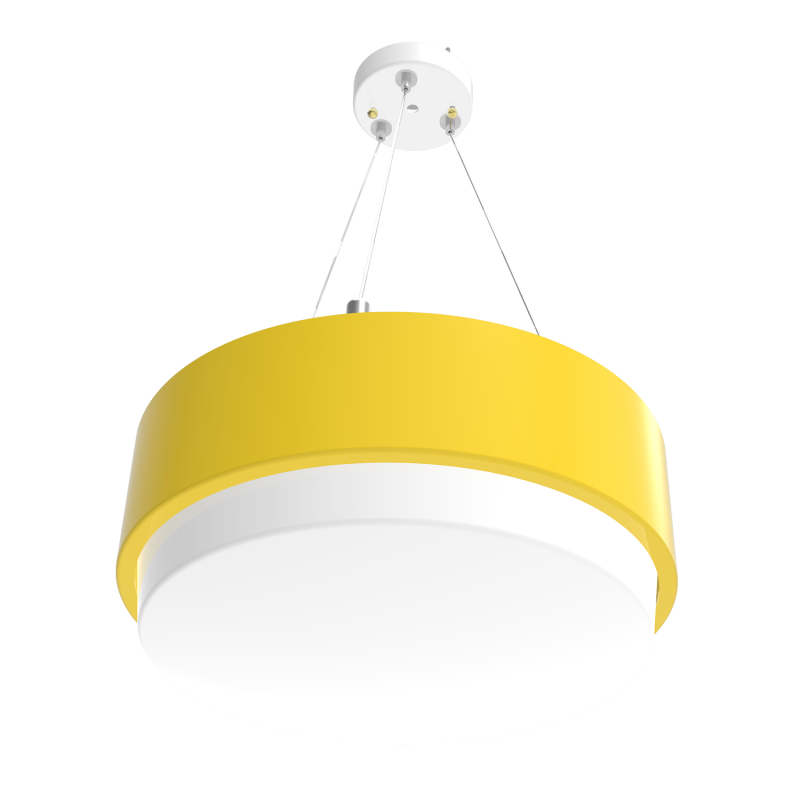

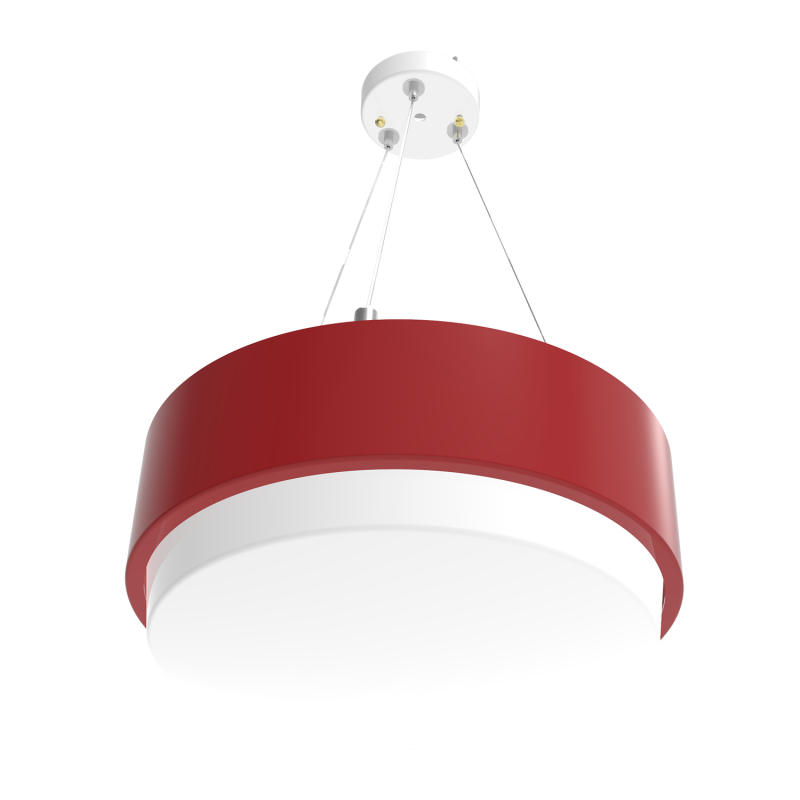

CL-3052
SKU : CL-3052
Interior Architectural LED The CL-3052 is available in two different sizes and in multiple finishes to choose from to suit desired requirements. It also in-cludes an acrylic lens. The CL-3052 fixture is commonly installed in interior facilities such as residential homes, indoor shopping areas, offices, and restaurants.-10 Year Limited Warranty.Features :
- Driver 120/277, 0-10v Dimming Driver.
- Available in 30K/80CRI Standard, 40K, 50k or 90CRI is Optional
- UL listed for damp and wet locations
- Other options available (see ordering guide below)
- 10 Year warranty
- Housing Heavy Gauge Aluminum / Opal Lens.
- 3 mil Powder Coating
- Opal Acrylic Lens (Standard)
- Multiple finishes to choose from (see ordering guide)
- Wattage : 10W (10CLED)
- Color Temp. : 3000K (30K)
- CRI : 80CRI (80CRI)
- Voltage : 120-277V (MV)
- Drop Lens : Flush (FSH)
- Finish : Flat Black (FBLK)
- Mounting : Celing Mount Occupacy Sensor (CM)
- Options : (OCC)
Cat : #CL-3052-LG
Wattage :Color Temp. :
- 4000K (40K)
- 5000K (50K)
CRI : 90CRI (90CRI)
Drop Lens :
- 1” DROP (1DP)
- 2” DROP (2DP)
Finish :
- Glossy Black (GBLK)
- White (WHT)
- Silver (SLR)
- Bronze (BRZ)
- Gred(RD)
- Yellow(YW)
- Orange (OR)
- Aircraft Cable Lenght
- (1’AC)
- (2’AC)
- (3’AC)
- (4”AC)
- Custom(CST)
- Emergency Battery(EMR)
Cat# : CL-3052-S
- A : 6” 1/2”
- B : 13”
- A : 6” 1/2
- B : 16”
- Input Power : 15W
- Lumen Output : 800
- Color Temp.(CCT) : 3000K
- CRI : 80+
- Rated Life (L70) : >200,000
- Input Voltage : 120-277V
- Input Power : 25W
- Lumen Output : 1600
- Color Temp.(CCT) : 3000K
- CRI : 80+
- Rated Life (L70) : >200,000
- Input Voltage : 120-277V
- Input Power : 35W
- Lumen Output : 3836
- Color Temp.(CCT) : 3000K
- CRI : 80+
- Rated Life (L70) : >200,000
- Input Voltage : 120-277V
