CL-304
SKU : CL-304

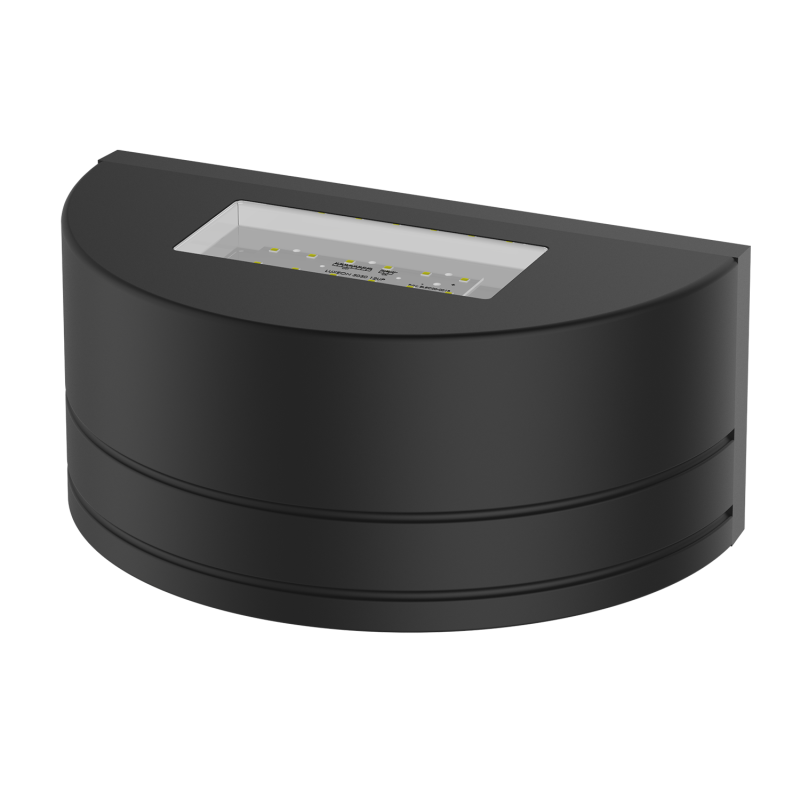

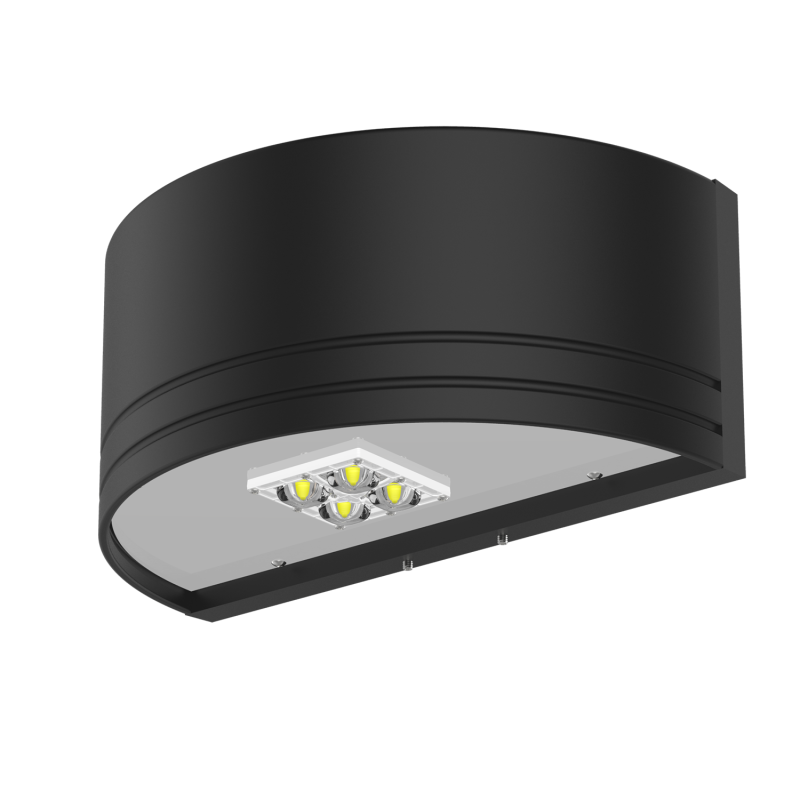

Wall Pack LED Luminaire CL-304 Half Moon Full Cut Off LED Wall Pack Fixture, Suitable for wet locations, Perfect for lighting up Residential Exteriors, Walk-ways, Entry Ways, Perimeters, Parking Garages, School Campus-es, Industrial/Commercial Spaces.-Dark sky compliant and up light option.-10 year/100,000 hour limited warranty.
Featureas :
- Energy Savings : Over 66% compared to HID light sources
- Improved lumen maintenance
- Utilizes high efficient Lumiled LED’s
- Operating temperatures : -30°C ~ 60°C
- Driver : Czonstant current, 120-277v, 50/60Hz, 480v (Optional)
- Suitable for wet locations
- 0-10 Dimming Driver, Occupancy Sensors or PhotoCell, Emergen-cy Battery Pack(optional)
Construction :
- Housing is heavy-Duty Aluminum
- 3 Mil Powder Coat Finish.
- Clear Optical System
- Silicone gasket to prevent leakage and provide weather-tight protection.

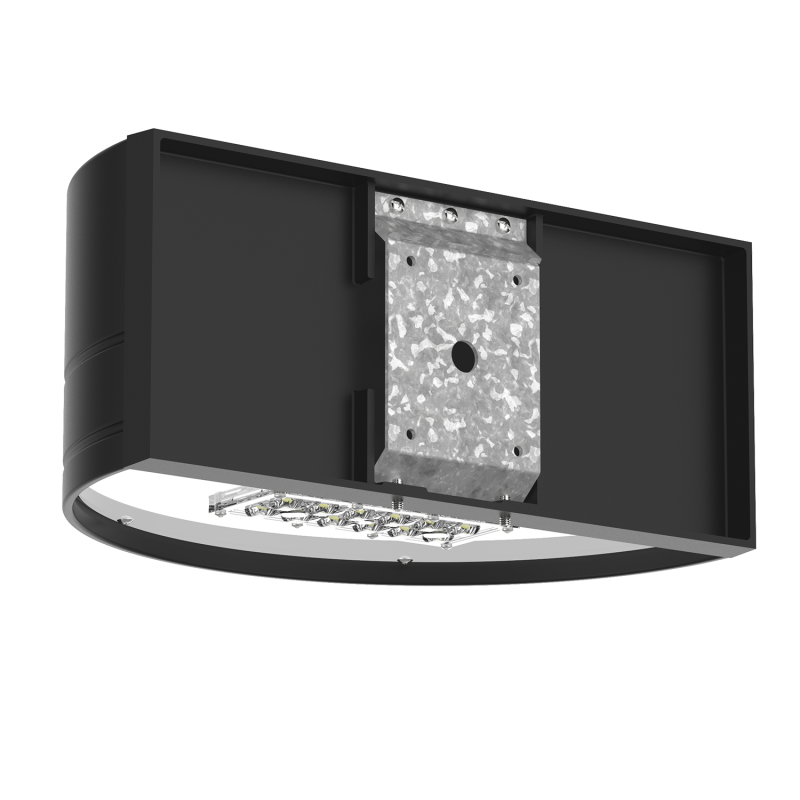

- Mounting: Over 4Ë “J” Box.
Cat # : CL-304Light :
- Down Light(D)
- *Up/ Down Light (UD)
- *Up Light 10W or 20W MAX
Wattage :
Light Dist. :
- Type 2 (T2)
- Type 3 (T3)
- Type 4 (T4)
- Type 5 (T5)
- 3000K (30K)
- 4000K (40K)
- 5000K (50K)
- 120-277V (MV)
- 480V (HV)
- Black (BLK)
- White (WHT)
- Silver (SLR)
- Bronze (BRZ)
- Graphite (GPH)
- Custom (CST)

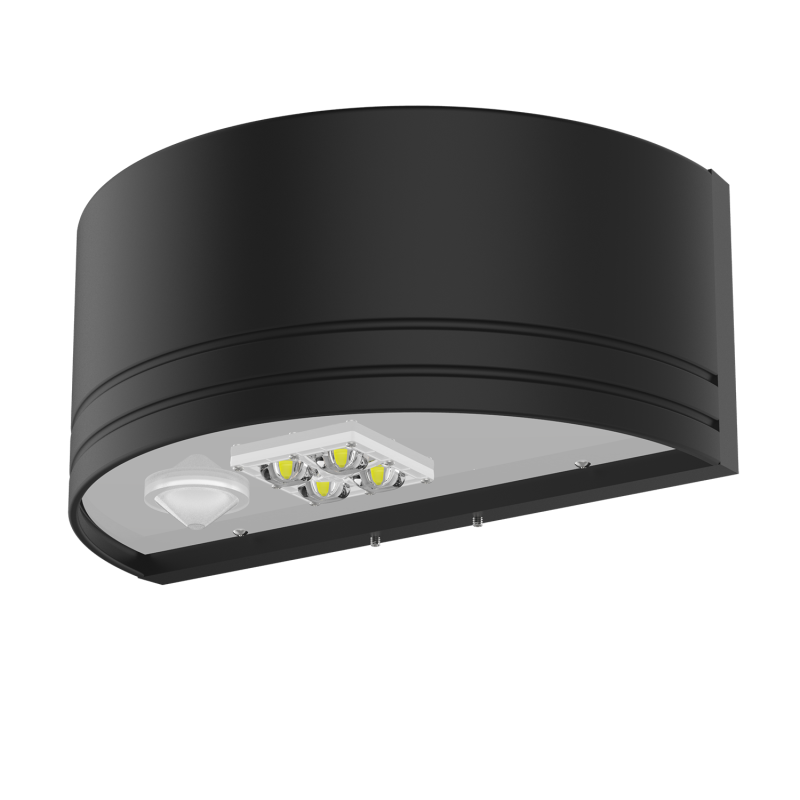

- Motion Sensor (OCC)
- Button Photo Cell (PC)
- Wireless controls (WC)
- Emergency Battery Pack (EMR)
Dimensions :
Cat# : CL-304
- A : 7.5
- B : 17”
- C : 9.5
- EPA : 0.88
- Input Power : 25W
- Lumen Output : 2,958
- LPW : 147
- Color Temp.(CCT) : 5000K
- CRI : 70+
- Rated Life (L70) : >200,000
- Imput Voltage : 120-277V
- HID Equivalent : 70W MH
- Input Power : 45W
- Lumen Output : 5,449
- LPW : 136
- Color Temp.(CCT) : 5000K
- CRI : 70+
- Rated Life (L70) : >200,000
- Imput Voltage : 120-277V
- HID Equivalent : 150W HPS
- Input Power : 55W
- Lumen Output : 6,589
- LPW : 131
- Color Temp.(CCT) : 5000K
- CRI : 70+
- Rated Life (L70) : >200,000
- Imput Voltage :120-277V
- HID Equivalent : 150W MH
