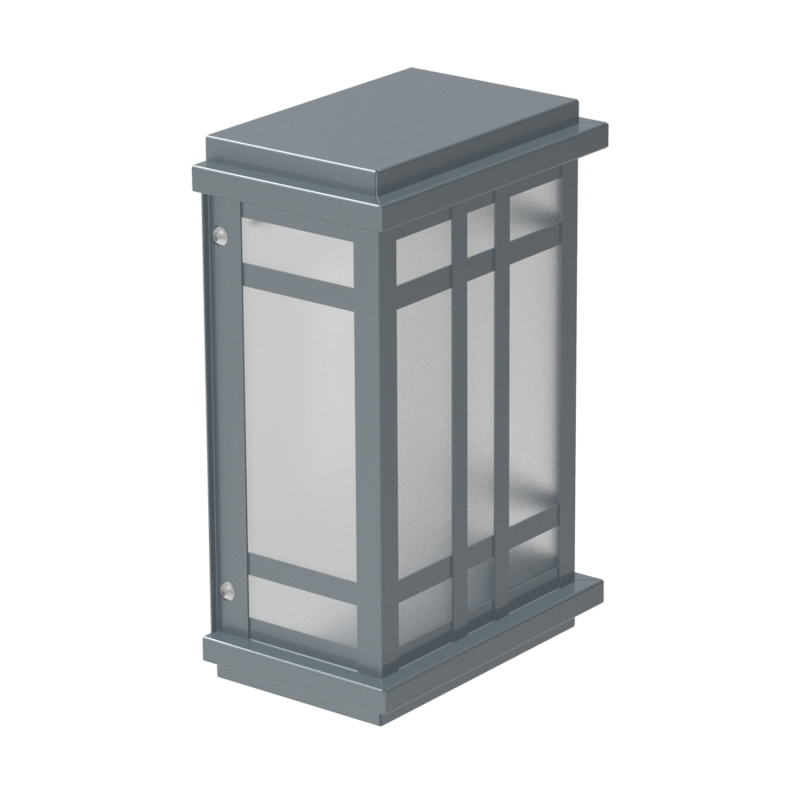

CL-2087

Architertural LED Lighting The decorative, sophisticated design of the CL-2087 enhance the appearance of any location. It is available in 3 different sizes and multiple finishes. CL-2087 is commonly installed in ExteriorLocations such as: Hotels, Restaurants, Public Transpor-tationss facilities, and other Commertial Areas.

-10year or 10,000 Hour Limited Warranty


Features:

• 120/277 Multi-volt
• UL listed for damp and wet locations
• Kelvin: 30K, 40K or 50K
• High efficacient Lumined LED`s

Construction :

• Housing is aluminum Heavy Gauge material
• Frosted Acrylic Lens (Standard)
• Multiple Finishes to choose (See Ordering Guide)

Cat #

• CL-2087 S (CL-2087-S)
• CL-2087 M (CL-2087-M)
• CL-2087 L (CL-2087-L)

Strap Design

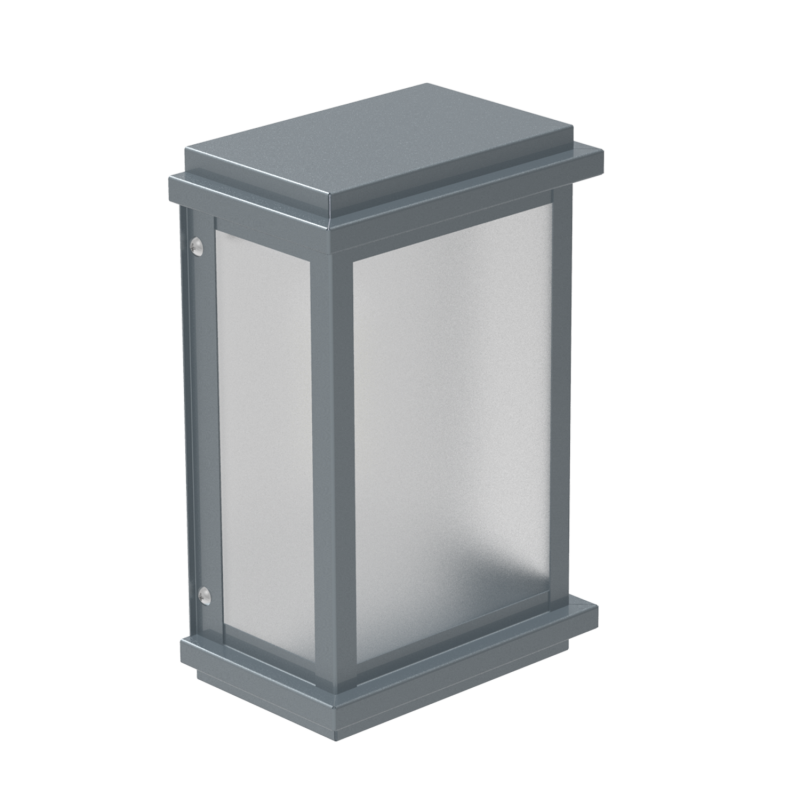

• Strap Design-0 (SD0)
• Strap Design-A (SDA)

Wattage

• 5W (5CLED)
• 10W (10CLED)
• 20W (20CLED)
• 30W (30CLED)
• 25W (25CLED)
• 40W (40CLED)

Color Temp.

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

Voltage

• 120-277V(MV)

Finish

• Matte Black (MBLK)
• Glossy Black (GBLK)
• Texture Black (TBLK)
• Texture White (TWHT)
• Silver (SLR)
• Bronze (BRZ)
• Graphite (GPH)

Mounting

• Wall Mount(WM)

Options

• Button Photocell (PC)
• Emergency Batt. Pack (EMR)
• Frosted Acrylic Lens (Standard) (FAL)
• Opal Acrylic Lens (OAL)

CL-2087

Dimensions

Cat# : CL-2087-S

• A : 10”
• B : 6”
• C : 4”

Cat# : CL-2087-M

• A : 12”
• B : 8”
• C : 5”

Cat# : CL-2087-L

• A : 15”
• B : 10”
• C : 5”

Cat# : CL-2087-S-5CLED

• Input Power : 10W
• Lumen Output : 918
• LPW : 183
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-S-10CLED

• Input Power : 15W
• Lumen Output : 1,914
• LPW : 191
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-S-15CLED

• Input Power : 20W
• Lumen Output : 2754
• LPW : 183
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-S/M-20CLED

• Input Power : 25W
• Lumen Output : 2,935
• LPW : 146
• Color Temp.(CCT) :
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-M/L-30CLED

• Input Power : 35W
• Lumen Output : 4842
• LPW : 161
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-M/L-35CLED

• Input Power : 40W
• Lumen Output : 5320
• LPW : 152
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-2087-M/L-40CLED

• Input Power : 45W
• Lumen Output : 6252
• LPW : 156
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
