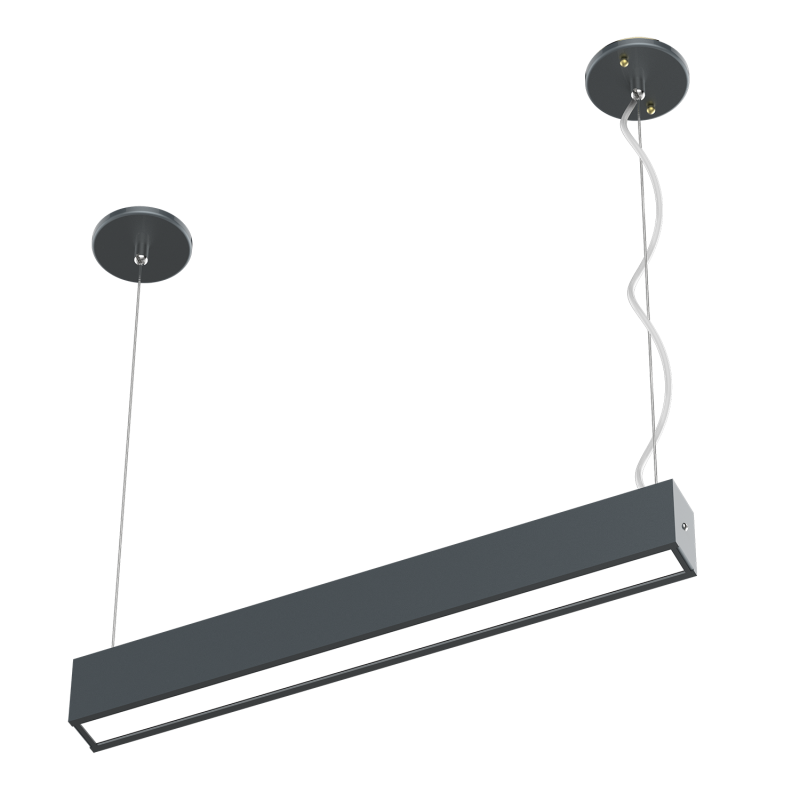

CL-1STIX Series

Interior Architectural LEDThe CL-1STIX Architecturla Luminaire, slim Profiles with Robust Costruction. Lighting Solution for modern Offices, Public Areas, Libraries and other Indoor Spaces. CL-1STIX is Available in 2’, 3’ and 4’ OD.CL-1STIX includes a White Cord along with Stainless Steel Aircraft Cables.-10 Year Limited Warranty.FEATURES :

• Driver 120/277, 0-10v Dimming Driver.
• Available in 30K/80CRI Standard, 40K, 50k or 90CRI are optional
• Lumileds Flex LED strip
• 80 CRI
• Suitable for damp locations
• White cord (included)
• Stainless Steel Adjustable Aircraft Cables

CONSTRUCTION :

• Material: Aluminum Housing
• 3 Mils Powder Coating
• Frosted Acrylic Lens (standard)

 Dimensions :
Cat# : CL-1STIX-2

• A : 24”
• B : 3”
• C : 2”

Cat# : CL-1STIX-3

• A : 36”
• B : 3”
• C : 2”

Cat# : CL-1STIX-4

• A : 48”
• B : 3”
• C : 2”

Cat# : CL-1STIX-2-10CLED

• Input Power : 15W
• Lumen Output : 1,540
• LPW : 102
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-1STIX-2-20CLED

• Input Power : 25W
• Lumen Output : 2,552
• LPW : 103
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-1STIX-3-30CLED

• Input Power : 35W
• Lumen Output : 4,011
• LPW : 133
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-1STIX-3-40CLED

• Input Power : 45W
• Lumen Output : 5,110
• LPW : 128
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-1STIX-4-50CLED

• Input Power : 55W
• Lumen Output : 7,198
• LPW : 130
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V

Cat# : CL-1STIX-4-60CLED

• Input Power : 65W
• Lumen Output : 8,448
• LPW : 129
• Color Temp.(CCT) : 3000K
• CRI : 80+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
