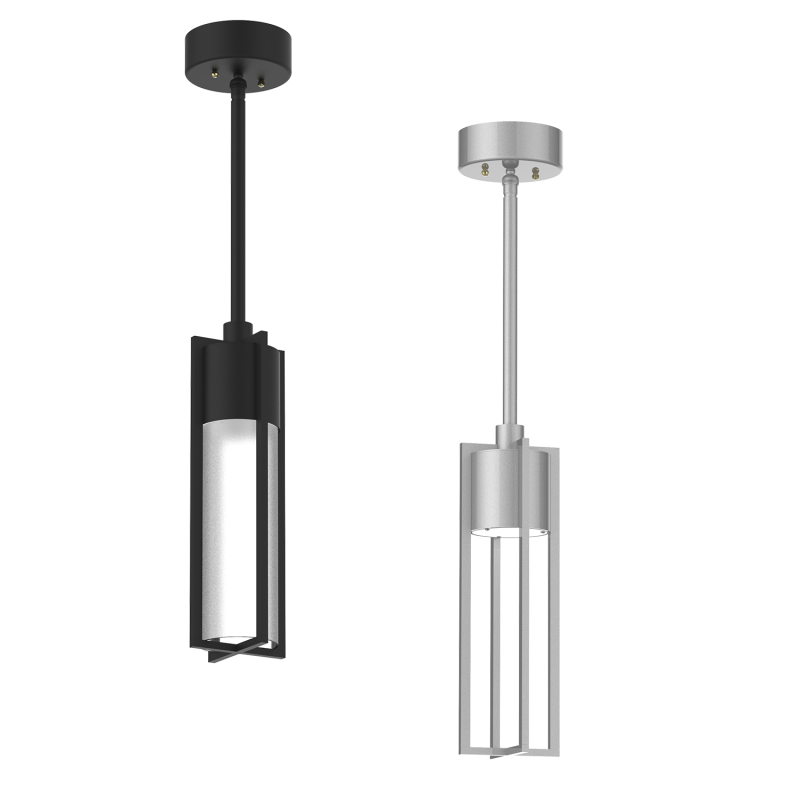

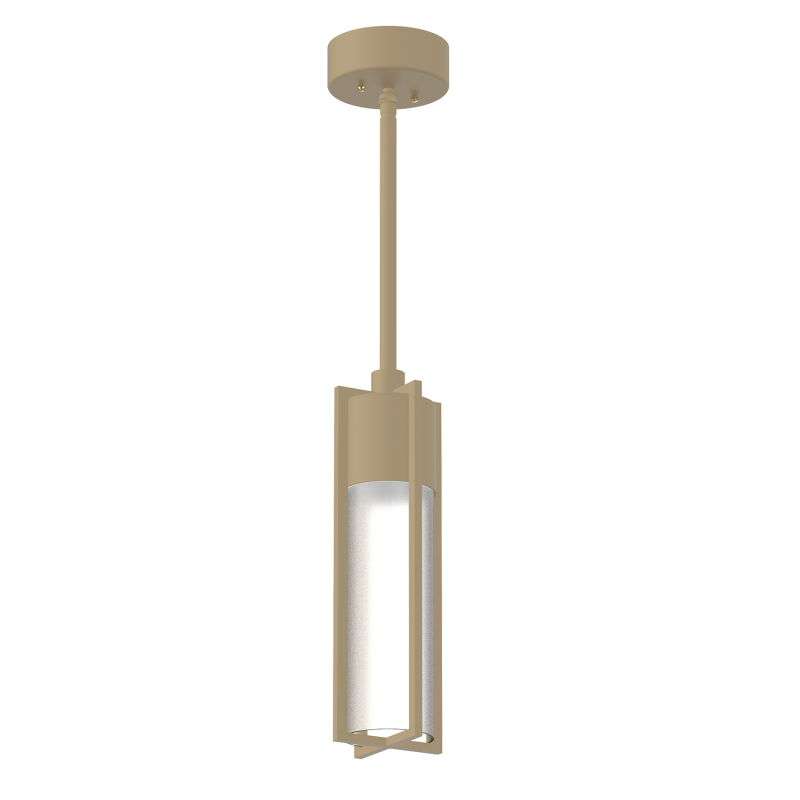

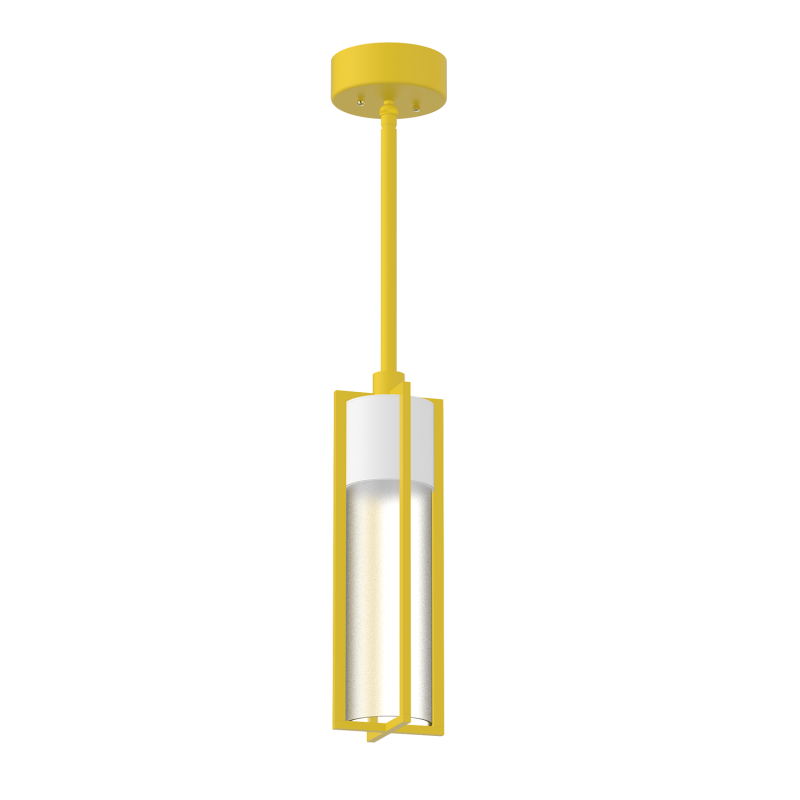

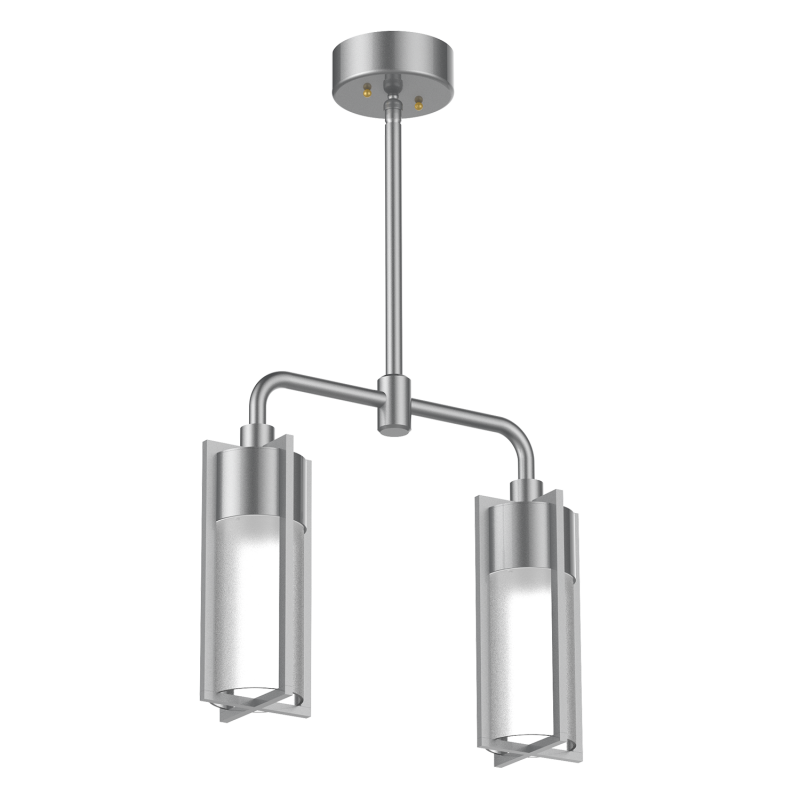

CL-164 Series

CL-164 Series

1 reviews
Product Code: CL-164 Series

Product Description


Interior  Architertural  LEDThe decorative, sophisticated design of the CL-164 enhance the appearance of any location. It is available in 3 different sizes and multiple finishes. CL-164 is commonly installed in Interior Facilities such as: Hallways/Corridors, Offices, and Interior Resi-dential Locations.FEATURES :
  • Driver 120/277, 0-10v Dimming Driver.
  • Available in 30K/80CRI Standard, 40K, 50k or 90CRI are Optional
  • UL listed for damp and wet locations
  • High efficacient Lumined LED`s
  • 5 Year limited warranty
CONSTRUCTION :
  • Housing is Aluminum
  • Frosted Acrylic Lens (Standard)
  • 3Mil Powder Coating. Multiple Finishes to choose (See Order-ing Guide)
Cat# : CL-164
Dia. :
  • 4” OD (4OD)
  • --------
  • 6” OD (6OD)
  • --------
  • 8” OD (8OD)
Lens :
  • Flat Acrlylic Lens (FL)
  • Cylinder Acrylic Lens(CAL)
Wattage :Color Temp. :
  • 3000K(30K)
  • 4000K(40K)
  • 5000K(50K)
CRI :
  • 80CRI(80CRI)
  • 90CRI(90CRI)
Voltage : 120-277V(MV)Finish :
  • Matte Black(MBLK)
  • Glossy Black (GBLK)
  • Texture Black(TBLK)
  • Texture White(TWHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)
  • Copper Vein (CPV)
  • Silver Vein(SLV)
  • Oil Rubbeb Bronze(ORB)
Mounting :
  • Pendant Mount
  • 1FT(PM1)
  • 2FT(PM2)
  • 3FT(PM3)
  • 4FT(PM4)
Options : Opal Acrylic Lens (OAL)Dimensions :

Cat# : CL-164
  • A : 4”
  • B : 12”
Cat# : CL-164
  • A : 6”
  • B : 14”
Cat# : CL-164
  • A : 8”
  • B : 18”
 Cat # : CL-164-4OD-5CLED
  • Input Power : 10W
  • Lumen Output : 918
  • LPW : 183
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-4OD-10CLED
  • Input Power : 15W
  • Lumen Output : 1,914
  • LPW : 191
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-6OD-15CLED
  • Input Power : 20W
  • Lumen Output : 2754
  • LPW : 183
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-6OD-20CLED
  • Input Power : 25W
  • Lumen Output : 2,935
  • LPW : 146
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-8OD-30CLED
  • Input Power : 35W
  • Lumen Output : 4842
  • LPW : 161
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-8OD-35CLED
  • Input Power : 40W
  • Lumen Output : 5320
  • LPW : 152
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat # : CL-164-8OD40CLED
  • Input Power : 45W
  • Lumen Output : 6252
  • LPW : 156
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
