Made in USA

CL-10 Series
CL-10 Series
CL-10 Series
CL-10 Series
CL-10 Series
CL-10 Series

CL-10 Series

1 reviews
SKU : CL-10 Series
12/11/2024

Write a review

Note: HTML is not translated!
Bad           Good
Back


Architertural LED Fixture CL-10 is Designed with a Pyramid Top and includes geometric lines that overlap an opal acrylic lens. This fixture is available in three different sizes to best suit desired specifications. CL-10 is commonly installed in exterior locations such as: Hotels, Restaurants, Public Transportations Facilities and Other Com-mercial Areas.-10year or 10,000 Hour Limited Warranty
 Features:
  • 120/277 Multi-volt
  • UL listed for damp and wet locations
  • Kelvin: 30K, 40K or 50K
  • High efficacient Lumined LED`s
Construction :
  • Housing is Heavy Gauge Aluminum material.
  • Frosted Acrylic Lens (Standard)
  • Multiple Finishes to choose (See Ordering Guide)
Cat #
  • CL-10 Small (CL-10S)
  • CL-10 Medium (CL-10M)
  • CL-10 Large (CL-10L)

WattageColor Temp.
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
Voltage
  • 120-277V (MV)
Finish
  • Matte Black (MBLK)
  • Glossy Black (GBLK)
  • Texture Black (TBLK)
  • Texture White (TWHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)

Mounting

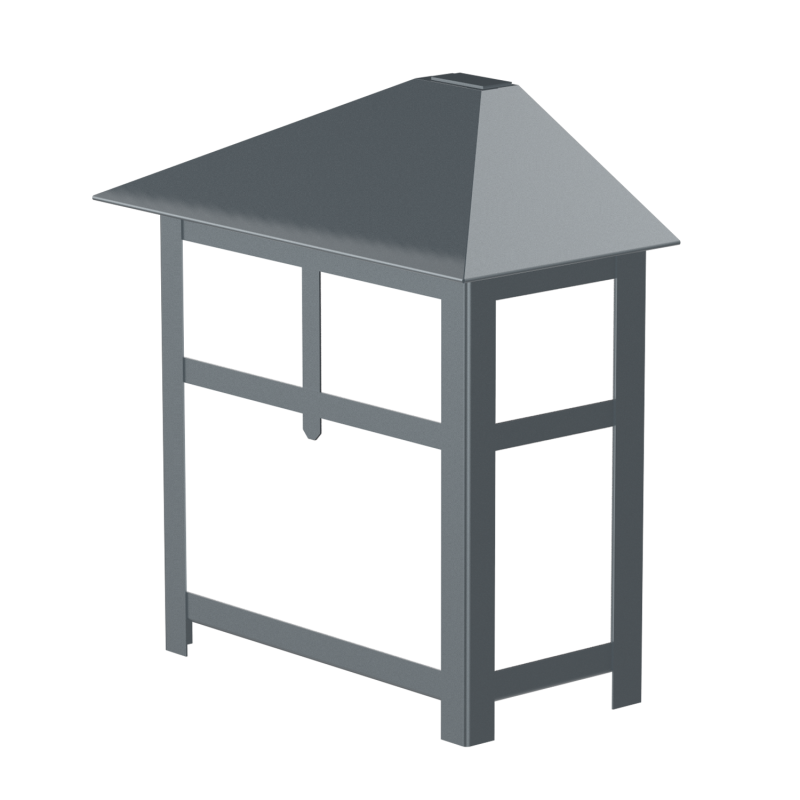

  • Sconce (SCN)
  • Arm Mount (AM)
  • Post Top (PT)

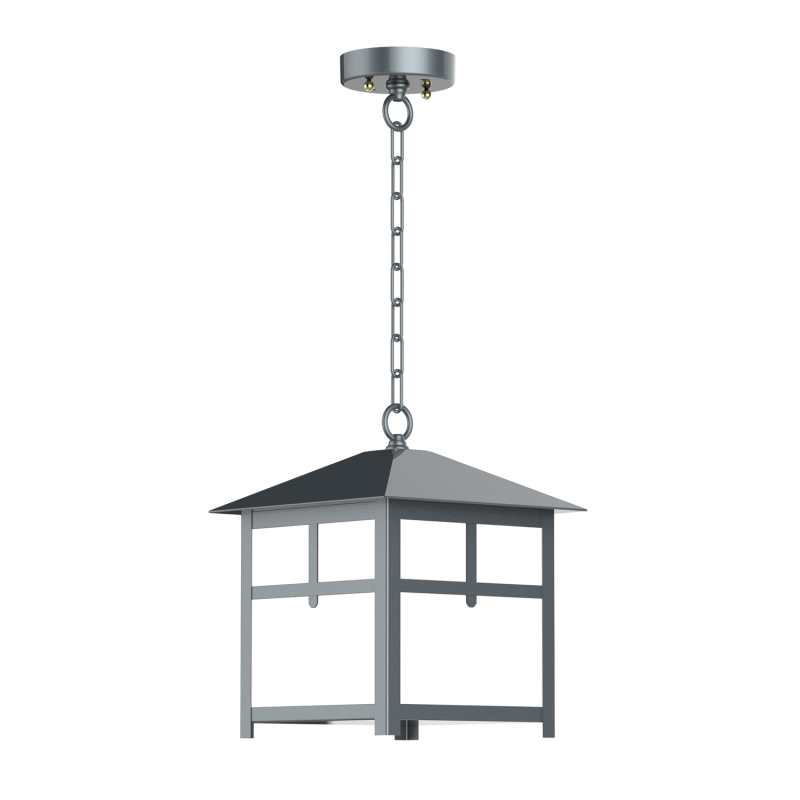

  • Pendant Mount Chain
  • 1ft (CM1)
  • 2ft (CM2)
  • 3ft (CM3)

Options
  • Button Photocell (PC)
  • Micro Wave Sensor (MWS)
  • Emergency Batt. Pack (EMR)
  • Opal Acrylic Lens (OAL)

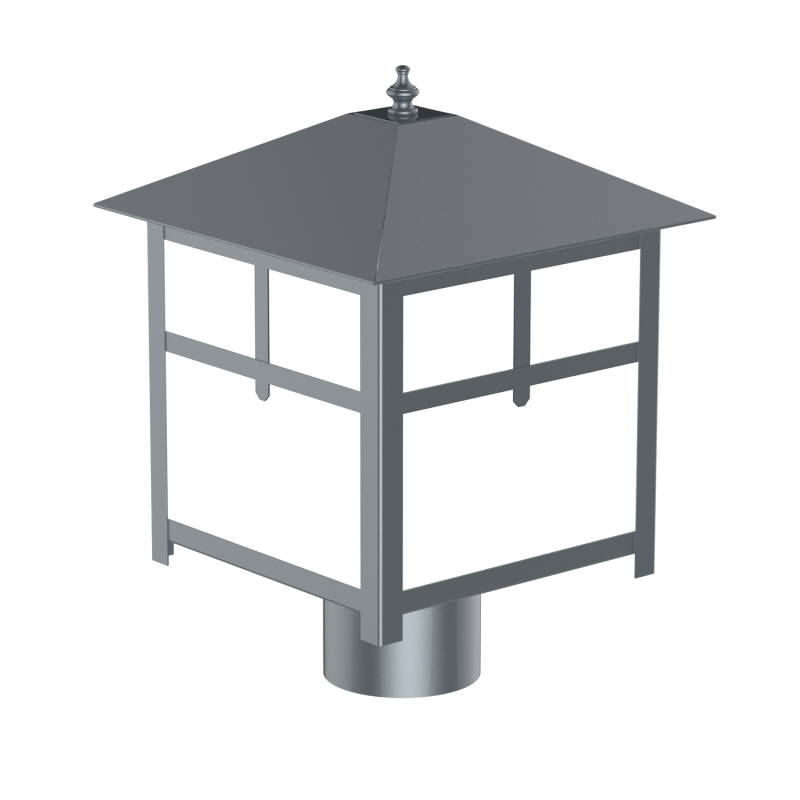

CL-10-PT (Post Top)
Cat# : CL-10S
  • A : 10”
  • B : 7” 1/2
Cat# : CL-10M
  • A : 11”
  • B : 9” 1/2
Cat# : CL-10L
  • A : 15”
  • B : 11”
CL-10-AM (Arm Mount)
Cat# : CL-10S
  • A : 10”
  • B : 7” 1/2
  • C : 9”
  • D : 12”
Cat# : CL-10M
  • A : 11”
  • B : 9” 1/2
  • C : 6” 1/4
  • D : 13”
Cat# : CL-10L
  • A : 15”
  • B : 11”
  • C : 7”
  • D : 17”
Cat# : CL-10S
  • A : 10”
  • B : 7” 1/2
  • C : 3” 3/4
Cat# : CL-10M
  • A : 11”
  • B : 9” 1/2
  • C : 4” 3/4
Cat# : CL-10L
  • A : 15”
  • B : 11”
  • C : 5” 1/2
Cat# : CL-10S-5CLED
  • Input Power : 10W
  • Lumen Output : 918
  • LPW : 183
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10S-10CLED
  • Input Power : 15W
  • Lumen Output : 1,914
  • LPW : 191
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10S-15CLED
  • Input Power : 20W
  • Lumen Output : 2754
  • LPW : 183
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10S/M-20CLED
  • Input Power : 25W
  • Lumen Output : 2,935
  • LPW : 146
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10M/L-30CLED
  • Input Power : 35W
  • Lumen Output : 4842
  • LPW : 161
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10M/L-35CLED
  • Input Power : 40W
  • Lumen Output : 5320
  • LPW : 152
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-10M/L-40CLED
  • Input Power : 45W
  • Lumen Output : 6252
  • LPW : 156
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
