Astral-II Column
SKU : Astral-II Column

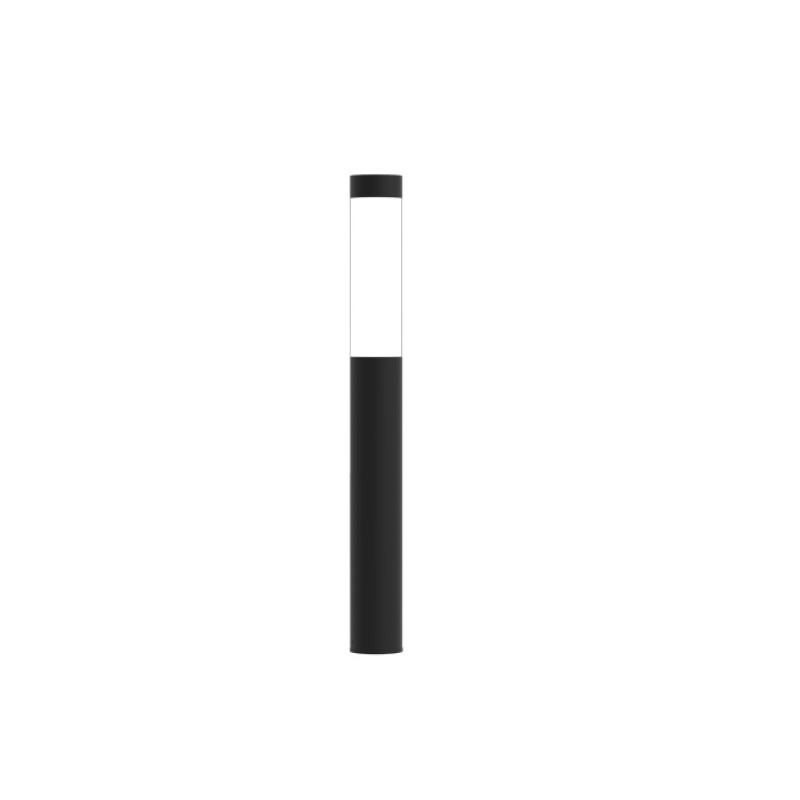

Astral-II (ASTII) is a modern architectural LED column light constructed with rugged aluminum alloy. Ideal for exteriors, walkways, perimeters, campuses, commercial spaces, and parks.
- 10-year / 100,000-hour warranty
- Heavy gauge aluminum (6" or 8" OD)
- 3 mil powder coating finish
- Opal acrylic lens (clear optional)
- IP65 protection with silicone gasket
Available Models & Output
| Model Range | Max Wattage | Lumen Output |
|---|---|---|
| ASTII | 20W | 3,600 lm |
| ASTII | 40W | 7,000 lm |
| ASTII | 60W | 9,100 lm |
| ASTII | 80W | 11,200 lm |
| ASTII | 100W | 14,040 lm |
Technical Specifications
| Parameter | Details |
|---|---|
| Voltage | 120–277V (Universal) |
| Frequency | 50/60 Hz |
| CRI | 80+ |
| Rated Life | >200,000 hours |
| Distribution | Symmetric (SMT) |
| Protection | IP65 |
Configurations
Diameter
| Code | Size |
|---|---|
| 6 | 6" O.D |
| 8 | 8" O.D |
Height Options
| Code | Height |
|---|---|
| 36 | 36" |
| 42 | 42" |
| 6 | 6' |
| 7 | 7' |
| 8 | 8' |
| 10 | 10' |
| 12 | 12' |
Wattage Options
| Code | Details |
|---|---|
| 20CLED | 20W – 12" Lens |
| 40CLED | 40W – 24" Lens |
| 60CLED | 60W – 3ft Lens |
| 80CLED | 80W – 4ft Lens |
| 100CLED | 100W – 5ft Lens |
Color & Finish Options
Color Temperature
| Code | Description |
|---|---|
| 3K | 3000K |
| 4K | 4000K |
| 5K | 5000K |
Finish Colors
| Code | Color |
|---|---|
| BZ | Bronze |
| GRY | Gray |
| BLK | Black |
| WH | White |
| CST | Custom |
Optional Add-ons
| Code | Option |
|---|---|
| PC | Photocell |
| WC | Wireless Control |
Dimensions
| Height (A) | Lens (B) | Shaft (C) |
|---|---|---|
| 36" | 12" | 19" |
| 42" | 12" | 25" |
| 6' | 24" | 4' |
| 7' | 35" | 4' |
| 8' | 35" | 5' |
| 10' | 35" | 7' |
| 12' | 48" | 8' |
Performance Details
| Wattage | Lumens | LPW | CRI |
|---|---|---|---|
| 20W | 3,600 | 164 | 80+ |
| 40W | 7,000 | 155 | 80+ |
| 60W | 9,100 | 152 | 80+ |
| 80W | 11,200 | 140 | 80+ |
| 100W | 14,040 | 140 | 80+ |
