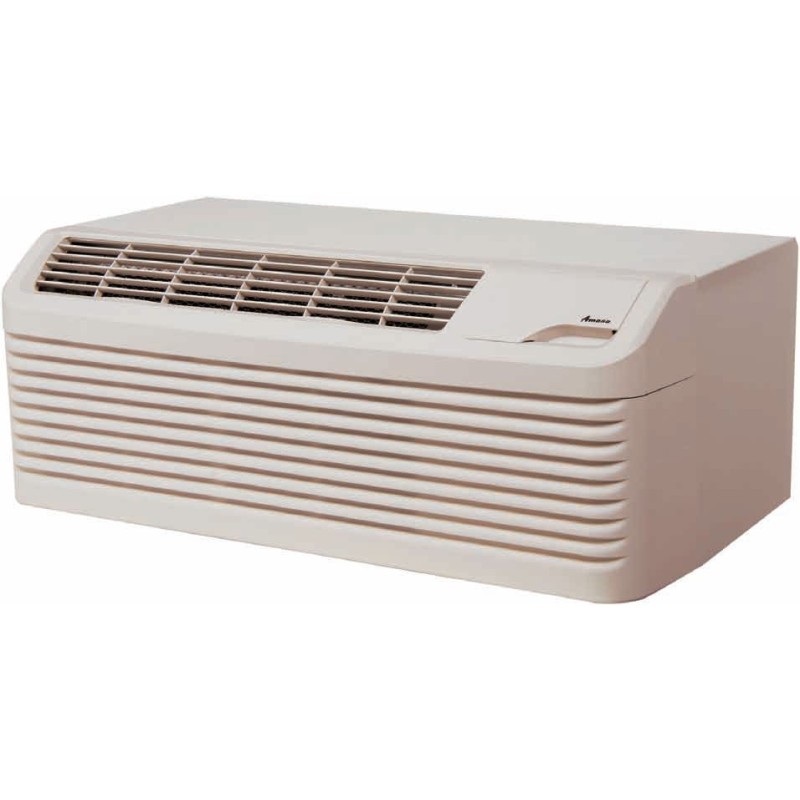

AMANA PTAC 12,000 BTU Heat Pump Unit 3.5kW Back Up Heater, PTH123G35AXXX
Product Code: PTH123G35AXXX
Description : 12,000 BTU Packaged Terminal Air Conditioner with 11,500 BTU Heat Pump, Electric Heat Backup, 10.7 EER, R410A Refrigerant, 3.6 Pts/Hr Dehumidification and 230/208 Volts.
Features :
- Width: 42 Inch
- Depth: 21 1/2 Inch
- Height: 16 1/16 Inch
- Cooling Capacity (BTU): 12,000 BTU
- Heating Capacity (BTU): 11,500 BTU
- CFM Room Circulation: 370 CFM
- Chassis Type: Thru the Wall
- Wall Sleeve Included: No
- Control Type: Digital
- Remote Control Included: No
- Plug Type: 6-20P
- 12,000 BTUH
- 230/208 Volts
- 3.5 kW Electric Heat
- 10.7/10.7 EER
- 3.1/3.2 COP
- 11,500/11,300 BTUH Reverse-Cycle Heating
Energy Efficiencies :
- With EERs up to 11.7 and COPs up to 3.4, their unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.
Quiet Operation :
- Their PTAC has been redesigned to be the quietest PTAC they've ever built.
- The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.
- Two fan motors (indoor/outdoor).
- Indoor tangential fan for quiet operation.
- STC of 28.
Assembled In The USA For 30 Years :
- Assembled at their plant in Fayetteville, TN, using Goodman resources including engineering, production, and testing.
Increased Dehumidification Capacity :
- Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons.
- As a result, guests feel more comfortable at higher temperatures, thus reducing cooling costs.

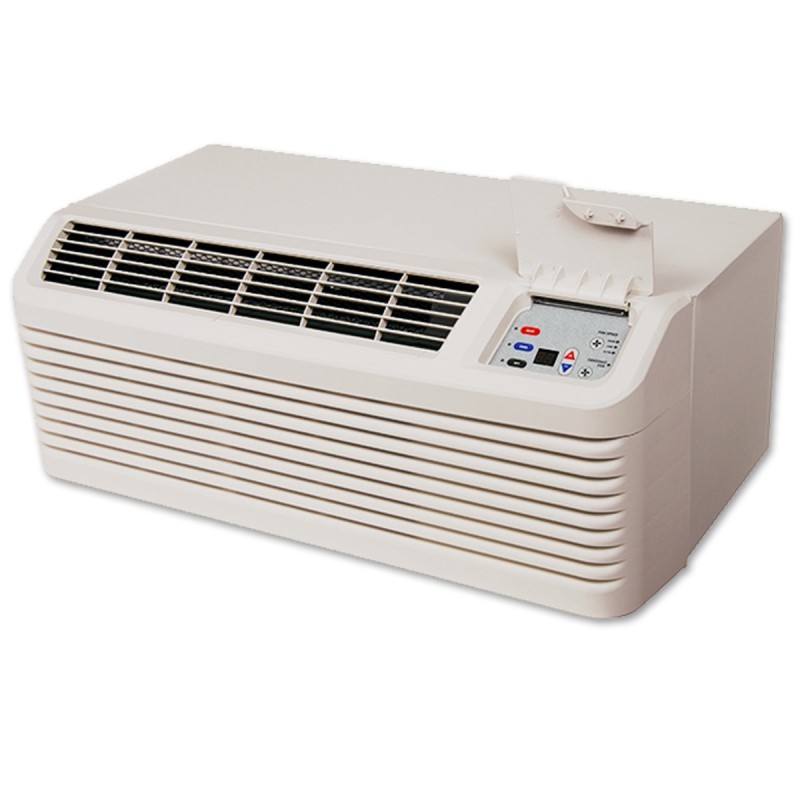

Seven-Button Touch Pad :
- Provides complete control to guests for in-room comfort while maintaining energy efficiency.
Five-Year Limited Warranty :
- Enjoy one of the most comprehensive warranties in the industry: First Year: parts and labor.
- Second through fifth years: parts and labor on certain sealed system components.
- Second through fifth years: on certain functional parts only.
- For complete warranty details, visit www.amana-ptac.com.
- 100% Run Tested
- All units are 100% run tested at their plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse.
- 7-5/8" Unit Front Depth
- Enhance valuable room space with their slim unit front, which has a sleek 7-5/8" depth, one of the shallowest silhouettes in the industry today.
- In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw.
Removable Condenser Shroud :
- Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.
Easy Pull-Out Filters :
- Their filters are washable and easy to maintain.
Filter Dryer for Sealed System Refrigerant :
- Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.
Front Desk Control :
- Each unit comes equipped with the DigiSmart control and energy management software.
- With Digi-Smart using the optional RF Antennae, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics.
- Amana brand PTACs also have a low-voltage interface capability with a field-supplied front-desk ON/OFF switch.
Room Freeze Protection :
- When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.
- No complex controls to confuse your guests and create phone calls for your manager.
- Controls are easy to read, understand, and activate.
- Their new 7-button control panel provides guests with complete control of the unit for their in-room comfort while maintaining overall energy efficiency.
Specifications :
- Voltage : 230/208 Volts
- Capacity : 12,000 BTU/h
- Amps : 5.8/5.8 Amps
- Watts : 1,125/1,100 Watts
- EER : 10.7/10.7
- Min. Circuit Amps : 7.1 Amps
- CFM (Cool/Wet Coil) - High : 340 CFM
- CFM (Cool/Wet Coil) - Low : 245 CFM
- CFM (Dry Coil) - High : 370 CFM
- CFM (Dry Coil) - Low : 270 CFM
- Ventilated Air, CFM (Fan Only) : 65 CFM
- Ventilated Air, CFM (Comp and Fan) : 40 CFM
- Dehumidification : 3.6 Pints/Hr.
Electric Heat Performance :
- Electric Heater Size : 3.5 kW
- No. Of Stages : 1
- Nominal Heating : 12,000/9,900 BTU/h
- Total Watts : 3,570/2,935 Watts
- Total Amps : 15.5/14.1 Amps
- Min. Circuit Ampacity : 19.5 amps
- MOD : 20 Amps
- Power Cord : 6-20P
Reverse-Cycle Performance :
- Heating Capacity : 11,500/11,300 BTU/h
- Amps : 5.8/5.8 Amps
- Watts : 1,085/1,035 Watts
- COP : 3.1/3.2
- CFM (Dry) : 370 CFM
Dimensions and Weights :
- Overall Width : 42"
- Overall Width - Chassis : 40"
- Overall Depth : 21 1/2"
- Overall Depth - Wall Sleeve : 14 1/8"
- Overall Height : 16 1/16"
- Net Weight : 115.0 Lbs.
- Ship Weight : 132.0 Lbs.
