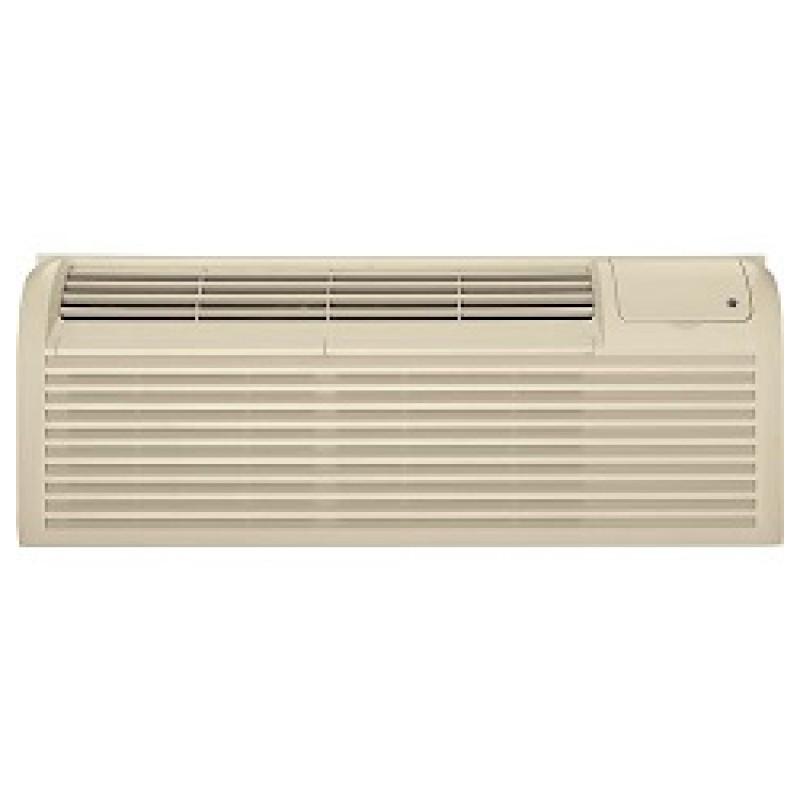

GE ZONELINE DELUXE SERIES HEAT PUMP UNIT WITH ICR, 265 VOLT AZ61H12EAD
Product Code: LOG30684
Specs & Details :
- Cooling capacity
- Energy efficiency
- Dehumidification
- Dimensions : 16 H x 42 W x 20 7/8 D
CAPACITY :
- Cooling BTUH (MIN) : 11700.0 Btu
- Cooling EER (BTUH / Watt) : 11.4
- CFM Indoor Fan High : 370
- CFM Indoor Fan Low : 284
- Dehumidification (pts./hr.) : 3.5
- Heating - Reverse Cycle - BTUH : 10900
- Vent CFM (high fan at zero ESP) : 75/45
FEATURES :
- Sensible Heat Ratio : 70%
- Chassis Type : Slide-In
Control Type :
- Standard Microcomputer
- Tactile touch pad with LED Display
Electronic Micro Computer Control : Yes
Fan Cycle Switch : Yes
Fan Motor : 2
Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Internal Condensate Removal (ICR) : Yes
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions
- Vent Air Filter
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- Power Cord (LDCI) included
- Proportional - Integral ID Airflow
- Quick Heat Recovery
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 4.0
- Cooling - Amperes; L.R. : 23.5
- Cooling - Watts : 1015
- Heating - Reverse Cycle - Amps : 3.6
- Heating - Reverse Cycle - COP : 3.6
- Heating - Reverse Cycle - Watts : 880
- Power Factor : 92
- Voltage (MAX) : 265.0 V
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
WEIGHTS & DIMENSIONS :
- Net Weight : 107.0 lb
- Overall Depth : 20.875 in
- Overall Height : 16.0 in
- Overall Width : 42.0 in
- Overall Depth (Excludes Sleeve) : 19.8125 in
- Overall Height (Excludes Sleeve) : 15.5 in
- Overall Width (Excludes Sleeve) : 40.0 in
