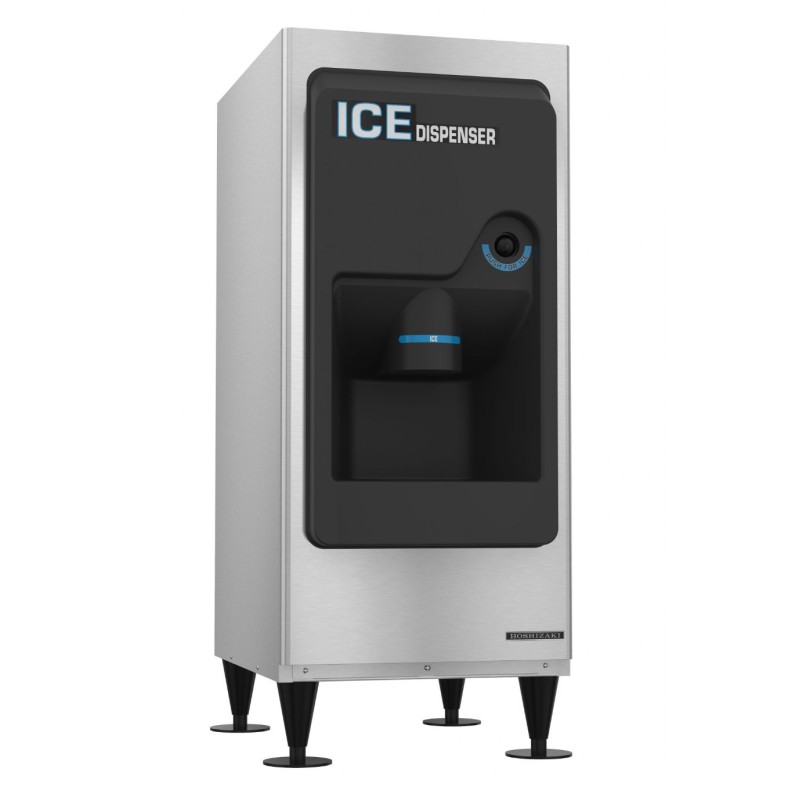

DB 130H Commercial Ice Dispenser with 130 lb Storage Bin – Push Button / Coin Operated
The DB 130H Ice Dispenser is a high-performance, commercial-grade solution designed for hotels, motels, and hospitality environments that require efficient and hygienic ice dispensing. Built to pair seamlessly with KM-320, KM-515, and KM-650 series ice makers, this unit supports daily ice production ranging from 352 to 680 lbs, ensuring a steady supply for high-demand operations.
Featuring a durable insulated polyethylene-lined storage bin with a 130 lb capacity, the DB 130H maintains ice quality while minimizing melt. Its advanced single auger agitator system delivers smooth and consistent dispensing of individual ice cubes at a rate of 20 lbs per minute, reducing waste and ensuring user convenience.
Constructed with a stainless steel auger and enhanced with antimicrobial protection, this dispenser prioritizes hygiene and longevity. The unit offers flexible operation with push-button dispensing and optional coin or key card mechanisms, making it ideal for both self-service and controlled-use environments.
With ADA-compliant dispensing access, robust polyurethane insulation, and a compact footprint, the DB 130H is engineered for reliability, efficiency, and ease of maintenance in commercial settings.
Specifications
- Model: DB 130H
- Ice Storage Capacity: 130 lbs
- Compatible Ice Makers: KM-320, KM-515, KM-650 Series
- Ice Production Compatibility: 352–680 lbs per 24 hours
- Dispensing Rate: 20 lbs per minute
- Dispensing System: Single Auger Agitator
- Operation Type: Push Button (Standard), Coin/Key Card (Optional)
- Material: Polyethylene-lined bin with stainless steel auger
- Insulation: Foamed-in-place polyurethane
- Antimicrobial Protection: H-GUARD Plus
- Electrical: 115V / 60Hz / 1 Phase
- Connection Type: Hardwired (no plug included)
- Motor: 60W gear motor, 1.4 Amps
- Drain Connection: 3/4″ FPT
- Dimensions: 22″ W x 30″ D x 53″ H
- Weight: 215 lbs
- Legs: 6″ painted flange legs
- Clearance Requirement: Minimum 6″ on rear and sides
- Compliance: ADA compliant dispensing area
- Installation Type: Top-mounted ice maker compatible (sold separately)
Key Features
- High-capacity 130 lb insulated ice storage bin
- Compatible with KM series cubers for flexible installation
- Fast dispensing at 20 lbs per minute for high-demand usage
- Unique auger system ensures clean, individual cube dispensing
- Push-button operation with optional coin or key card control
- Durable stainless steel auger and agitator components
- Built-in antimicrobial protection for enhanced hygiene
- ADA-compliant design for accessibility
- Energy-efficient gear motor operation
- Ideal for hotels, motels, and commercial hospitality spaces
