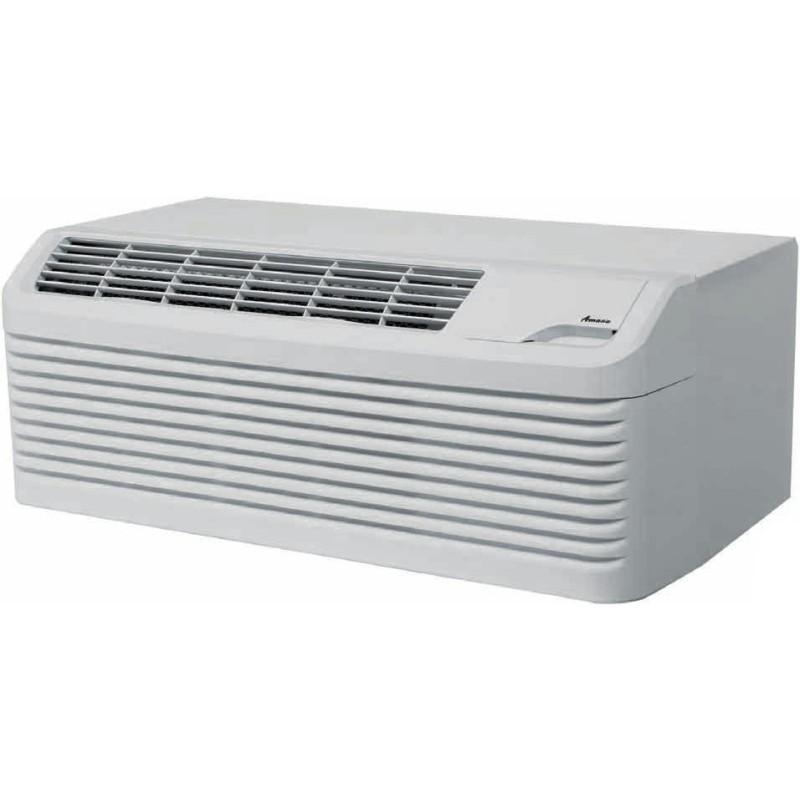

Amana PTAC 9,000 BTU H.P. PTH093G35AXXX

Product Information:

• Brand: Amana
• Series: DigiSmart
• Model: PTH093G35AXXX

9,000 BTU Packaged Terminal Air Conditioner with 8,300 BTU Heat Pump, Electric Heat Backup, 11.5 EER, R410A Refrigerant, 2.2 Pts/Hr Dehumidification and 230/208 Volts

• Width: 42 Inch
• Depth: 21 1/2 Inch
• Height: 16 1/16 Inch
• Cooling Capacity (BTU): 9,000 BTU
• Heating Capacity (BTU): 8,300 BTU
• CFM Room Circulation: 360 CFM
• Chassis Type: Thru the Wall
• Wall Sleeve Included: No
• Control Type: Digital
• Remote Control Included: No
• Plug Type: 6-20P

Operation

• 9,000/8,900 BTUH
• 230/208 Volts
• 3.5 kW Electric Heat
• 11.5/11.5 EER
• 3.4/3.4 COP
• 8,300/8,100 BTUH Reverse-Cycle Heating

Specifications

• Voltage:  230/208 Volts
• Capacity: 9,000 BTU/h
• Amps:  4.2/4.2 Amps
• Watts:  785 Watts
• EER:  11.5/11.5
• Min. Circuit Amps: 5.1 Amps
• CFM (Cool/Wet Coil) - High: 330 CFM
• CFM (Cool/Wet Coil) - Low:  245 CFM
• CFM (Dry Coil) - High:  360 CFM
• CFM (Dry Coil) - Low:  270 CFM
• Ventilated Air, CFM (Fan Only): 65 CFM
• Ventilated Air, CFM (Comp and Fan):40 CFM
• Dehumidification:  2.2 Pints/Hr.

Electric Heat Performance

• Electric Heater Size:  3.5 kW
• No. Of Stages:  1
• Nominal Heating:12,000/9,900 BTU/h
• Total Watts:  3,570/2,935 Watts
• Total Amps:  15.5/14.1 Amps
• Min. Circuit Ampacity:19.5 amps
• MOD:  20 Amps
• Power Cord:6-20P

Reverse-Cycle Performance

• Heating Capacity: 8,300/8,100 BTU/h
• Amps:  4.2/4.2 Amps
• Watts:  715/700 Watts
• COP:  3.4/3.4
• CFM (Dry):360 CFM

Dimensions and Weights

• Overall Width:  42"
• Overall Width - Chassis:  40"
• Overall Depth:  21 1/2"
• Overall Depth - Wall Sleeve:  14 1/8"
• Overall Height:  16 1/16"
• Net Weight:  112.0 Lbs.
• Ship Weight:127.0 Lbs.

Features Overview

Energy Efficiencies

• With EERs up to 11.7 and COPs up to 3.4, their unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Quiet Operation

• Their PTAC has been redesigned to be the quietest PTAC they've ever built.
• The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.
• Two fan motors (indoor/outdoor).
• Indoor tangential fan for quiet operation.
• STC of 28.

Assembled In The USA For 30 Years

• Assembled at their plant in Fayetteville, TN, using Goodman resources including engineering, production, and testing.

Increased Dehumidification Capacity

• Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons.
• As a result, guests feel more comfortable at higher temperatures, thus reducing cooling costs.

Seven-Button Touch Pad

• Provides complete control to guests for in-room comfort while maintaining energy efficiency.

Five-Year Limited Warranty

• Enjoy one of the most comprehensive warranties in the industry: First Year: parts and labor.
• Second through fifth years: parts and labor on certain sealed system components.
• Second through fifth years: on certain functional parts only.
• For complete warranty details, visit www.amana-ptac.com.
• 100% Run Tested
• All units are 100% run tested at their plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse.
• 7-5/8" Unit Front Depth
• Enhance valuable room space with their slim unit front, which has a sleek 7-5/8" depth, one of the shallowest silhouettes in the industry today.
• In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw.

Removable Condenser Shroud

• Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.

Easy Pull-Out Filters

• Their filters are washable and easy to maintain.

Filter Dryer for Sealed System Refrigerant

• Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

Front Desk Control

• Each unit comes equipped with the DigiSmart control and energy management software.
• With Digi-Smart using the optional RF Antennae, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics.
• Amana brand PTACs also have a low-voltage interface capability with a field-supplied front-desk ON/OFF switch.

Room Freeze Protection

• When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

Easy-to-Use Controls

• No complex controls to confuse your guests and create phone calls for your manager.
• Controls are easy to read, understand, and activate.
• Their new 7-button control panel provides guests with complete control of the unit for their in-room comfort while maintaining overall energy efficiency.
