5001
SKU : LOG5001

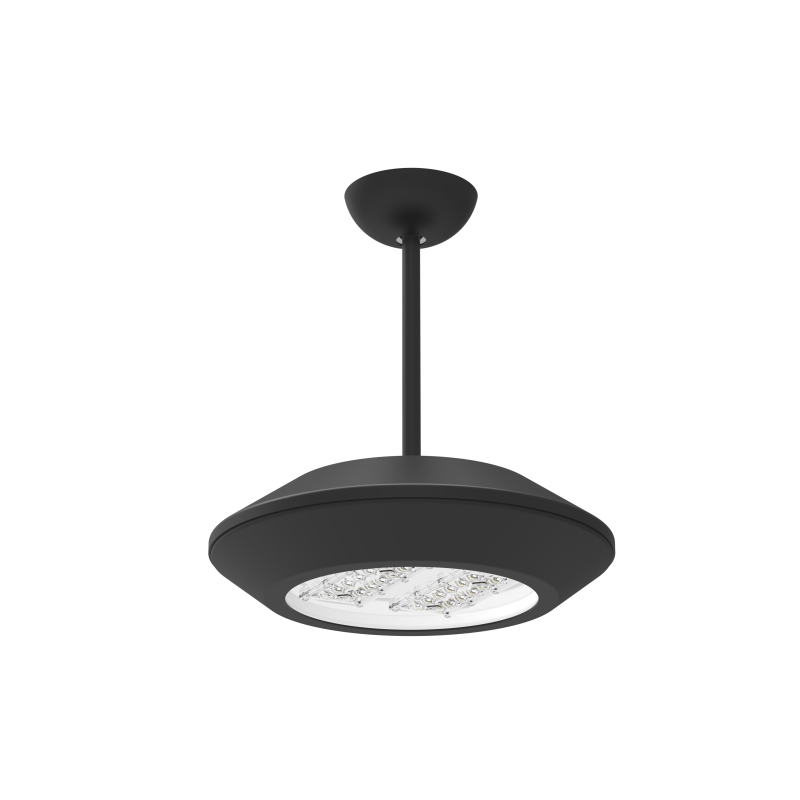

Ceiling/Pendant Mount5001 is perfect for illuminating interior locations such as: parking garages, canopies, and industrial/commercial spaces. This garage light fixture is designed for wet locations and includes a wide light distribution.-10 year / 100,000hrs Limited Warranty.
- Housing is formed with aluminum material
- Silicone Gasket to provide IP65 Protection
- 3mils Powder Coat (various colors available.)
- Clear Optic System
- Mounting: Mounting Directly Over a 4Ë “J” Box on Ceiling /Pendant Mount 12”, 24” and 36” Long Stem.
Cat# :5001 (5001)
Watts :
- 20W (20CLED)
- 30W (30CLED)
- 40W (40LED)
- 60W (60LED)
- 70W (70LED)
- 3000K (3K)
- 4000K (4K)
- 5000K (5K)
Finish :
- BRONZE (BRZ)
- GRAPHITE (GPH)
- BLACK (BLK)
- WHITE (WH)
- Custom (CST)

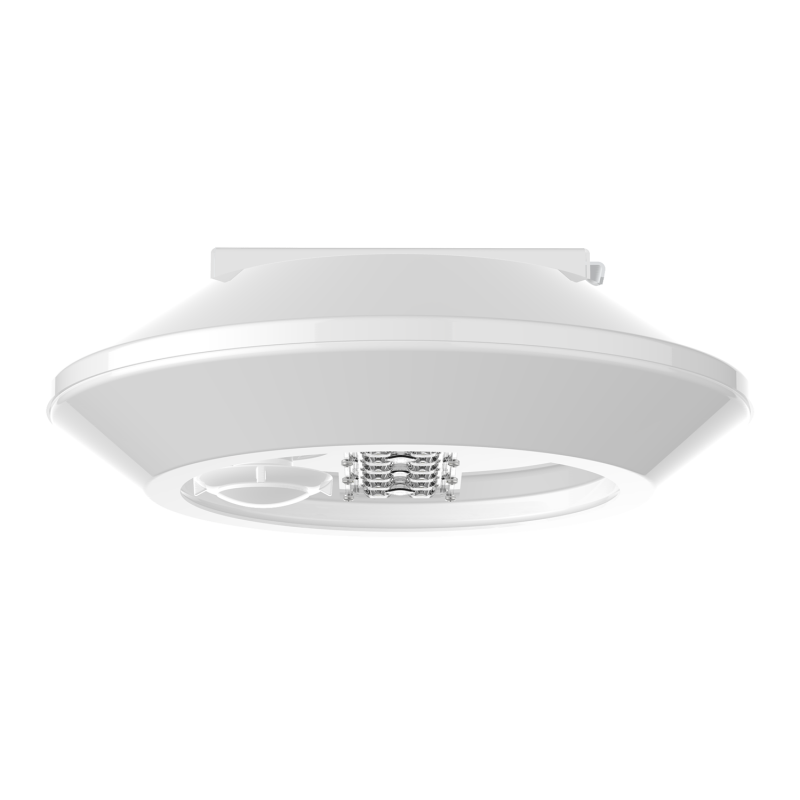

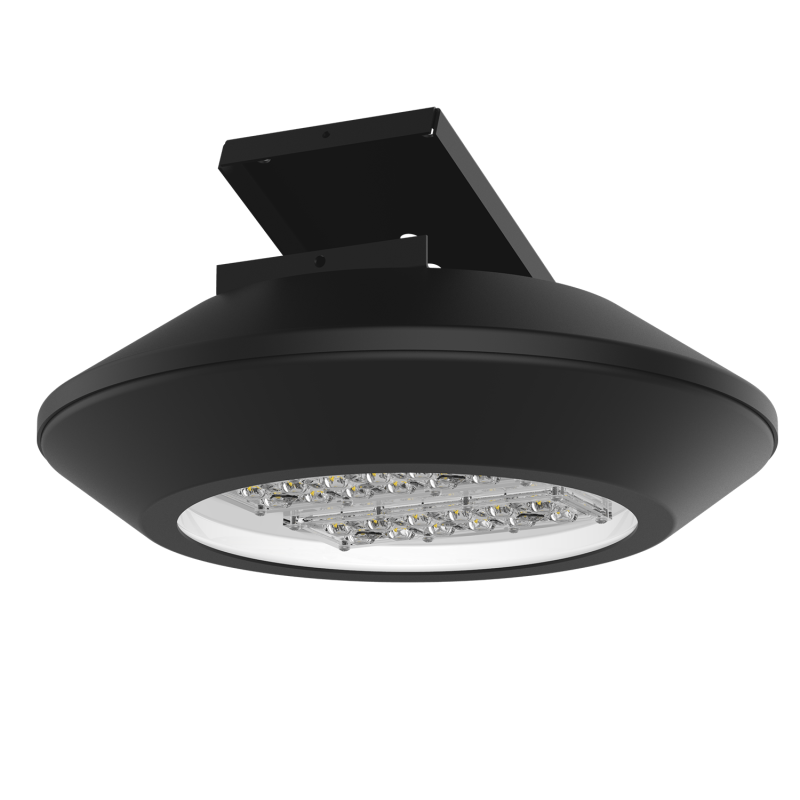

- Ceiling Mount (CM)

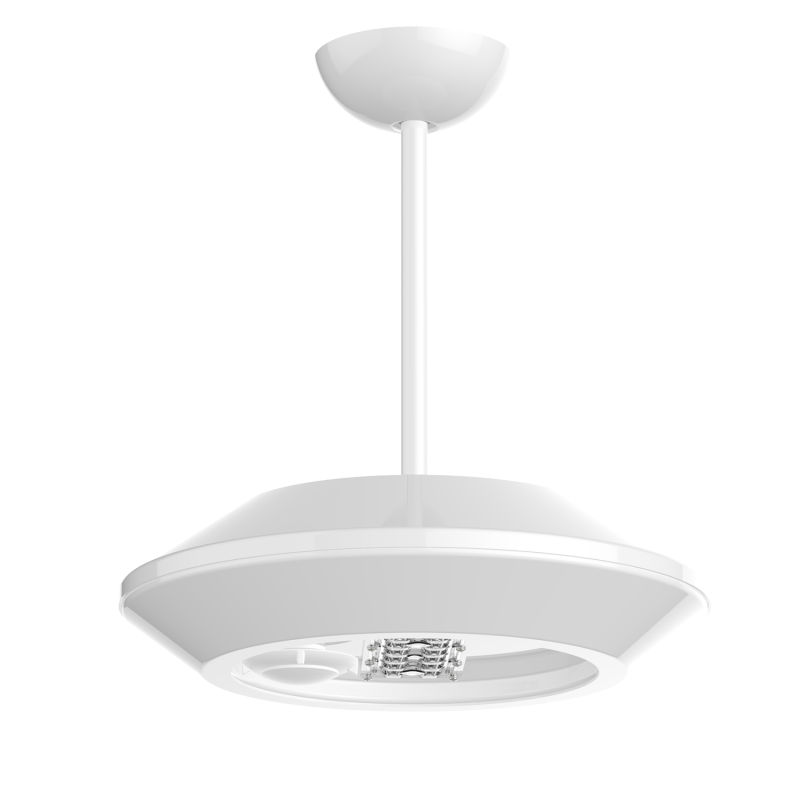

- Pendant Mount
- 12" (pm12)
- 24" (pm24)
- 36" (pm36)
- Motion Sensor (OCC)
- Button Photo Cell (PC)
- EMR. Battery (EMR)
- Wireless Control (WC)
Cat# : 5001-CM
- A : 16" 1/8
- B : 5" 1/4
- EPA : 0.53
- A : 16" 1/8
- B : 5" 1/4
- C : 12
- EPA : 0.6
- A : 16" 1/8
- B : 5" 1/4
- C : 24
- EPA : 0.67
- A : 16" 1/8
- B : 5" 1/4
- C : 36
- EPA : 0.74
- Input Power : 35W
- Lumen Output : 5,222
- LPW : 174
- Color Temp (CCT) : 5000K
- CRI : 70+
- Input Voltage : 120-277V
- Input Frequency : 50/60HZ
Cat# : 5001-CM-40CLED
- Input Power : 45W
- Lumen Output : 6,492
- LPW : 162
- Color Temp (CCT) : 5000K
- CRI : 70+
- Input Voltage : 120-277V
- Input Frequency : 50/60HZ
Cat# : 5001-CM-50CLED
- Input Power : 55W
- Lumen Output : 7,320
- LPW : 146
- Color Temp (CCT) : 5000K
- CRI : 70+
- Input Voltage : 120-277V
- Input Frequency : 50/60HZ
Cat# : 5001-CM-60CLED
- Input Power : 65W
- Lumen Output : 9,340
- LPW : 155
- Color Temp (CCT) : 5000K
- CRI : 70+
- Input Voltage : 120-277V
- Input Frequency : 50/60HZ
Cat# : 5001-CM-70CLED
- Input Power : 75W
- Lumen Output : 9,986
- LPW : 142
- Color Temp (CCT) : 5000K
- CRI : 70+
- Input Voltage : 120-277V
- Input Frequency : 50/60HZ
