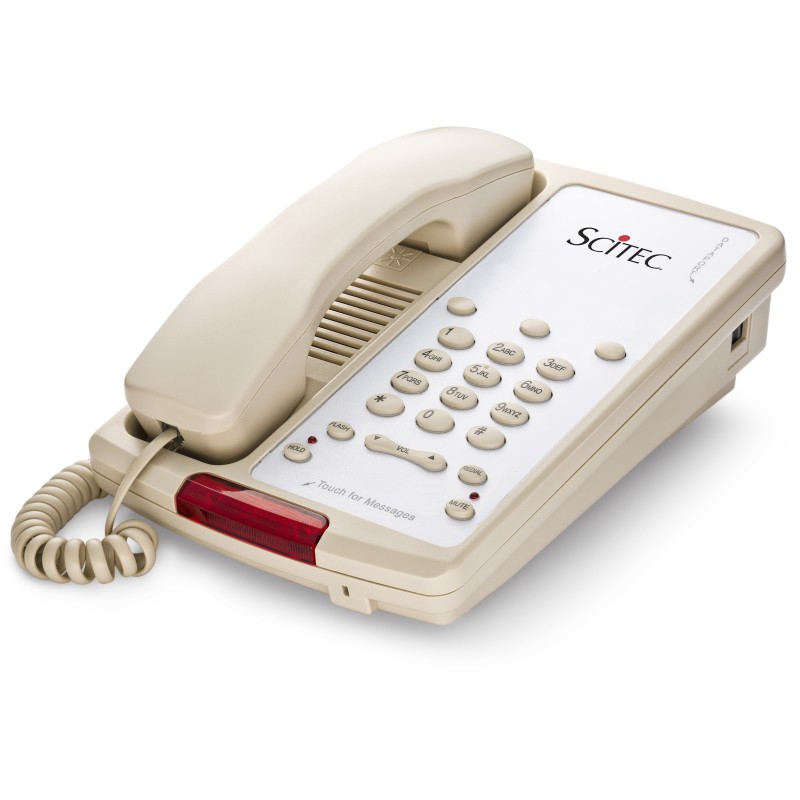

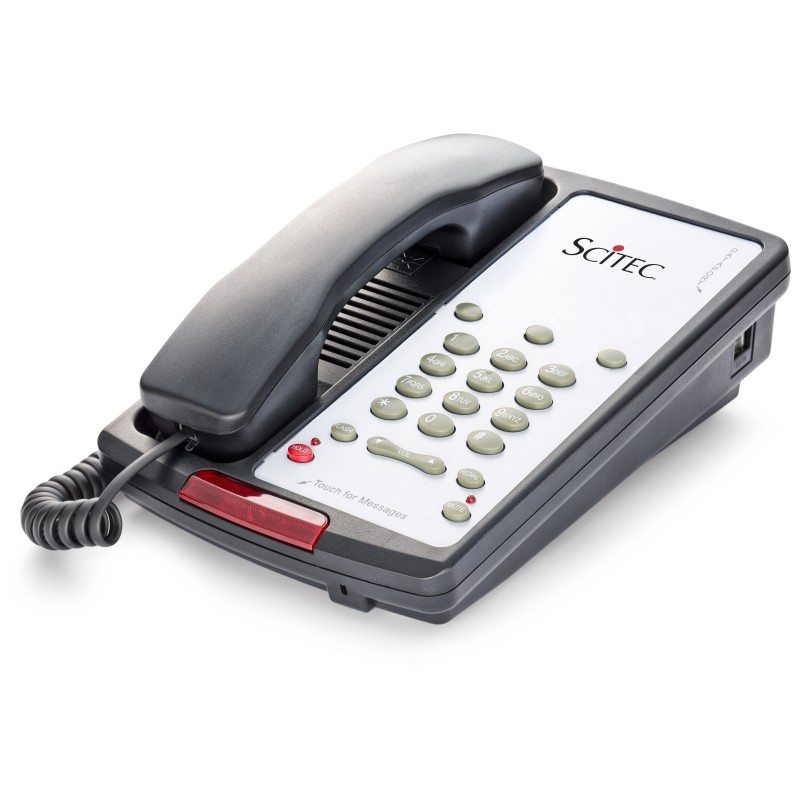

Aegis-08 telephones, the standard for economy branded hotels, now offer improved styling and more features! These rugged,
trouble-free products are all line-powered—no need for an external power plug.

Highlights :

• One and Two-Line Telephones
• Optional Professional Quality Speakerphone
• OneTouchVoice Mail RetrievalTechnology (except Aegis-LB-08, Aegis-P-08, Aegis-3-08, Aegis-5-08, & Aegis-10-08)
• 10, 5, 3, or 0 Guest Service Keys
• Compatible with All Major PABX Systems
• Soft Key Technology
• Data Port
• On-Hook Pre-Dialing on Memory Keys
• Memory Key Entry—Maximum 32 Digits
• Full Length Custom Tailored Faceplate Area
• Industrial Grade Construction with Matte Finish Design
• Non-Slip Base
• Dual NEON/LED Message Waiting Light Bar
• 4 Step Speaker and Handset Volume Control
• High/Low Ringer Volume Switch
• HAC-Compatible Handset and ADA-CompliantVolume Control
• Speaker and Mute Keys (Speakerphone Models)
• LED On/Off Indication for Hold, Mute, and Line Keys
• Desk or Wall Mountable (optional wall mount bracket not included)
• 5 Year Warranty
• Available in Ash or Black

CONFIGURATIONS :

• Single-Line Non-Speakerphone (OneTouch not available)
• Aegis-3-08 1L, 3GSK, MW 80302 (Black) / 80301 (Ash)

SPECIFICATIONS :

• Standard Colors : Black or Ash
• Faceplate Size : Full length
• Packaging : 12 per carton
• Footprint : 8.75”(222.25mm) (l) x 3.00”(76.2mm) (h) x 6.00”(152.4mm) (w)
• Weight : 2.5 lbs. (1170g)
• Line Voltage : Auto-Detect
• Line Current : 20mA-80mA
• Certifications : FCC Part 68, FCC Part 15 & UL 1459 Ref.
• Compliance : ADA/FCC Hearing Aid Compliant
• Ringer Equivalence : 0.6dB
• Handset Coil-Cord : 10 ft (3.048m)
• Line Cord : RJ14 line cord - 12 ft (3.66m)

PACKAGE CONTENTS :

• Aegis-08 Series base
• Handset
• 12-ft line cord
• 10-ft coil cord
• Faceplate
• Plastic overlay
